NANOTEC ELECTRONIC N5 - LED Signaling

Technical Manual N5 (CANopen)
3 Technical details and pin assignment
3.5 LED signaling

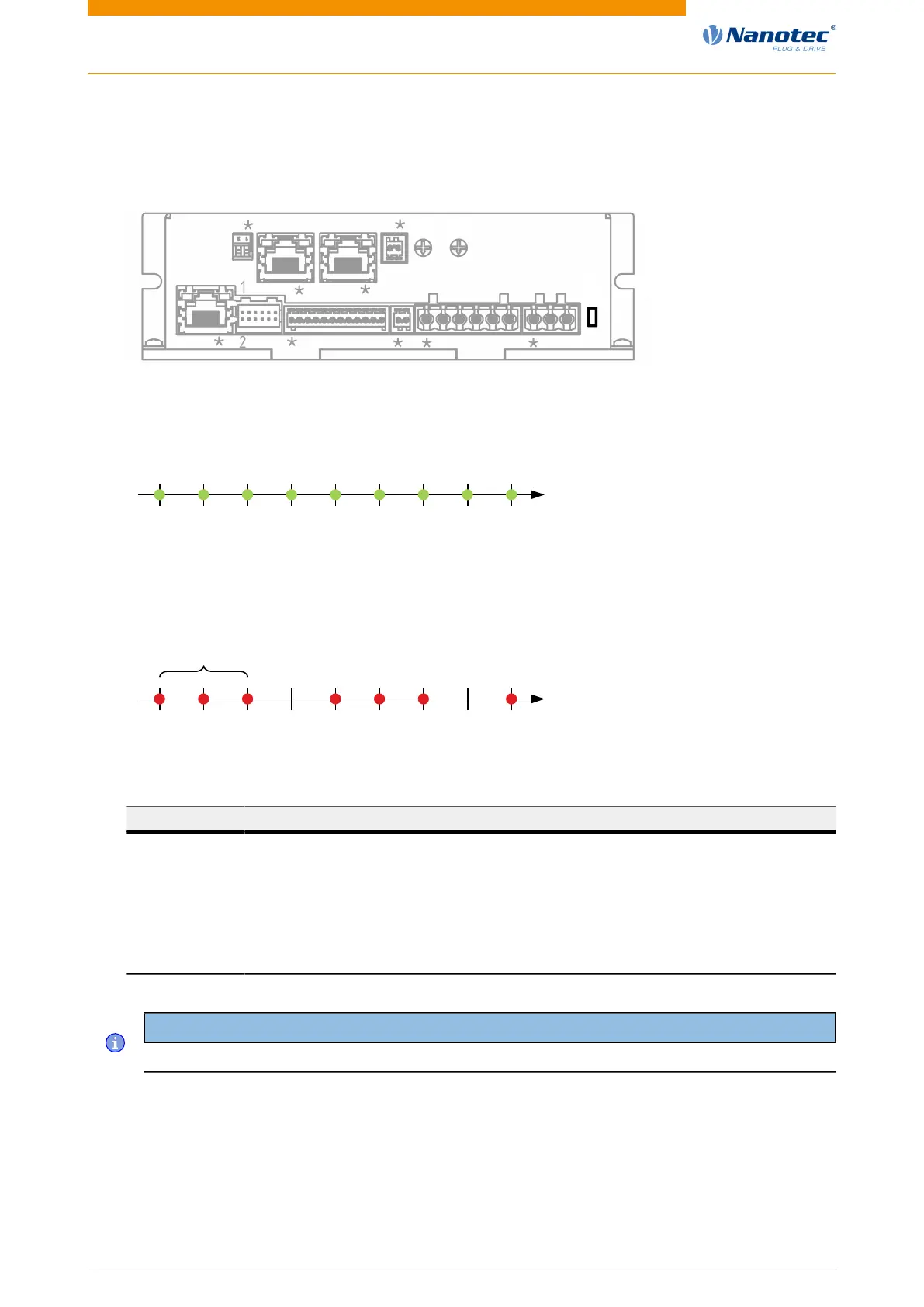

3.5.1 Power LED
X7
X5X1 X2 X3 X4 X6
L1
X6
S1
X8X9S3
S2
Normal operation
In normal operation, the green power LED L1 flashes briefly once per second.
1s 2s 3s 4s 5s 6s 7s 8s 9s
Case of an error
If an error has occurred, the LED turns red and signals an error number. In the following figure, the
error number 3 is signaled.
1s 2s 3s 4s 5s 6s 7s 8s 9s
3x
The following table shows the meaning of the error numbers.
Flash rate Error
1 General
2 Voltage
3 Temperature
4 Overcurrent
5 Controller
6 Watchdog-Reset
Note
For each error that occurs, a more precise error code is stored in object 1003
h
.
