NAPCO x255 - Proximity Card User Management (ACM); User Options for ACM; ACM Area Assignments

X GEM-X255 Programming Instructions
L NAPCO Security Systems

Page 12
WI1092E 10/05

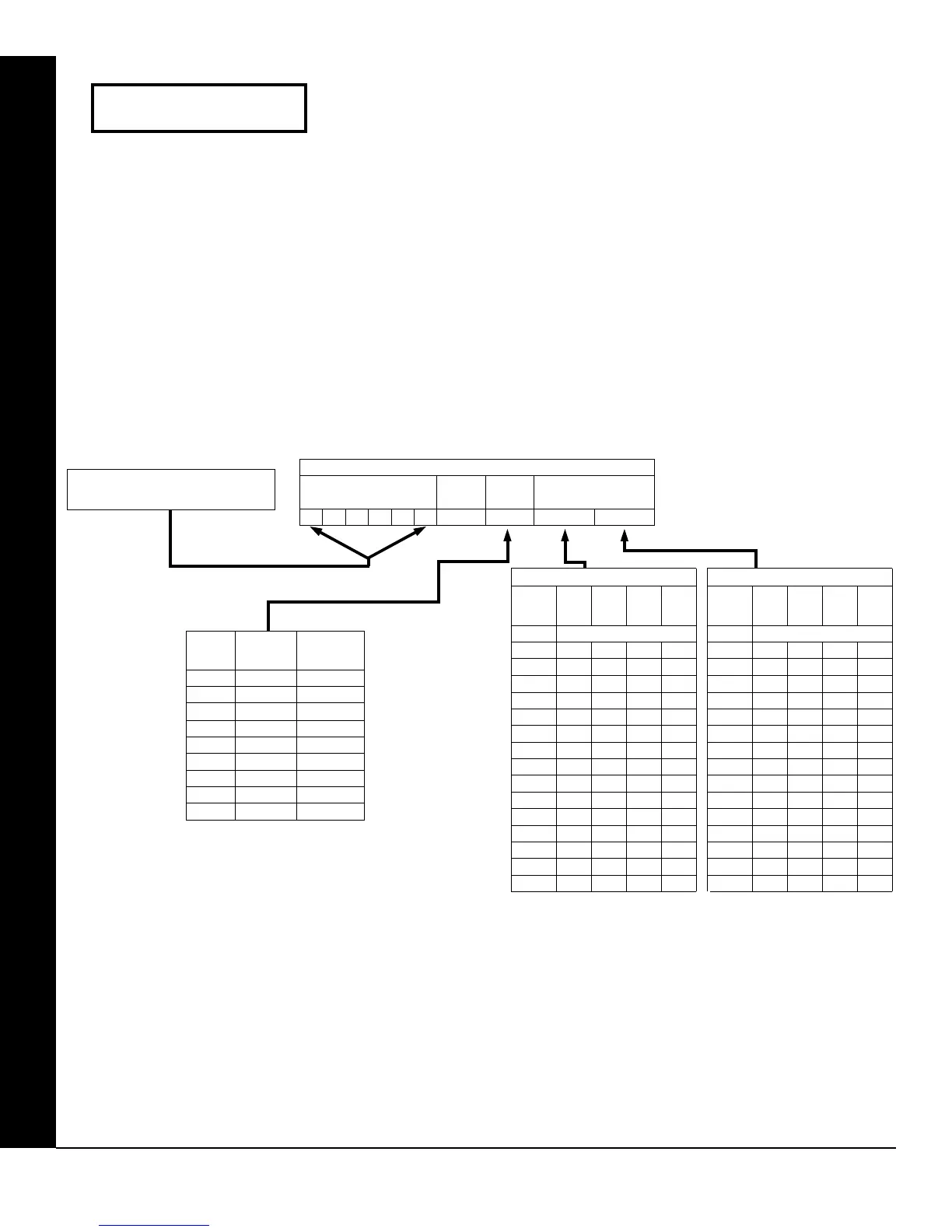

USER OPTIONS
USER CODE
(UP TO 6 DIGITS)
USER
LEVEL
ACM AREA
DATA
ENTRIES
ACCESS
LEVEL
CODE
TYPE
blank (•) 0 NONE
1 1 NONE
2 2 NONE
4 0 ARM/DISARM
5 1 ARM/DISARM
6 2 ARM/DISARM
8 0 ARM ONLY
9 1 ARM ONLY
0 2 ARM ONLY
Note: “Y” indicates option is enabled.
ACM AREA
DATA
ENTRIES
A1 A2 A3 A4
blank (•)
1 Y
2 Y
3 Y Y
4 Y
5 Y Y
6 Y Y
7 Y Y Y
8 Y
9 Y Y
0 Y Y
B Y Y Y
C Y Y
D Y Y Y
E Y Y Y
F Y Y Y Y
NONE
Note: “Y” indicates option is enabled.
ACM AREA
DATA
ENTRIES
A5 A6 A7 A8
blank (•)
1 Y
2 Y
3 Y Y
4 Y
5 Y Y
6 Y Y
7 Y Y Y
8 Y
9 Y Y
0 Y Y
B Y Y Y
C Y Y
D Y Y Y
E Y Y Y
F Y Y Y Y
NONE
Example: Enter a code of “123456”
as “123456” (from left to right).
GEM-RP1CAE2/GEM-K1CA KEYPAD EASY PROGRAM MENU
Enter Proximity Card Users (FOR ACM USE ONLY).
(Press the
R button to set cursor). See WI1221 for more information.
Enter up to 195 Proximity Cards with User Options, Access Level and ACM
Area (if necessary) for each card. Refer to the tables below and to WI1221 for
more information.
 Press the R button to set the cursor to the User Code. Use the
number buttons
1 through 9 to enter a 6 digit code. Enter the digits in the first six boxes from left to right
for each user code. Valid entries are: 0-9. Note: Press the
0 button for a zero. No blank spaces in between;
leave blank (•) any trailing boxes.
 Refer to the tables below and WI1221 for the available User Level data entries. Enter the level data in the right
digit. Leave blank (•) in the left digit. Note: For entries greater than 9, press the
G1 buttons through the
G5 buttons for B through F, respectively.
For ACM Area, enter data for area 1-4 in the right digit and data for area 5-8 in the left digit. See table below.
Enter user code
001 123456- 6-
User# User Code
