1.2 The antenna handle
Narda IDA-3106 3
1.2 The antenna handle
The antenna handle is designed for attaching to the Narda directional
antennas, providing an ergonomic grip for the antenna. An electronic 3-axis
compass, a 20 dB preamplifier, and a button for starting measurements are
all built in to the handle. The snap fixing allows you to quickly and easily
adjust the antennas by 90° to match the polarization plane. The antenna
module used and the polarization plane are automatically detected by the
basic unit. The power supply is provided from the basic unit via the separate
data cable.

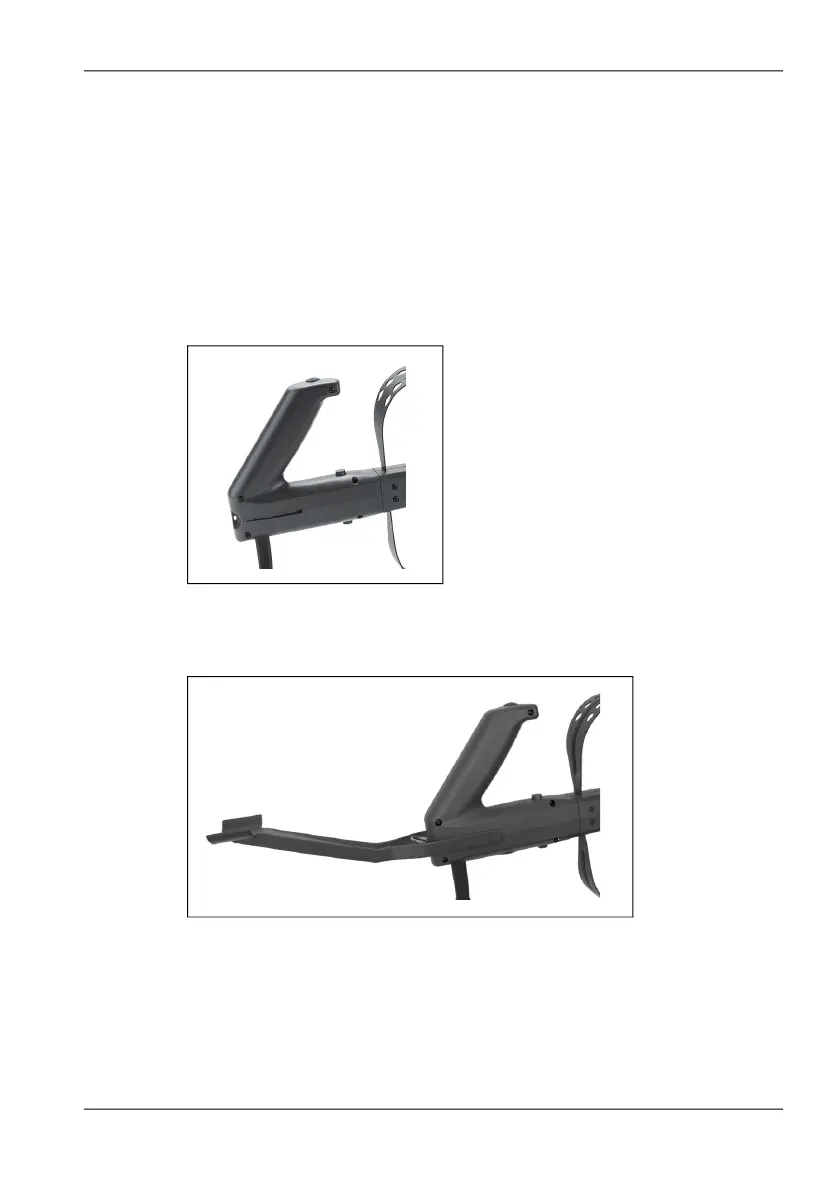

Figure 2: Antenna handle
An arm support, which simply clips on to the handle and allows effortless
long term use, is included with the handle.
Figure 3: Antenna handle with arm support
