10.2 Display overview
Narda IDA-3106 183
10.2 Display overview

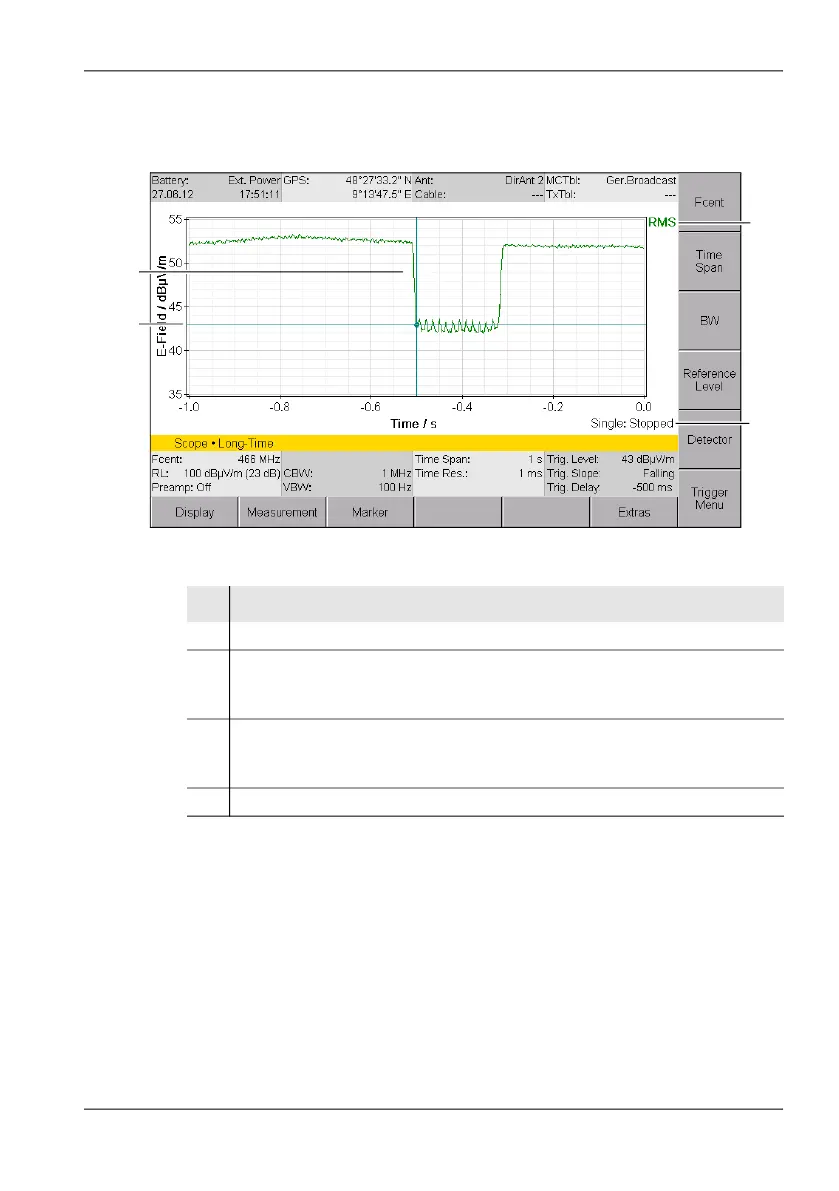

Figure 43: Time Domain (Scope) mode with activated trigger function
1
2
3
4
No. Function / Explanation
1 Display of the measured signal versus time
2 Trigger:
• horizontal line = Trigger Level
• vertical line = Trigger Delay
3 Trace / Detector (depends on the selected measurement function/ sub menu)
• Act = real-time measurement
• +Pk/RMS/-Pk = compressed values over longer measurement periods
4 Measurement “frozen” by trigger function (see Table 36 on page 194)
