9.2 Display overview
Narda IDA-3106 177
9.2 Display overview

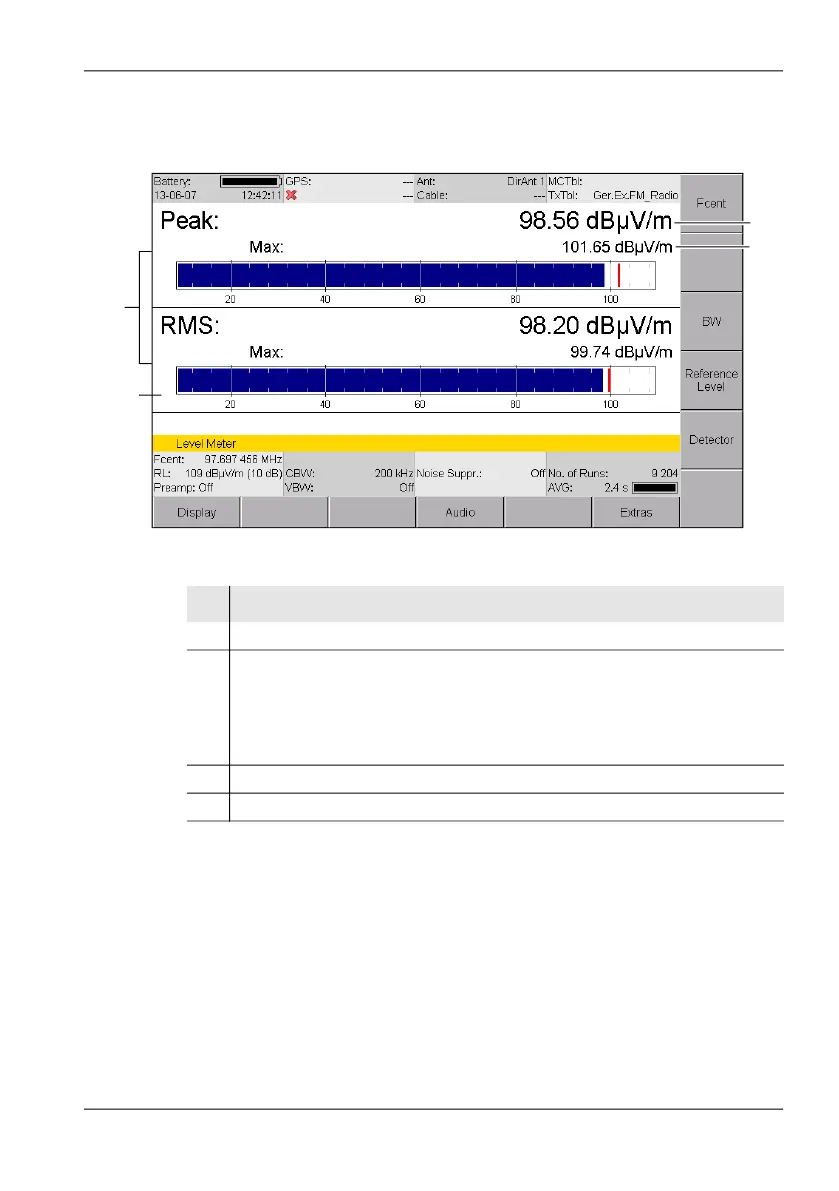

Figure 42: Level Meter mode with display of Peak and RMS.
9.2.1 Signaling the maximum level audibly
Main Menu • Settings • Beep on new Maximum
A new maximum level can also be indicated by a beeper. To do this, you must
activate the Beep on new Maximum function at Main Menu/Settings.
To activate the beeper:
See Editing device-specific settings on page 68.
1
2
3
4
No. Function / Explanation
1 Display area with selectable detector types Peak and RMS
2 Bar graph displaying the current level:
• Red line: indicates the maximum measured level
• Bar: indicates the level at the moment
Note: The maximum extent of the bar corresponds to the selected reference
level (Reference Level softkey).
3 Numerical display of current measured value
4 Numerical display of maximum measured value
To Next Page
