7.

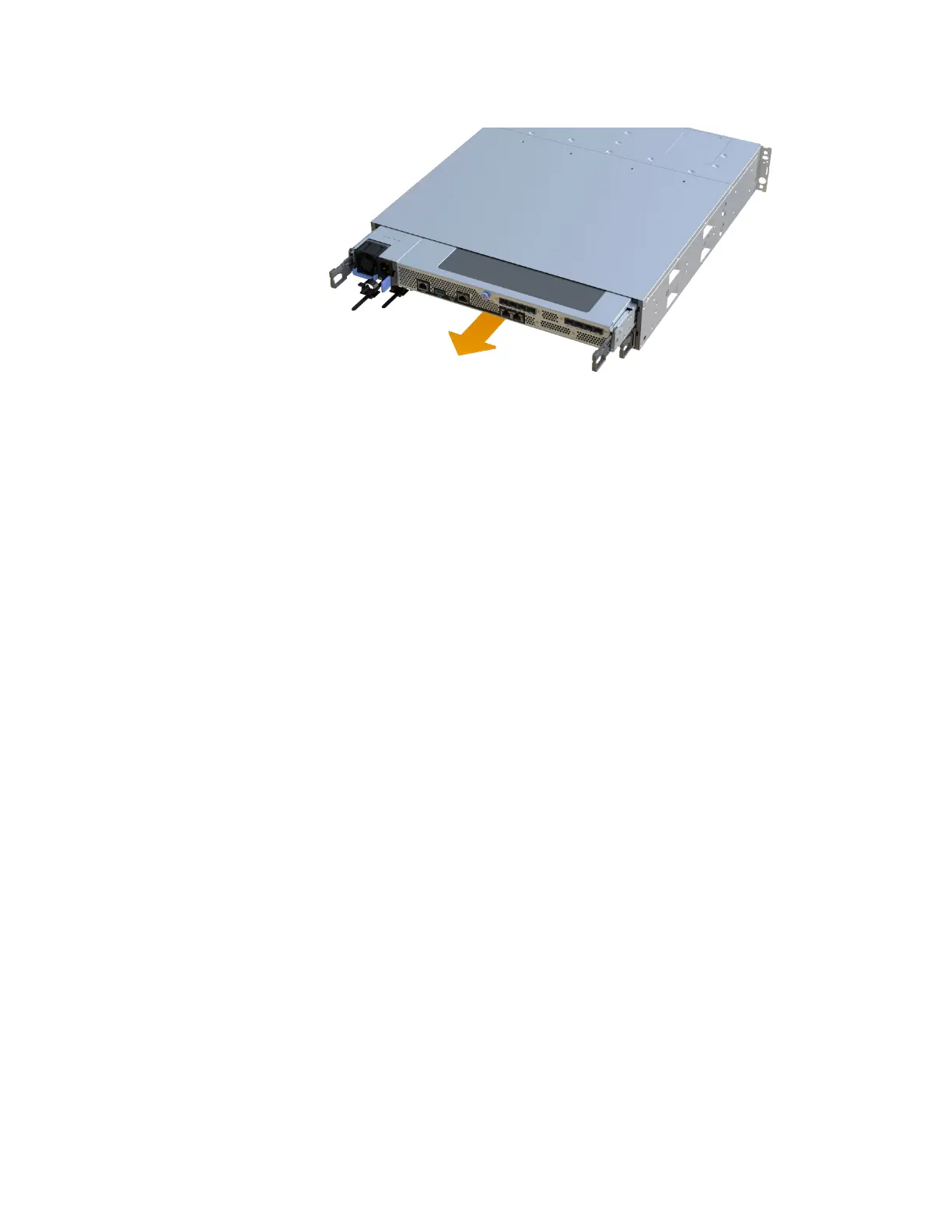

Place the controller canister on a flat, static-free surface.
After you finish
Go to
Remove DIMMs
.
Remove DIMMs
If there is a memory mismatch present, you must replace the DIMMs in your controller.
Before you begin
• You have an ESD wristband, or you have taken other antistatic precautions.
Steps
1. Remove the controller canister's cover by unscrewing the single thumbscrew and lifting the lid
open.
2. Confirm that the green LED inside the controller is off.
If this green LED is on, the controller is still using battery power. You must wait for this LED
to go off before removing any components.
3. Locate the DIMMs on your controller.
4. Note the orientation of the DIMM in the socket so that you can insert the replacement DIMM
in the proper orientation.
Note: A notch at the bottom of the DIMM helps you align the DIMM during installation.
5. Slowly push apart on the two DIMM ejector tabs on either side of the DIMM to eject the
DIMM from its slot, and then slide it out of the slot.
Maintaining EF300 and EF600 Hardware 34
