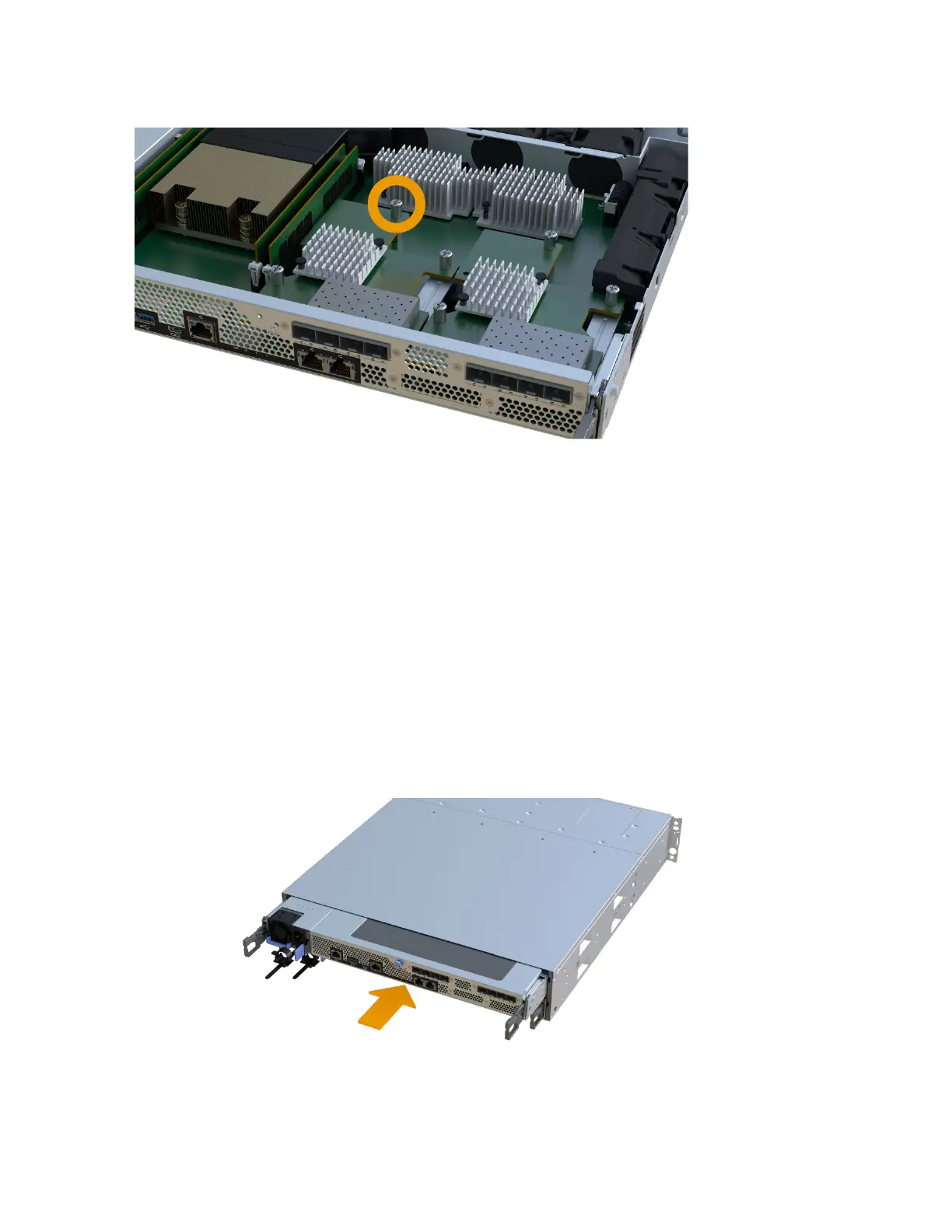

Note: The image above is an example, the appearance of your HIC may differ.
Note: Do not use a screwdriver, or you might over tighten the screws.
5. Using a #1 Phillips screwdriver, attach the HIC faceplate you removed from the original HIC
with the three screws.
After you finish
Go to
Reinstall controller canister
.
Reinstall controller canister
You reinstall the controller canister into the controller shelf after upgrading the HIC.
Steps
1. Lower the cover on the controller canister and secure the thumbscrew.
2. While squeezing the controller handles, gently slide the controller canister all the way into the
controller shelf.
Note: The controller audibly clicks when correctly installed into the shelf.
Maintaining EF300 and EF600 Hardware 63
Host interface cards
