Attention: Possible equipment damage – Be very careful not to pinch the gold ribbon
connector for the controller LEDs between the HIC and the thumbscrew.

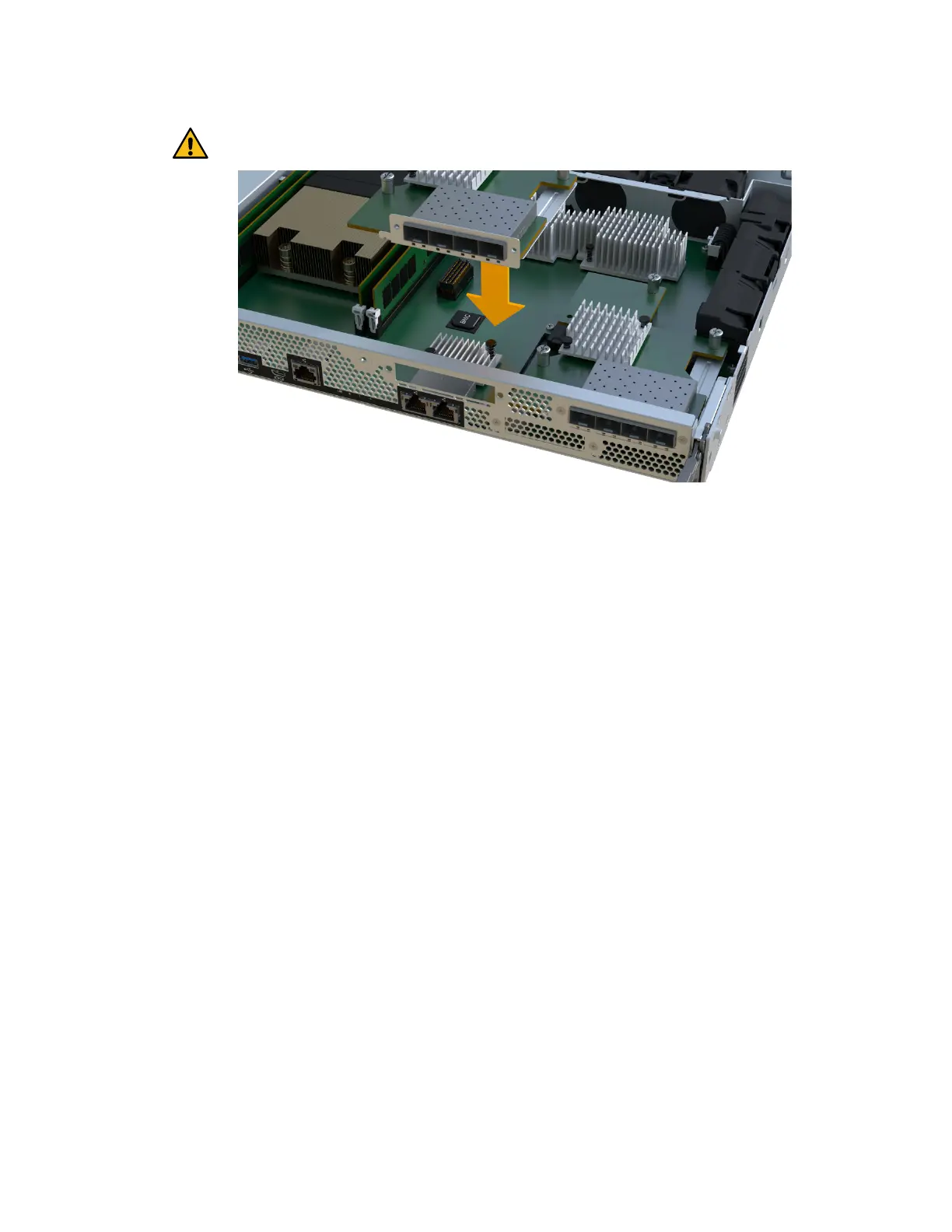

Note: The image above is an example of an EF600, the appearance of your HIC may differ.
6. Hand-tighten the HIC thumbscrew.
Do not use a screwdriver, or you might over tighten the screws.
7. Using a #1 Phillips screwdriver, attach the HIC faceplate you removed from the original
controller canister to the new controller canister with the two screws.
After you finish
Go to
Reinstall the controller canister
.
Reinstall the controller canister
You reinstall the controller canister into the controller shelf after installing the HIC.
Steps
1. Lower the cover on the controller canister and secure the thumbscrew.
2. While squeezing the controller handles, gently slide the controller canister all the way into the
controller shelf.
Note: The controller audibly clicks when correctly installed into the shelf.
Maintaining EF300 and EF600 Hardware 54
Host interface cards
