The DIMM fits tightly in the slot, but should go in easily. If not, realign the DIMM with the
slot and reinsert it.
Note: Visually inspect the DIMM to verify that it is evenly aligned and fully inserted into
the slot.

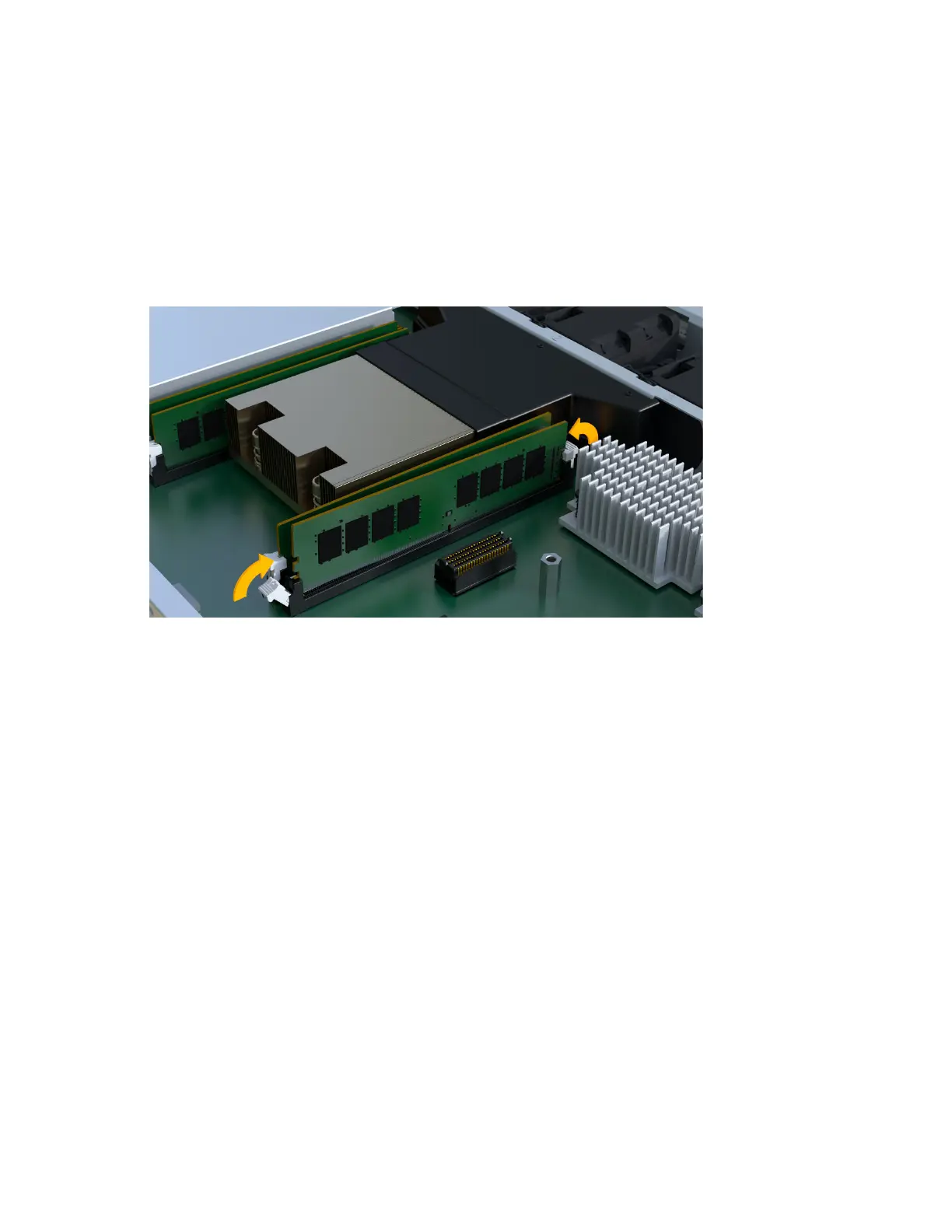

3. Push carefully, but firmly, on the top edge of the DIMM until the latches snap into place over
the notches at the ends of the DIMM.
Note: DIMMs fit tightly. You might need to gently press on one side at a time and secure
with each tab individually.
After you finish
Go to
Reinstall controller canister
.
Reinstall controller canister
After installing the new DIMMs, you reinstall the controller canister into the controller shelf.
Steps
1. Lower the cover on the controller canister and secure the thumbscrew.
2. While squeezing the controller handles, gently slide the controller canister all the way into the
controller shelf.
Note: The controller audibly clicks when correctly installed into the shelf.
Maintaining EF300 and EF600 Hardware 36
