NETGEAR DGN2200M User Manual

Internet Configuration
18
N300 Wireless ADSL2+ Modem Router DGN2200M Mobile Edition

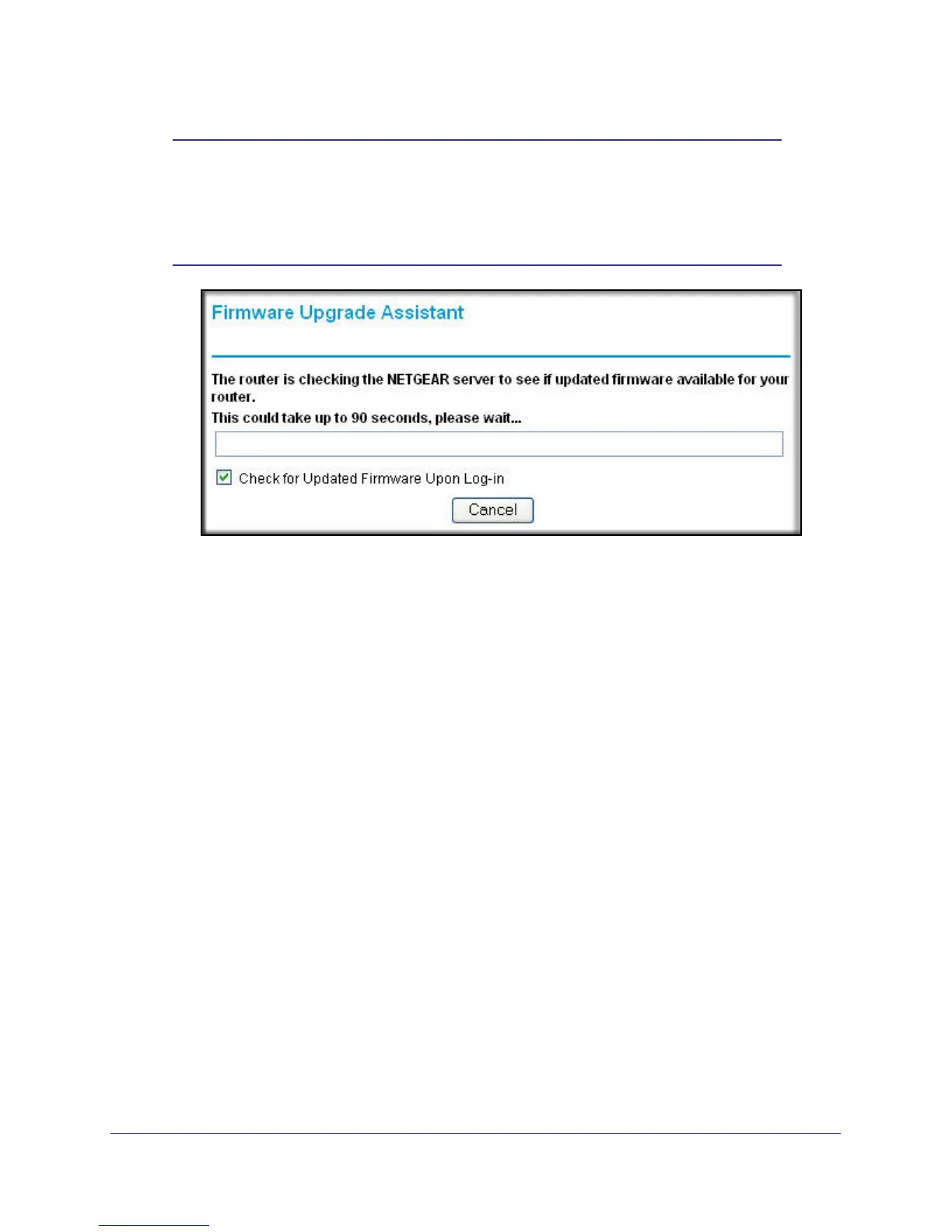

Note: You can disable this automatic checking and updating feature during
future logins by clearing the Check for Updated Firmware Upon
Log-in check box, but NETGEAR recommends that you keep this
feature enabled to ensure that your router is using the latest updated
firmware.
• Router Status screen. The Router Status screen displays the current router
connection status. See Router Status and Usage Statistics on page 56.
4. You can use different methods to configure your router.
• Select Setup Wizard from the router menu to set up your Internet connection and
wireless network configuration. See Use the Setup Wizard after Installation on
page 19.
• You can manually configure the router settings. See Manually Configure Your Internet
Settings on page 21.

NETGEAR DGN2200M Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Security features	IDS, DoS
Dimensions (WxDxH)	173 x 128 x 33 mm
Minimum system requirements	IE 5.0+
Compatible operating systems	Windows 7 Windows Vista Windows XP Windows 2000 Mac OS
WLAN data transfer rates supported	11, 54, 150, 300 Mbit/s
DHCP client	-
Supported network protocols	TCP/IP, DNS
Antennas quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CEC, RoHS, WEEE
Cables included	Phone (RJ-11), USB
Product color	Black
LED indicators	LAN, Power, USB, WLAN, Y

Weight and Dimensions

Weight	300 g
