Multi-Point Bridge
Multi-point bridge mode allows a router to bridge to multiple peer access points
simultaneously. Wireless client associations are disabled. Only wired clients can be
connected. Multi-point bridge mode configuration includes the following steps:
1. Enter the MAC addresses of the other access points in the fields provided.
2. Set the other bridge-mode access points to point-to-point bridge mode, using the MAC
address of this DGN2200M Mobile Edition as the remote MAC address.
3. Use wireless security to protect this traffic.
Internet
LAN Segment 1
Computers
Computers
Hub or switch
AP 3
AP 2
192.168.0.1
Point-to-point
bridge mode
bridge mode
Point-to-point
AP 1
DGN2200M
Computers
Hub or switch
LAN Segment 3
LAN Segment 2

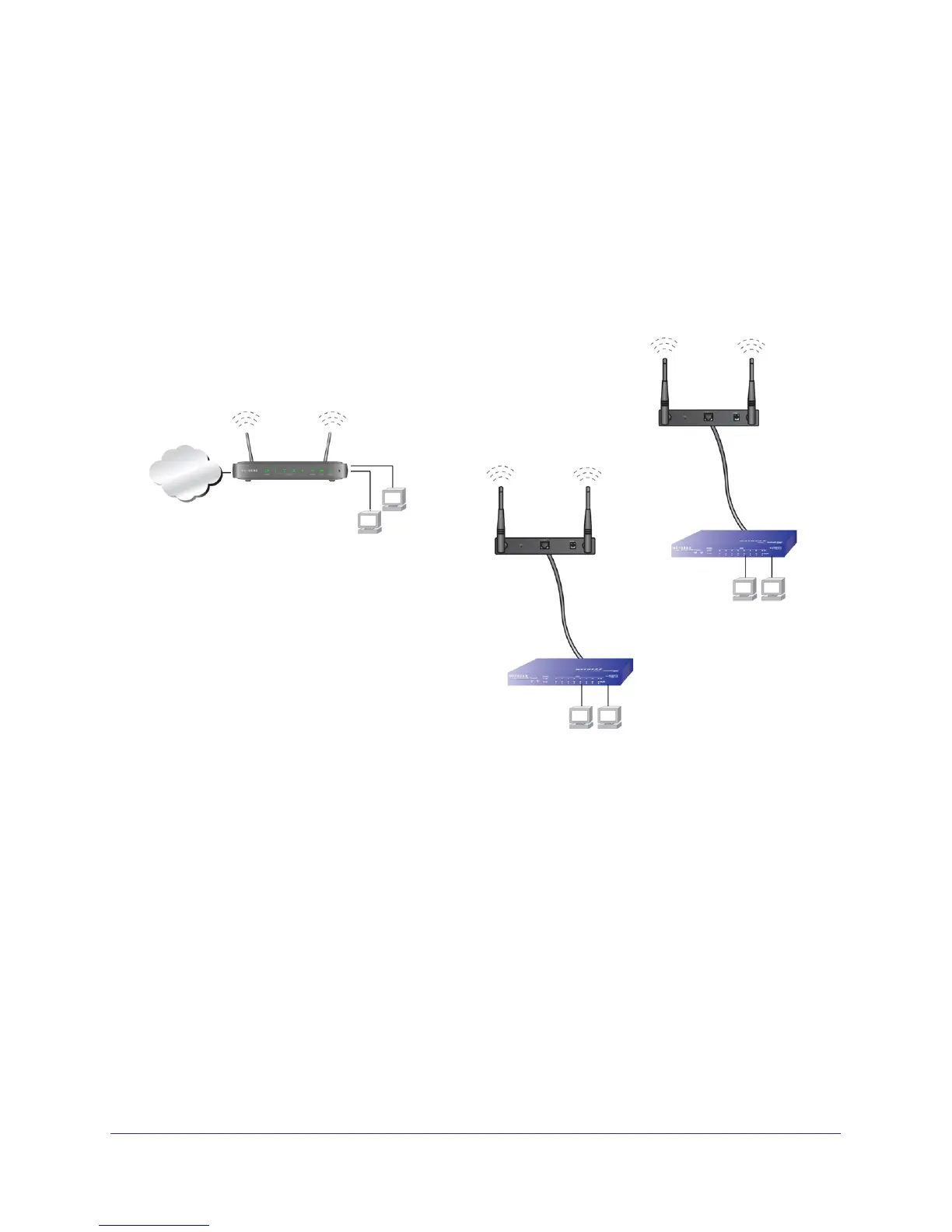

Figure 2. Multi-point bridge mode
 To set up the multi-point bridge configuration:
1. Configure the operating mode of the wireless modem routers.
• Because it is in a central location, configure the DGN2200M Mobile Edition wireless
modem router (AP 1) on LAN segment 1 in point-to-multi-point bridge mode, and
enter the MAC addresses of AP 2 and AP 3 in the Remote MAC Address 1 and
Remote MAC Address 2 fields.
• Configure the access point (AP 2) on LAN segment 2 in point-to-point bridge mode
with the remote MAC address of the DGN2200M Mobile Edition wireless modem
router.
• Configure the access point (AP 3) on LAN segment 3 in point-to-point bridge mode
with the remote MAC address of the DGN2200M Mobile Edition wireless modem
router.
2. Disable the DHCP server on AP 2 and AP 3. AP 1 will then be the DHCP server.
3. Verify the following for all access points:

NETGEAR DGN2200M Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Security features	IDS, DoS
Dimensions (WxDxH)	173 x 128 x 33 mm
Minimum system requirements	IE 5.0+
Compatible operating systems	Windows 7 Windows Vista Windows XP Windows 2000 Mac OS
WLAN data transfer rates supported	11, 54, 150, 300 Mbit/s
DHCP client	-
Supported network protocols	TCP/IP, DNS
Antennas quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CEC, RoHS, WEEE
Cables included	Phone (RJ-11), USB
Product color	Black
LED indicators	LAN, Power, USB, WLAN, Y

Weight and Dimensions

Weight	300 g
