NETGEAR DGN2200M User Manual

Internet Configuration
26
N300 Wireless ADSL2+ Modem Router DGN2200M Mobile Edition

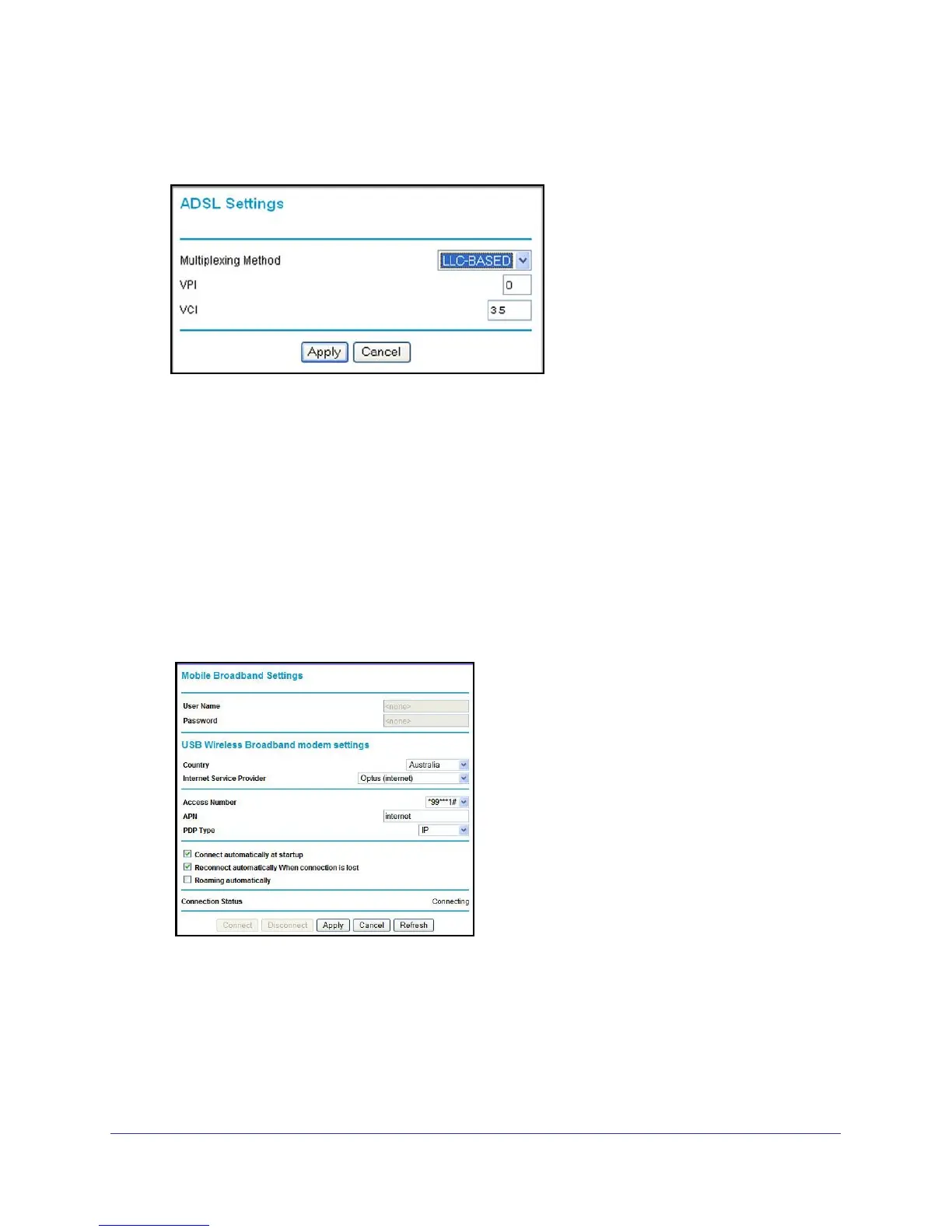

 To manually specify ADSL settings:
1. From the main menu, select ADSL Settings, and the ADSL Settings screen displays.
2. In the Multiplexing Method drop-down list, select LLC-based or VC-based.
3. For the VPI, type a number between 0 and 255. The default is 8.
4. For the VCI, type a number between 32 and 65535. The default is 35.
5. Click Apply.
Mobile Broadband Settings
 To manually configure your mobile broadband Internet settings:
1. Log in to the router as described in Log In to Your Wireless-N Modem Router on
page 17.
2. From the main menu, select Mobile Broadband Settings.
3. Adjust the settings as needed based on your Internet connection. The fields in this screen
depend on the network and are described in Table 4.
4. The following buttons are available:
• Connect. Manually connect to the network.
• Disconnect. Disconnect from the current network.
• Apply. Apply the changes that you made.

NETGEAR DGN2200M Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Security features	IDS, DoS
Dimensions (WxDxH)	173 x 128 x 33 mm
Minimum system requirements	IE 5.0+
Compatible operating systems	Windows 7 Windows Vista Windows XP Windows 2000 Mac OS
WLAN data transfer rates supported	11, 54, 150, 300 Mbit/s
DHCP client	-
Supported network protocols	TCP/IP, DNS
Antennas quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CEC, RoHS, WEEE
Cables included	Phone (RJ-11), USB
Product color	Black
LED indicators	LAN, Power, USB, WLAN, Y

Weight and Dimensions

Weight	300 g
