NETGEAR DGN2200M User Manual

Managing Your Network
54
N300 Wireless ADSL2+ Modem Router DGN2200M Mobile Edition

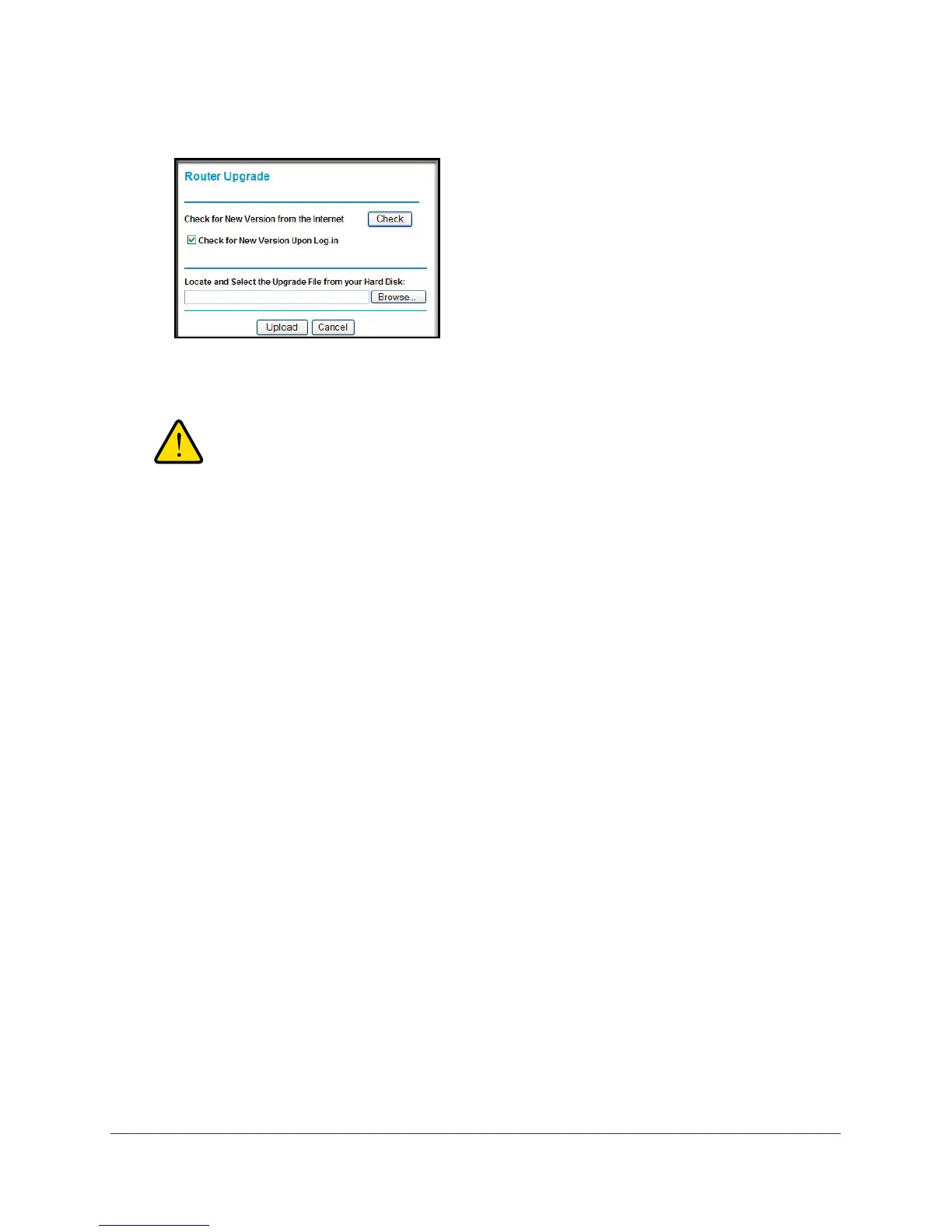

4. On the main menu, under Maintenance, select Router Upgrade.
5. Click Browse, and locate the firmware you downloaded (the file ends in .img or .chk).
6. Click Upload to send the firmware to the wireless modem router.
WARNING:
When uploading firmware to the wireless modem router, do not
interrupt the web browser by closing the window, clicking a link,
or loading a new page. If the browser is interrupted, it could
corrupt the firmware.
When the upload is complete, your wireless modem router automatically restarts. The
upgrade process typically takes about 1 minute. Read the new firmware release notes to
determine whether you need to reconfigure the wireless modem router after upgrading.
Back Up, Restore, and Erase Your Settings
The configuration settings of the wireless modem router are stored in a configuration file. This
file can be backed up to your computer, restored, or reverted to factory default settings.

NETGEAR DGN2200M Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Security features	IDS, DoS
Dimensions (WxDxH)	173 x 128 x 33 mm
Minimum system requirements	IE 5.0+
Compatible operating systems	Windows 7 Windows Vista Windows XP Windows 2000 Mac OS
WLAN data transfer rates supported	11, 54, 150, 300 Mbit/s
DHCP client	-
Supported network protocols	TCP/IP, DNS
Antennas quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CEC, RoHS, WEEE
Cables included	Phone (RJ-11), USB
Product color	Black
LED indicators	LAN, Power, USB, WLAN, Y

Weight and Dimensions

Weight	300 g
