NETGEAR DGN2200M User Manual

Advanced Configuration
83
N300 Wireless ADSL2+ Modem Router DGN2200M Mobile Edition

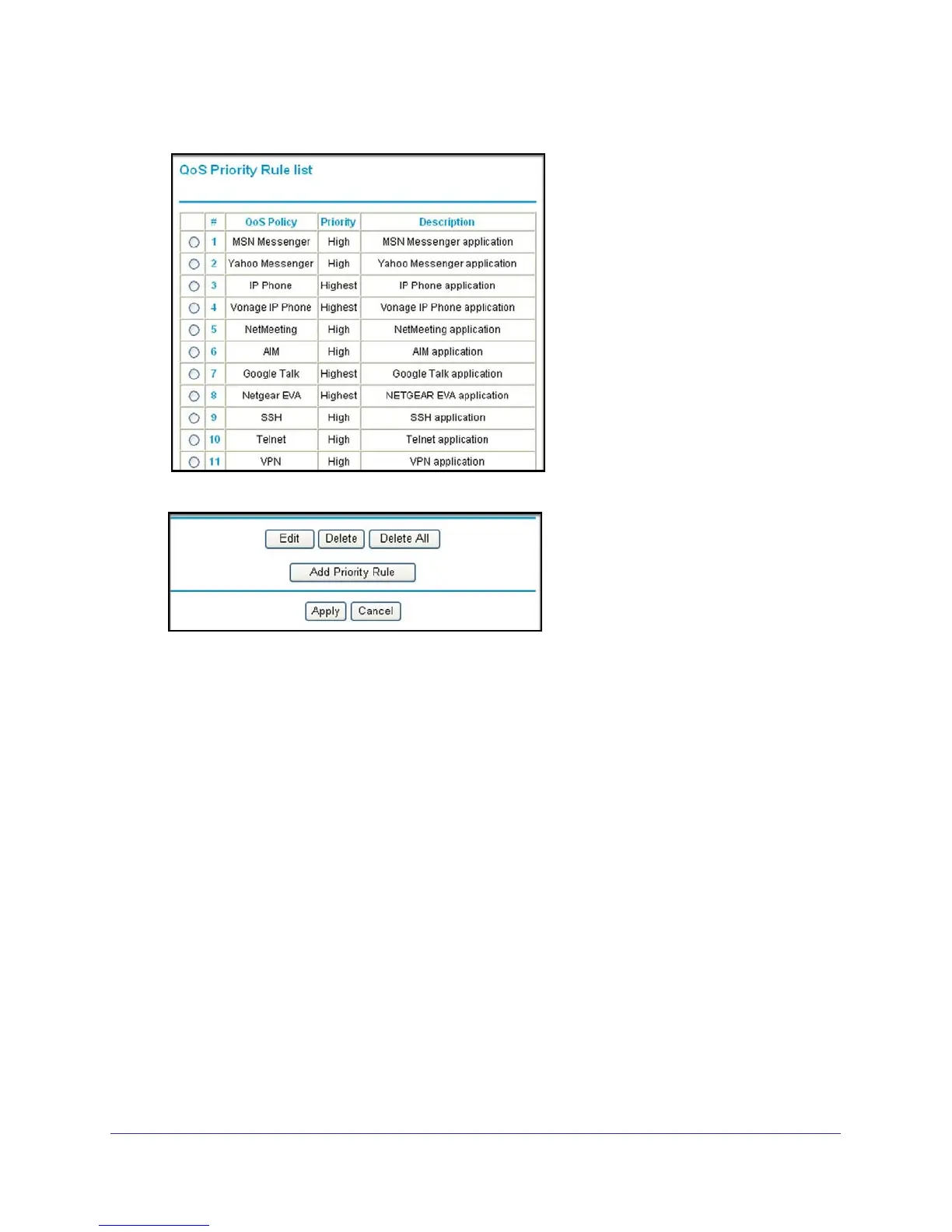

2. Click Setup QoS rule. The QoS Priority Rule list displays:
3. To change a rule, select its radio button, and scroll down to the bottom of the screen:
4. To edit a rule, click Edit. To add a custom rule, click Add Priority Rule, and enter the
requested information on the screen that displays.
5. Click Apply to save this rule to the QoS Policy list and return to the QoS Setup screen.
6. In the QoS Setup screen, click Apply.

NETGEAR DGN2200M Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Security features	IDS, DoS
Dimensions (WxDxH)	173 x 128 x 33 mm
Minimum system requirements	IE 5.0+
Compatible operating systems	Windows 7 Windows Vista Windows XP Windows 2000 Mac OS
WLAN data transfer rates supported	11, 54, 150, 300 Mbit/s
DHCP client	-
Supported network protocols	TCP/IP, DNS
Antennas quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CEC, RoHS, WEEE
Cables included	Phone (RJ-11), USB
Product color	Black
LED indicators	LAN, Power, USB, WLAN, Y

Weight and Dimensions

Weight	300 g
