Back Panel
The back panel of the switch provides the LED button, eight Gigabit Ethernet ports, two
10 Gigabit/Multi-Gig Ethernet ports, and the DC power connector. The port LEDs are
also located on the back panel.

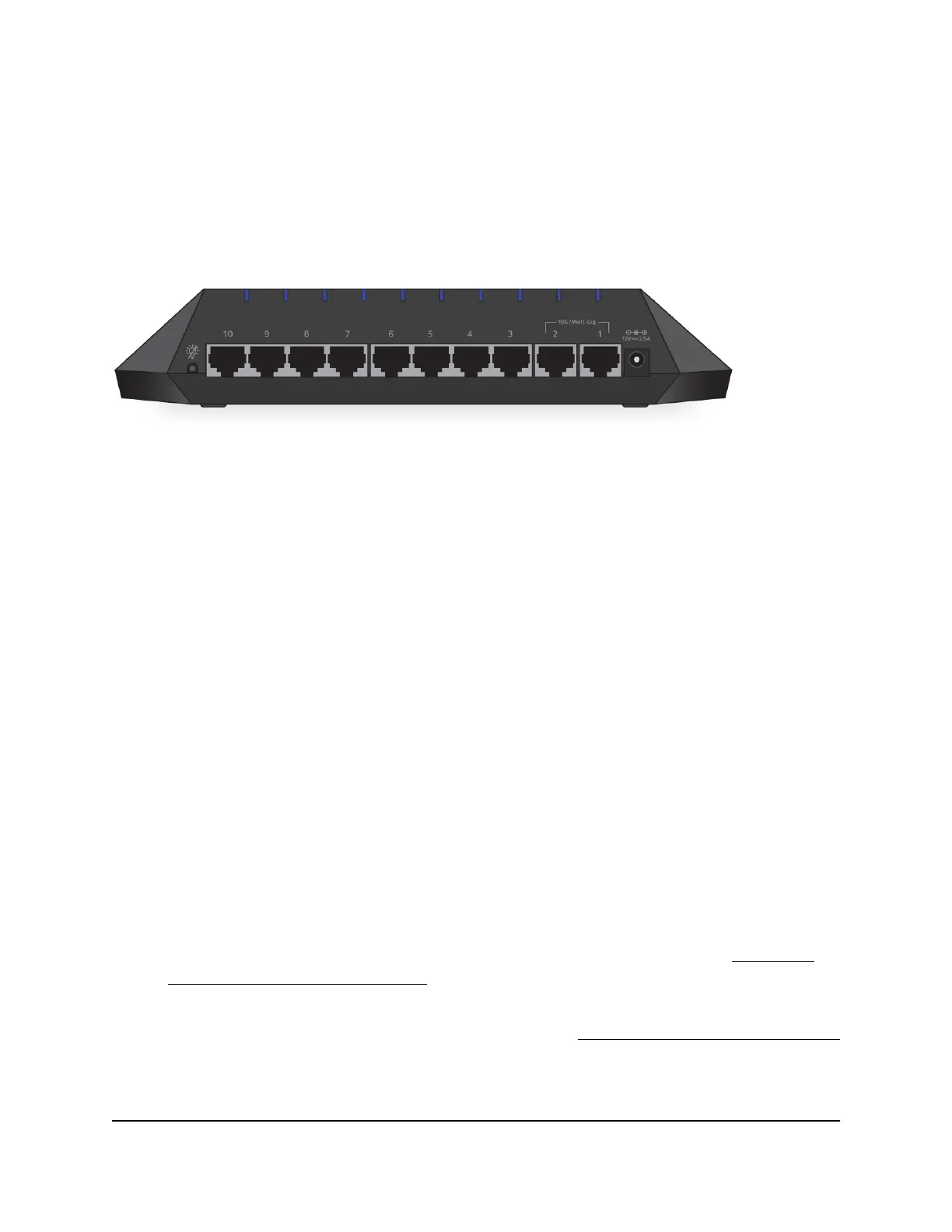

Figure 3. Switch back panel
Viewed from right to left, the back panel contains the following components:
•
DC power connector. One 12V, 2.5A DC connector for the power adapter.
•
10 Gigabit/Multi-Gig Ethernet ports. Two 10G ports that also support 5G, 2.5G,
1G, and 100M speeds. These ports, which are numbered 1 and 2, support 10G, 5G,
and 2.5G speeds only if the devices that are connected to these ports support these
speeds.
-
Port 1. We recommend that you use this port as the uplink and connect it to a
LAN port on a router that is connected to the Internet.
-
Port 2. Connect this port to a high-speed device such as another switch or
high-speed NAS.
•
Gigabit Ethernet ports. Eight Gigabit Ethernet RJ-45 LAN ports that support 1G
and 100M speeds. These ports are numbered 3 through 10.
-
Ports 3 through 8. We recommend that you connect these ports to your network
devices, other than your main media streaming device (see port 9) and main
gaming device (see port 10).
-
Ports 9. We recommend that you connect this port to your main media streaming
device so that you can use the Media Streaming Preset mode (see Apply the
Media Streaming Preset Mode on page 30).
-
Port 10. We recommend that you connect this port to your main gaming device
so that you can use the Gaming Preset mode (see Apply the Gaming Preset Mode
on page 29).
User Manual10Hardware Overview of the
Switch
Nighthawk SX10 Pro Gaming Advanced 8-Port Gigabit Ethernet Switch Model GS810EMX
