Firewall Protection
133
ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308
 To edit a port triggering rule (for example, to enable the rule):
1. In the Port Triggering Rules table, click the Edit table button to the right of the port
triggering rule that you want to edit. The Edit Port Triggering Rule screen displays.
2. Modify the settings that you wish to change (see the previous table).
3. Click Apply to save your changes. The modified port triggering rule is displayed in the Port
Triggering Rules table.
 To remove one or more port triggering rules from the table:
1. Select the check box to the left of the port triggering rule that you want to delete, or click
the Select All table button to select all rules.
2. Click the Delete table button.

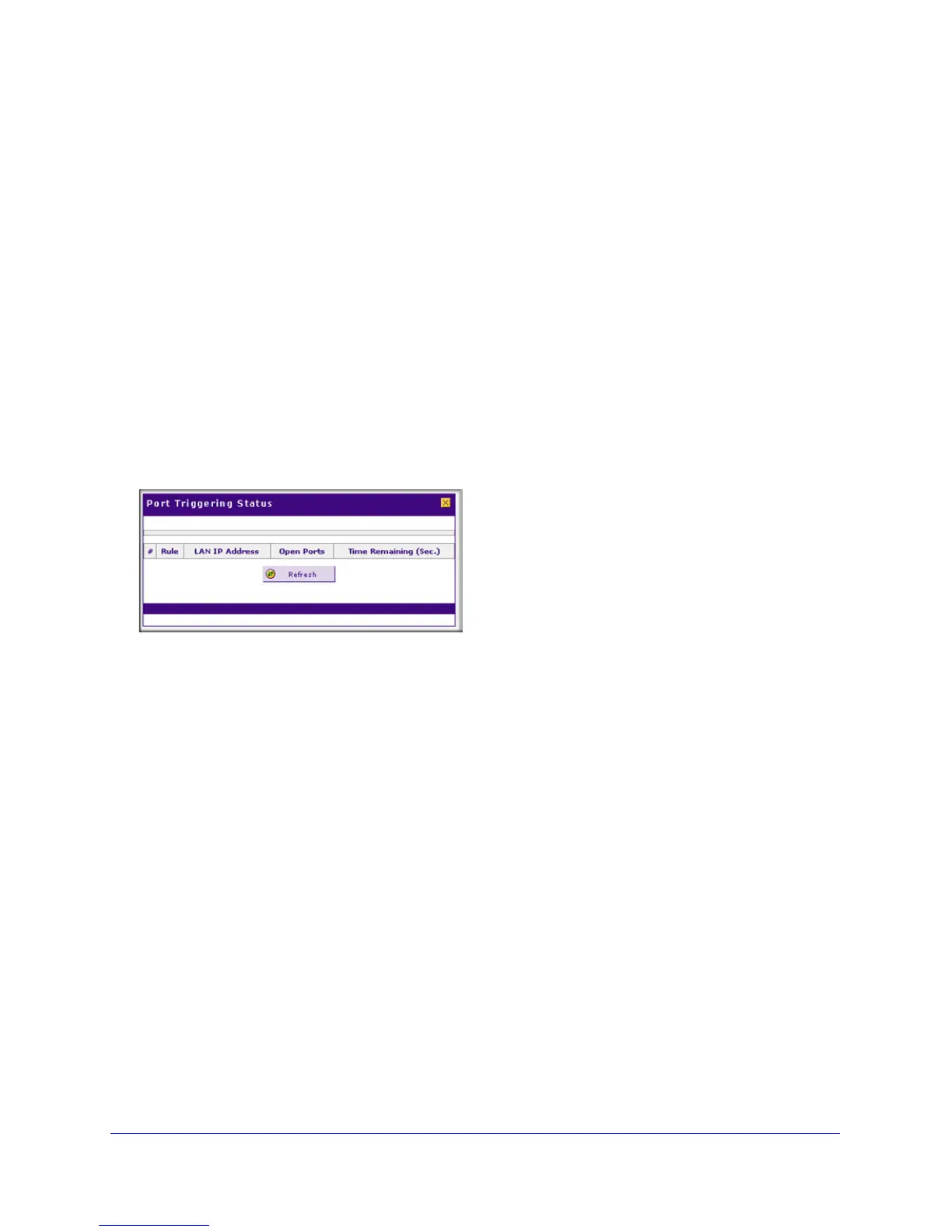

 To display the status of the port triggering rules:
Click the Status option arrow in the upper right of the Port Triggering screen. A pop-up
window appears, displaying the status of the port triggering rules.
Figure 72.
Configure Universal Plug and Play
The Universal Plug and Play (UPnP) feature enables the VPN firewall to automatically
discover and configure devices when it searches the LAN and WAN.
1. Select Security > UPnP. The UPnP screen displays (see the following figure).
The UPnP Portmap Table in the lower part of the screen shows the IP addresses and
other settings of UPnP devices that have accessed the VPN firewall and that have been
automatically detected by the VPN firewall:
- Active. A Yes or No indicates if the UPnP device port that established a connection is
currently active.
- Protocol. Indicates the network protocol such as HTTP or FTP that is used by the
device to connect to the VPN firewall.
- Int. Port. Indicates if any internal ports are opened by the UPnP device.
- Ext. Port. Indicates if any external ports are opened by the UPnP device.
- IP Address. Lists the IP address of the UPnP device accessing the VPN firewall.
