View the Attached Devices and DHCP Log
The LAN Groups screen shows the network database, which is the Known PCs and Devices
table that contains all IP devices that the VPN firewall has discovered on the local network.
The LAN Setup screen lets you access the DHCP log.
View Attached Devices
 To view the network database:
Select Network Configuration > LAN Settings > LAN Groups. The LAN Groups screen
displays. (The following figure shows some examples in the Known PCs and Devices table.)

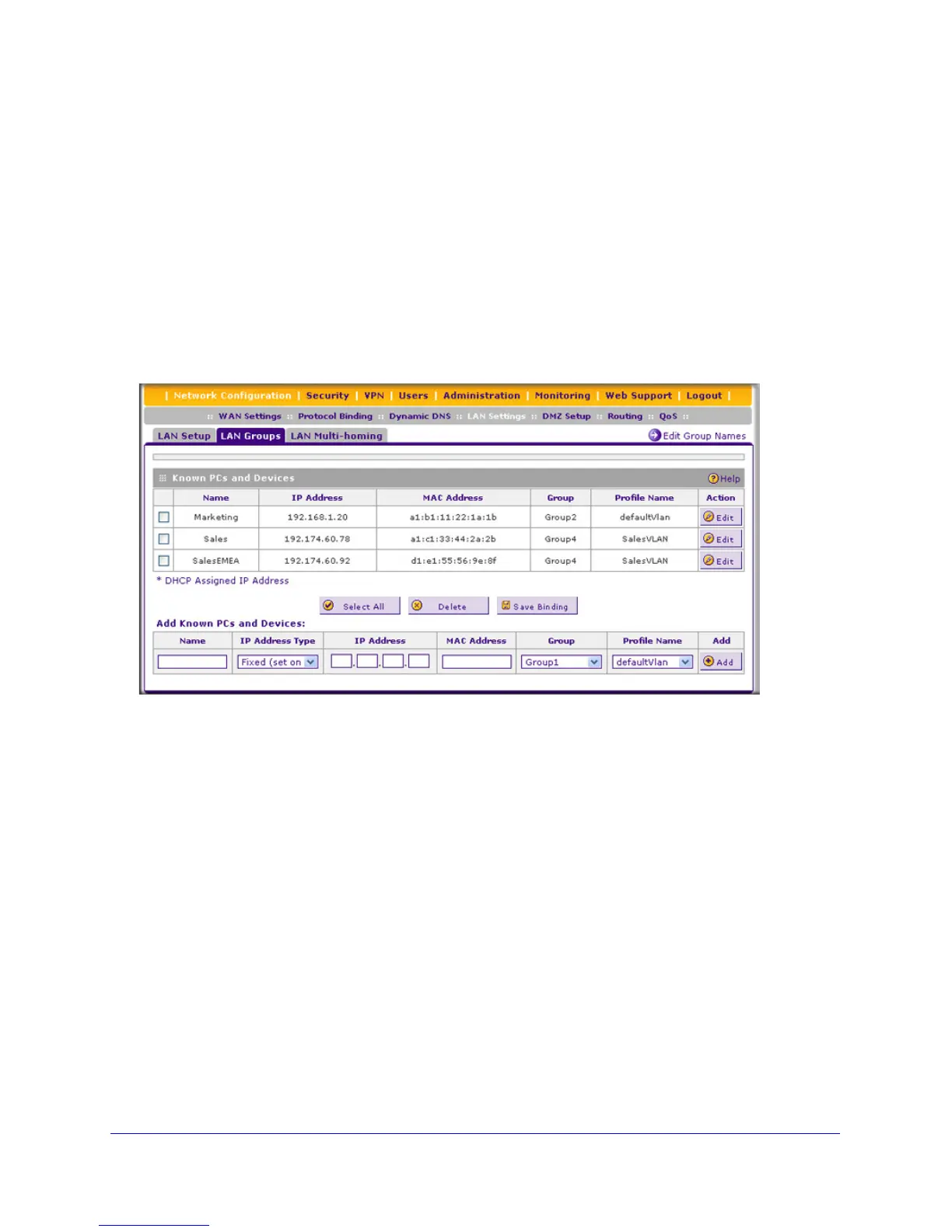

Figure 176.
The Known PCs and Devices table contains a list of all known computers and network
devices that are assigned dynamic IP addresses by the VPN firewall, or have been
discovered by other means. Collectively, these entries make up the network database.
For each computer or device, the following fields are displayed:
• Check box. Allows you to select the computer or device in the table.
• Name. The name of the computer or device. For computers that do not support the
NetBIOS protocol, the name is displayed as Unknown (you can edit the entry manually to
add a meaningful name). If the computer or device was assigned an IP address by the
DHCP server, then the name is appended by an asterisk.
• IP Address. The current IP address of the computer or device. For DHCP clients of the
VPN firewall, this IP address does not change. If a computer or device is assigned a
static IP address, you need to update this entry manually after the IP address on the
computer or device has changed.
• MAC Address. The MAC address of the computer or device’s network interface.
• Group. Each computer or device can be assigned to a single LAN group. By default, a
computer or device is assigned to Group 1. You can select a different LAN group from the
