ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308
Rear Panel
The rear panel of the VPN firewall includes a console port, a Factory Defaults Reset button, a
cable lock receptacle, an AC power connection, and a power switch.

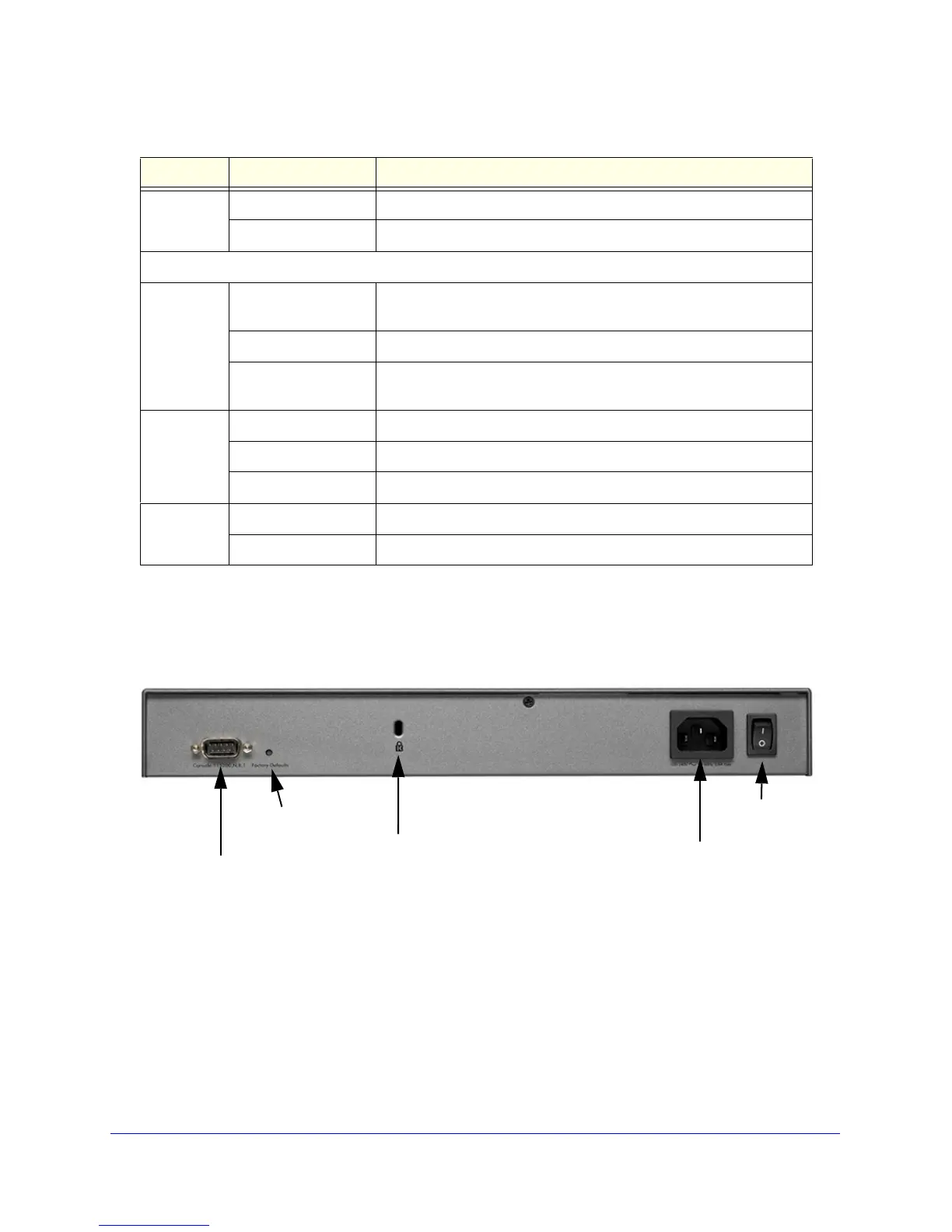

Figure 2.
Viewed from left to right, the rear panel contains the following components:
1. Cable security lock receptacle.
2. Console port. Port for connecting to an optional console terminal. The port has a DB9 male
connector. The default baud rate is 9600 K. The pinouts are (2) Tx, (3) Rx, (5) and (7) Gnd.
For information about accessing the command-line interface (CLI) using the console port,
see Use the Command-Line Interface on page 255.
DMZ LED On (green) Port 4 is operating as a dedicated hardware DMZ port.
Off Port 4 is operating as a normal LAN port.
WAN Ports
Left LED On (green) The WAN port has a valid connection with a device that provides an
Internet connection.
Blinking (green) Data is being transmitted or received by the WAN port.
Off The WAN port has no physical link, that is, no Ethernet cable is
plugged into the VPN firewall.
Right LED On (green) The WAN port is operating at 1000 Mbps.
On (amber) The WAN port is operating at 100 Mbps.
Off The WAN port is operating at 10 Mbps.
Internet LED On (green) The WAN port has a valid Internet connection.
Off The WAN port is either not enabled or has no link to the Internet.
Table 1. LED descriptions (continued)
LED Activity Description
Security lock
receptacle
Console port
Factory Defaults
AC power
receptacle
Power
switch
Reset button
