NETGEAR SRX5308 User Manual

Virtual Private Networking Using IPSec Connections
192
ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308
2. Specify the following default lifetimes in seconds to match the configuration on the VPN
firewall:
• Authentication (IKE), Default. Enter 3600 seconds.
• Encryption (IPSec), Default. Enter 3600 seconds.
3. Select the Dead Peer Detection (DPD) check box, and configure the following DPD settings
to match the configuration on the VPN firewall:
• Check Interval. Enter 30 seconds.
• Max. number of entries. Enter 3 retries.
• Delay between entries. Leave the default delay setting of 15 seconds.
4. Click Apply to use the new settings immediately, and click Save to keep the settings for
future use.
The Mode Config configuration of the VPN client is now complete.
Test the Mode Config Connection
 To test the Mode Config connection from the VPN client to the VPN firewall:

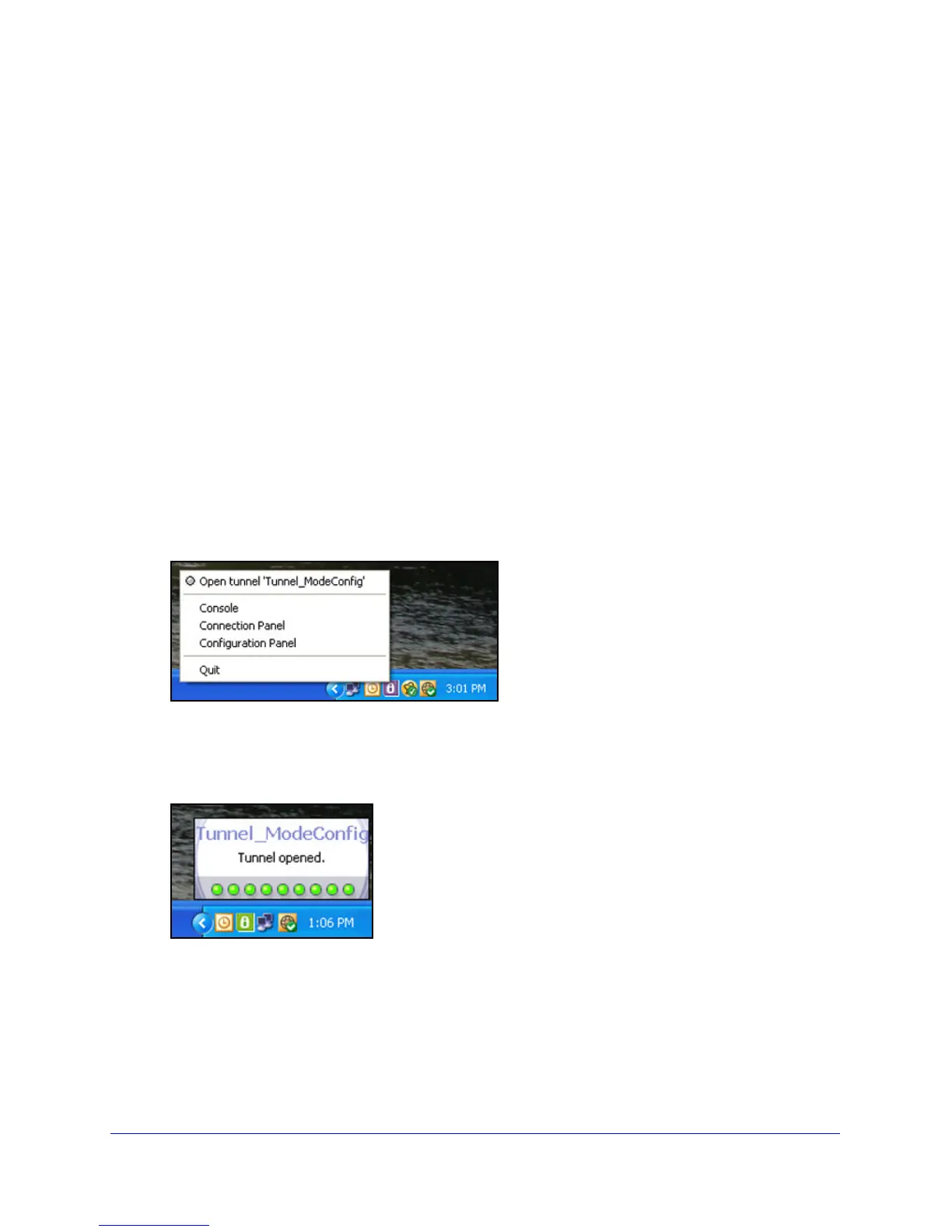

1. Right-click the system tray icon, and click Open tunnel ‘Tunnel_ModeConfig’.
Figure 118.
When the tunnel opens successfully, the Tunnel opened message displays above the
system tray, and the VPN client displays a green icon in the system tray.
Figure 119.
2. Verify that the VPN firewall issued an IP address to the VPN client. This IP address
displays in the VPN Client address field on the IPSec pane of the VPN client. (The
following figure shows the upper part of the IPSec pane only.)
