LAN Configuration
79
ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308
Configure Routing Information Protocol
Routing Information Protocol (RIP), RFC 2453, is an Interior Gateway Protocol (IGP) that is
commonly used in internal networks (LANs). RIP enables a router to exchange its routing
information automatically with other routers, to dynamically adjust its routing tables, and to
adapt to changes in the network. RIP is disabled by default.
 To enable and configure RIP:
1. Select Network Configuration > Routing.

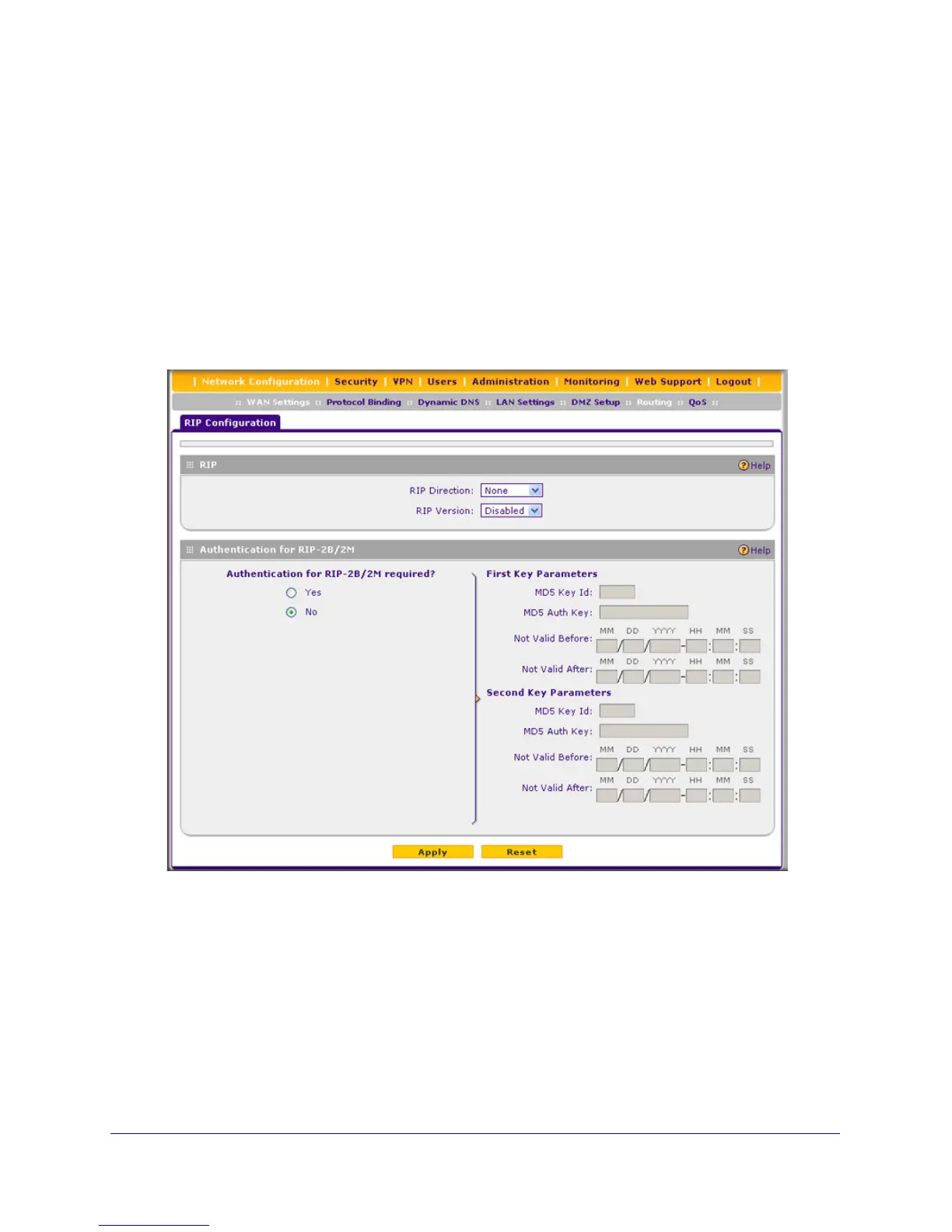

2. Click the RIP Configuration option arrow in the upper right of the Routing screen. The RIP
Configuration screen displays:
Figure 40.
