Connecting the VPN Firewall to the Internet
52
ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308
Note: You can also configure the failure detection method for the
auto-rollover mode on the Advanced screen. This procedure is
discussed in Configure the Failure Detection Method on page 35.
 To configure advanced WAN options:
1. Select Network Configuration > WAN Settings.
2. Click the Edit table button in the Action column of the WAN interface for which you want to
configure the advanced options. The WAN ISP Settings screen displays (see Figure 11 on
page 26, which shows the WAN1 ISP Settings screen as an example).

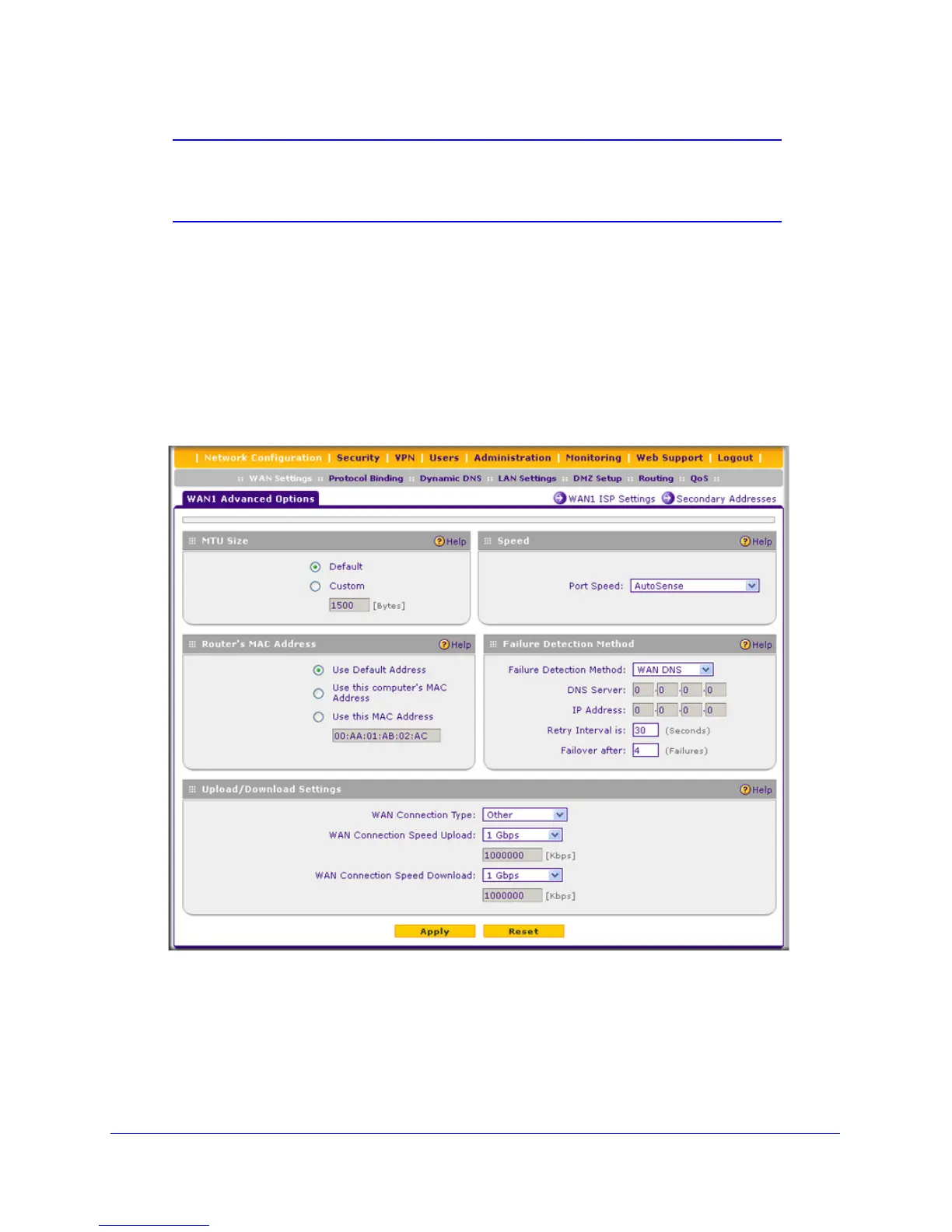

3. Click the Advanced option arrow in the upper right of the screen. The WAN Advanced
Options screen displays for the WAN interface that you selected. (The following figure shows
the WAN1 Advanced Options screen as an example.)
Figure 28.
