Neural Capture

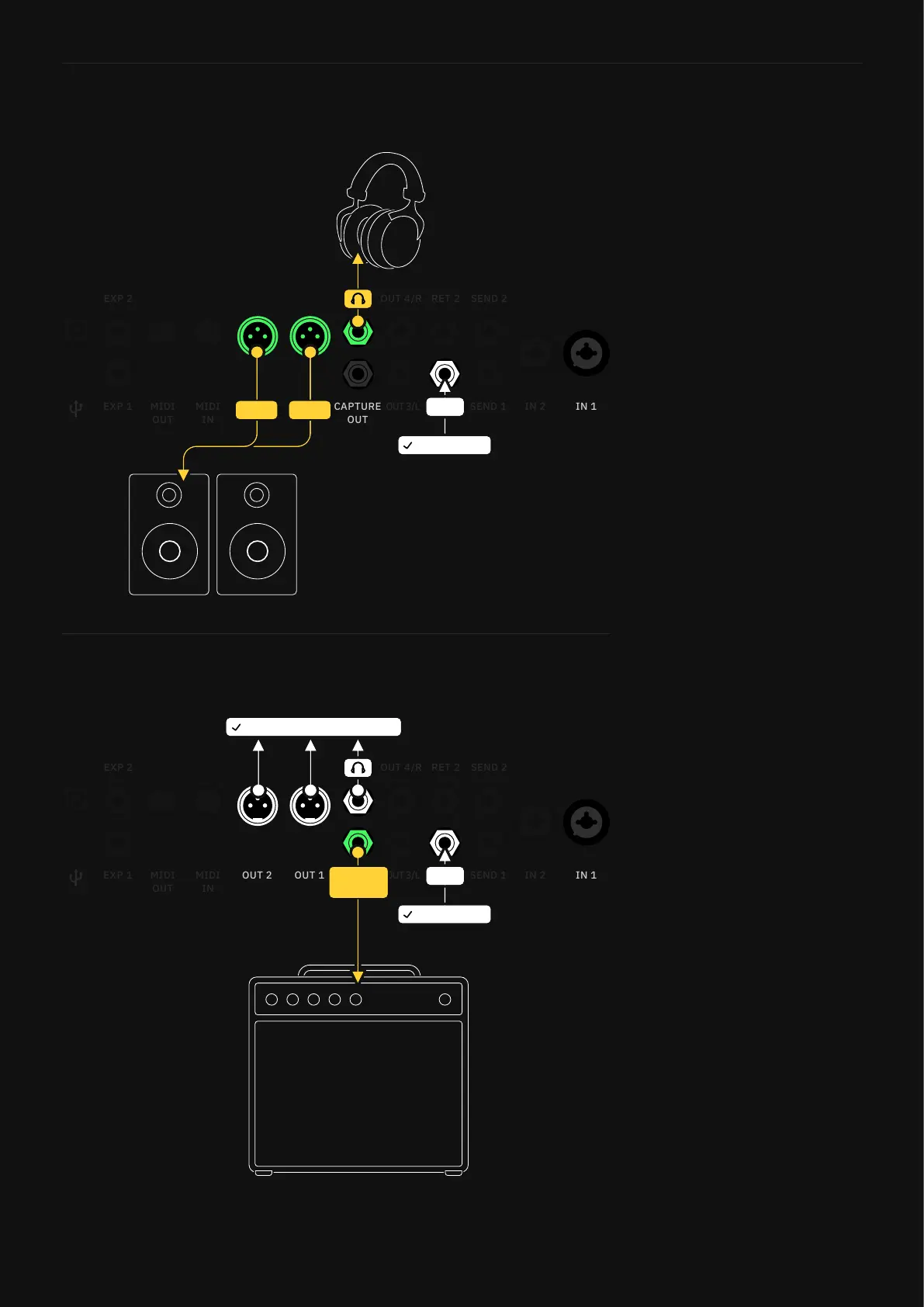

2. Connect your headphones and/or use your XLR outputs for
monitoring.
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 3/L
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
INSTRUMENT
RET 1
OUT 1OUT 2
3. Connect Capture Out to the input of the device being captured
input.
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 3/L
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
RET 1
INSTRUMENT
MONITORS OR HEADPHONES
CAPTURE
OUT
