76
NIBE FIGHTER 1250

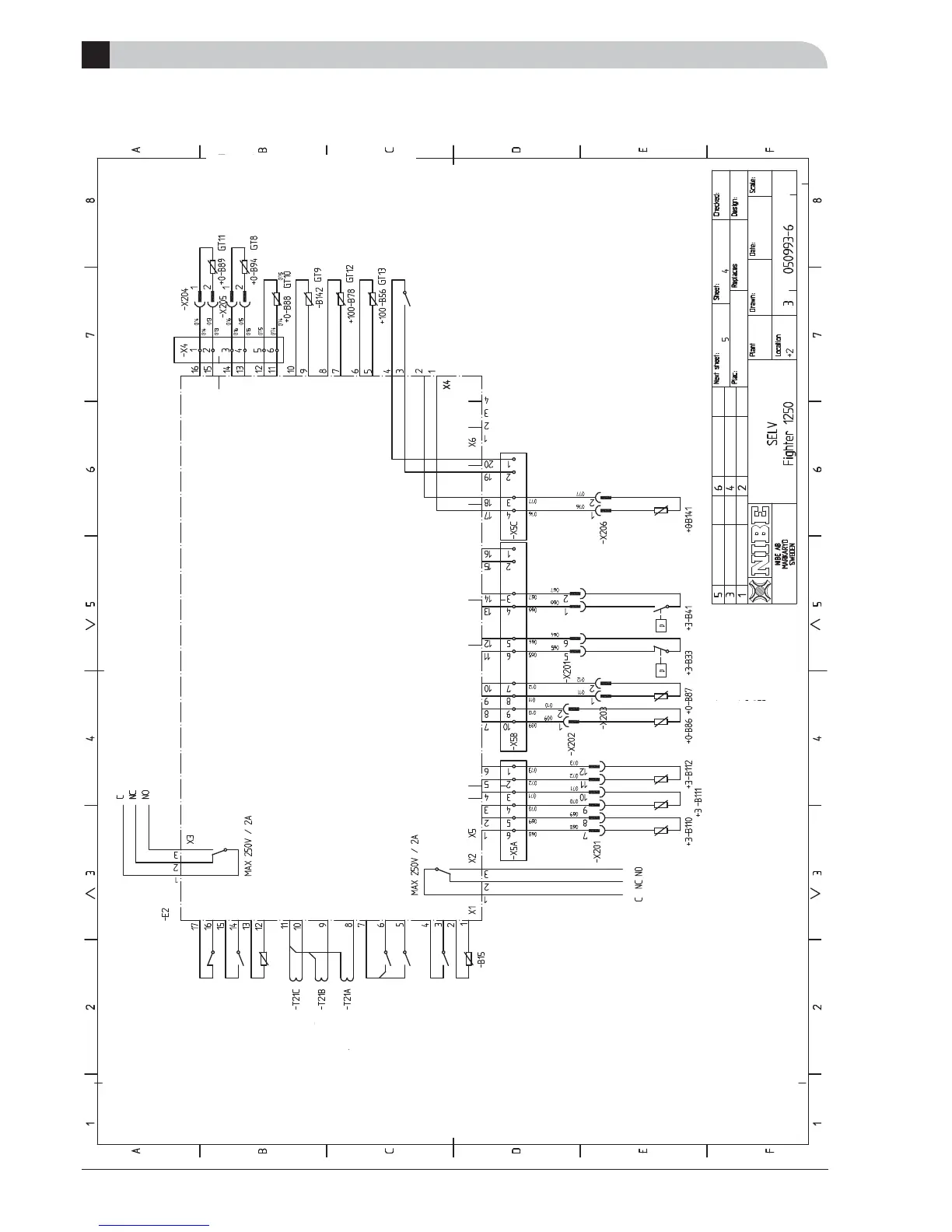

Electrical circuit diagram
F
Extra Hot Water
Hot water, jacket
Hot water, top
Return sensor 1
Flow sensor 1 Flow sensor 2
Return line sensor 2
Pressure/level monitor brine GT15 External compensation 2 GT16 Pool temperature Current transformer L3 Current transformer L2 Current transformer L1 Tariff B Tariff A GT14 External compensation 1 GT6 Outdoor temperature sensor
GT17 Condenser heating medium
Buzzer
GT5 Hot gas
GT3 Liquid line
GT4 Bulb
GT1 Brine in
GT2 Brine out
GP1 High pressure
GP2 Low pressure
Electrical circuit diagram
EBV board
