Nice SHEL60KIT

EN
10 – English
WARNINGS:
– TheproductSHEL60KIT-SHEL75KITisproducedbyNiceS.p.a.(TV)I.
– Alltechnicalspecicationsstatedinthissectionrefertoanambienttemperatureof20°C(±5°C).
– NiceS.p.a.reservestherighttoapplymodicationstotheproductatanytimewhendeemednecessary,whilemaintainingthesamefunctionalitiesandintendeduse.

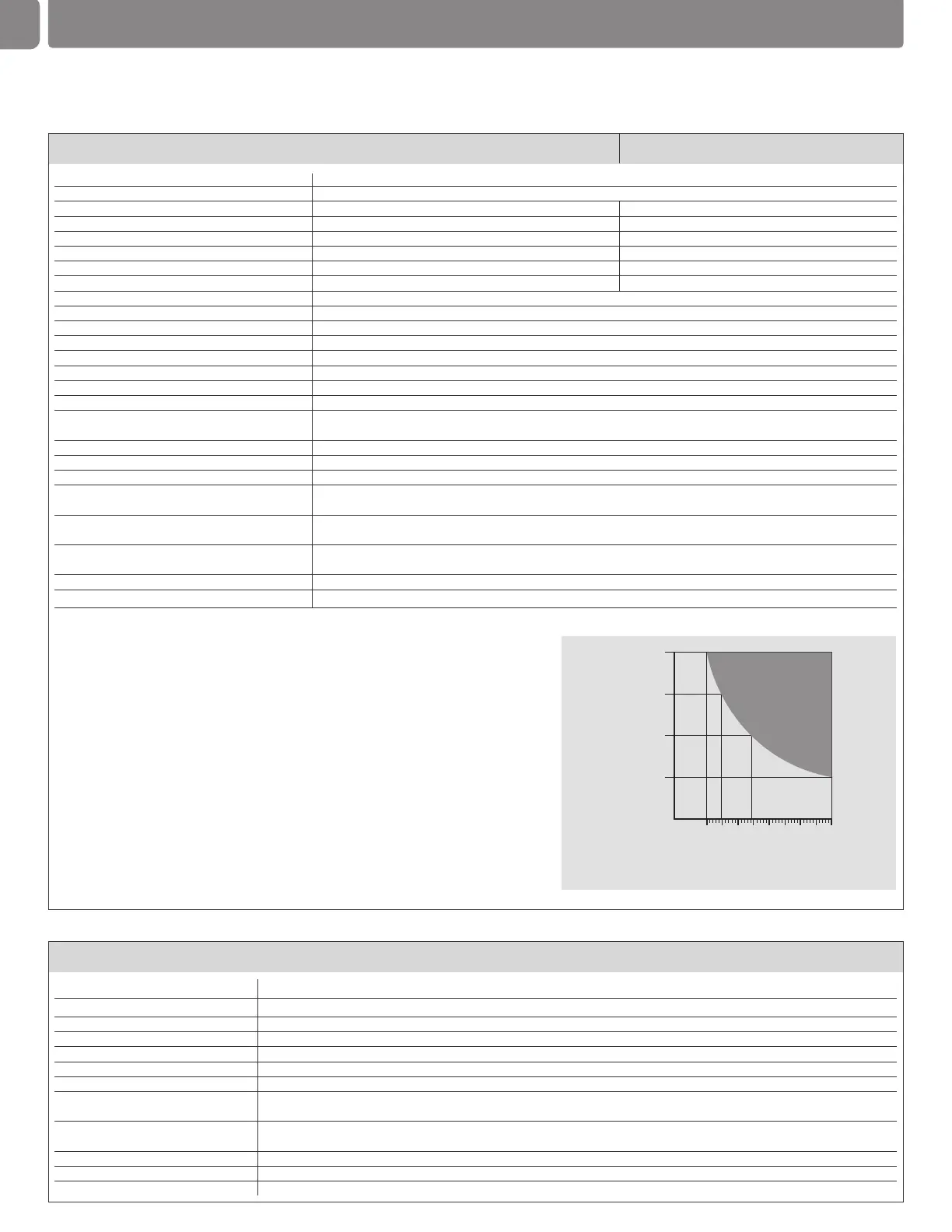

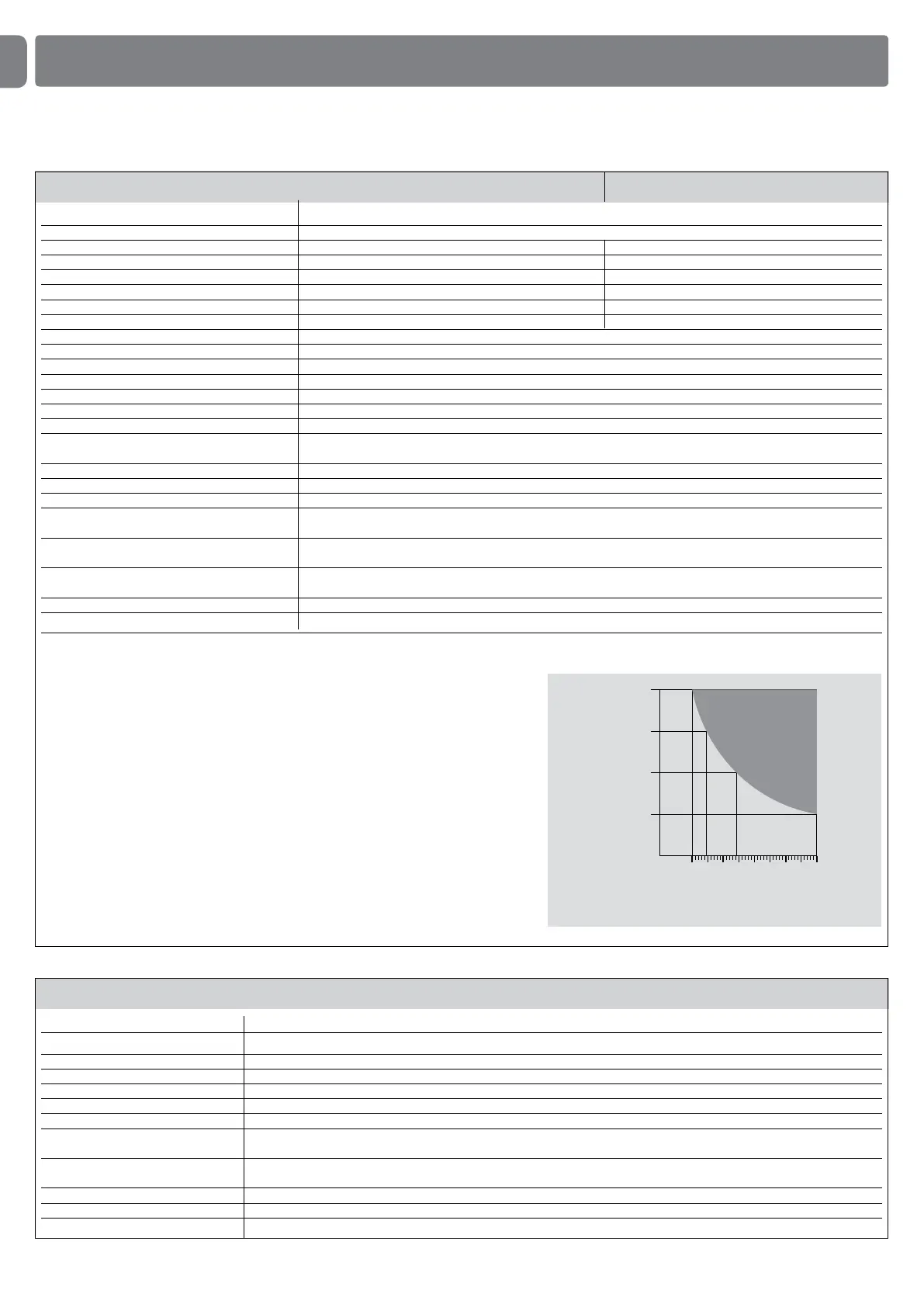

TECHNICAL SPECIFICATIONS OF PRODUCT COMPONENTS
GEARMOTORS: SHEL60KIT SHEL75KIT
Technology adopted 24 V motor
Power supply 230 Vac 50/60 Hz
Maximum start-up torque 9 Nm 12 Nm
Nominal torque 6 Nm 7,5 Nm
Maximum thrust 600 N 750 N
Nominal thrust 350 N 450 N
Maximum power 200 W 280 W
Movement speed 0.07 ÷ 0.13 m/s 0.08 ÷ 0.14 m/s
Maximum continuous operation time 4 minutes
No. Cycles per hour at nominal torque (20°) 8
Ambient operating temperature -20°C÷+50°C
Dimensions 305x109hx130(mm)
Weight 4 kg
Insulation class 1
Courtesy light 12V/10WttingBA15
STOP Input
 Fornormallyopen,normallyclosedorconstantresistance8,2KΩcontacts;inself-learning
 (avariationwithrespecttothememorisedstatuscausesthecommand“STOP”).
STEP-STEP Input For normally open contacts
PHOTO input For safety devices with normally closed contacts
Radio receiver Built-in
Programmable functions
 4programmablefunctions(seeparagraph6.3)Selflearningoftypeof  
 STOPdevice(NOcontact,NCcontactor8,2KΩresistance)
Functions in self-learning mode
Self-learning of door opening and closing positions and calculation of deceleration
and partial open points
Use in particularly acid or saline
No
potentially explosive atmospheres
Protection class IP 40 use indoors or in protected environments
Estimated durability (
*
) From 40.000 to 80.000 manoeuvre cycles
(
*
) Note – The estimated product durability ranges from 40.000 to 80.000 manoeuvre cycles.
To calculate the probable durability of your automation proceed as follows:
a) – evaluate the conditions of use and force levels involved on your system, for example:
• the weight and length of the garage door;
• perfect balancing of the garage door;
• maintenance conditions of the garage door hinges;
• type of leaf; Solid or with many openings;
• the presence of strong winds;
• frequency of automation use.
b)–fromthesevalues,obtainavalueexpressedasapercentagewhich,ingeneral,denes
the greatest or smallest degree of automation wear.
c)–onthegraphalongside,locatetheestimatedpercentage(atpoint“b”)andreadthecor-
responding number of manoeuvre cycles.
100 %
75 %
50 %
25 %
0 %
40.000 50.000 60.000 70.000 80.000
Per Sezionale TS
TRANSMITTER FLO4R-S
DESCRIPTION DATA
Type 4-channel transmitter for radio control
Frequency 433.92 MHz
Encoding Rolling code with 52 Bit code type FLOR
Keys 4
Radiated power 100 µW
Power supply 12 Vdc with battery type 23 A
Battery lifetime
 1year,estimatedonthebasisof20commands/dayofthedurationof1sat20°C
 (batteryefciencyisreducedatlowtemperatures)
Ambient operating
-40°C÷85°C
temperature
Protection class IP40(useinthehomeorprotectedenvironments)
Dimensions 72 x 40 h x 18 mm
Weight 30 g
