ANSI Hardware Installation Manual Installing a 7360 ISAM FX-12 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 159
DRAFT

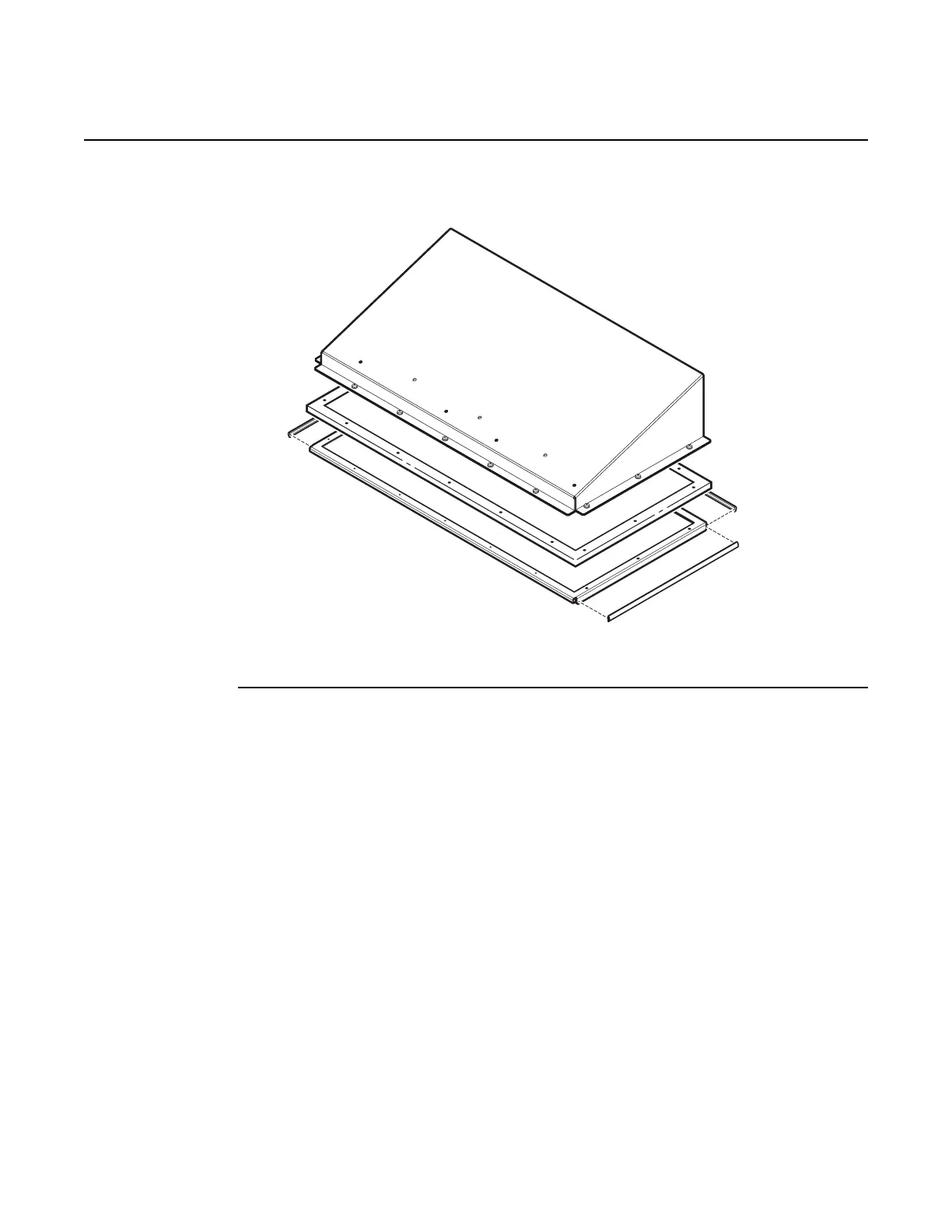

Figure 72 Pre-assembled upper baffle assembly of the 7360 ISAM FX-12
heat and fiber baffle kit
6 Attach the upper baffle assembly to the top of the 7360 ISAM FX-12 shelf using the provided
screws, as shown in Figure 73.
