Nokia 7360 ISAM FX-16 - Installing or replacing the fan unit in a 7360 ISAM FX-16 shelf

Installing a 7360 ISAM FX-16 shelf
94
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

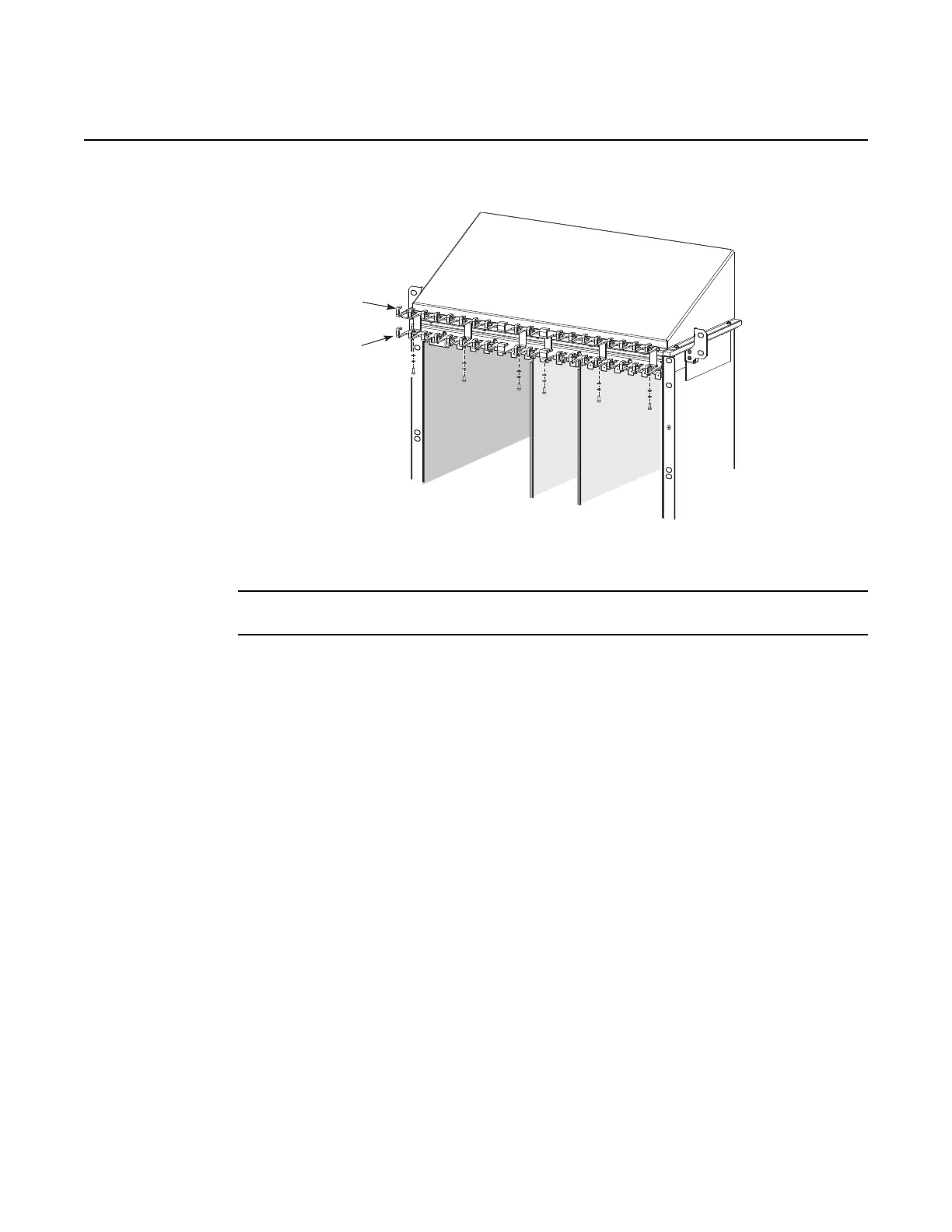

Figure 32 Fiber management bracket
10 STOP. This procedure is complete.
5.5 Installing or replacing the fan unit in a
7360 ISAM FX-16 shelf
The fan unit is a field-replaceable unit with wide-voltage-range fans, an alarm
interface board, and (optional) a fan filter. The unit is installed in the shelf fan area
and plugs directly into the backplane connectors. The front panel includes a single
red alarm LED that lights up if fan failure occurs.
One version of the fan unit is available:
• intelligent fan unit (BFAN-H)
The fan unit can be shipped factory installed in the rack, but can also be ordered as
a separate unit for replacement on site.
25362
Fiber
management
bracket
Cable
management
bracket
