ANSI Hardware Installation Manual Installing racks
Issue: 09 3HH-12893-AAAA-TCZZA 73
DRAFT
6 Mount the seismic rack extender on the rack using the screws provided, then mount the
connector plate at the top of the extender; see Figure 19.

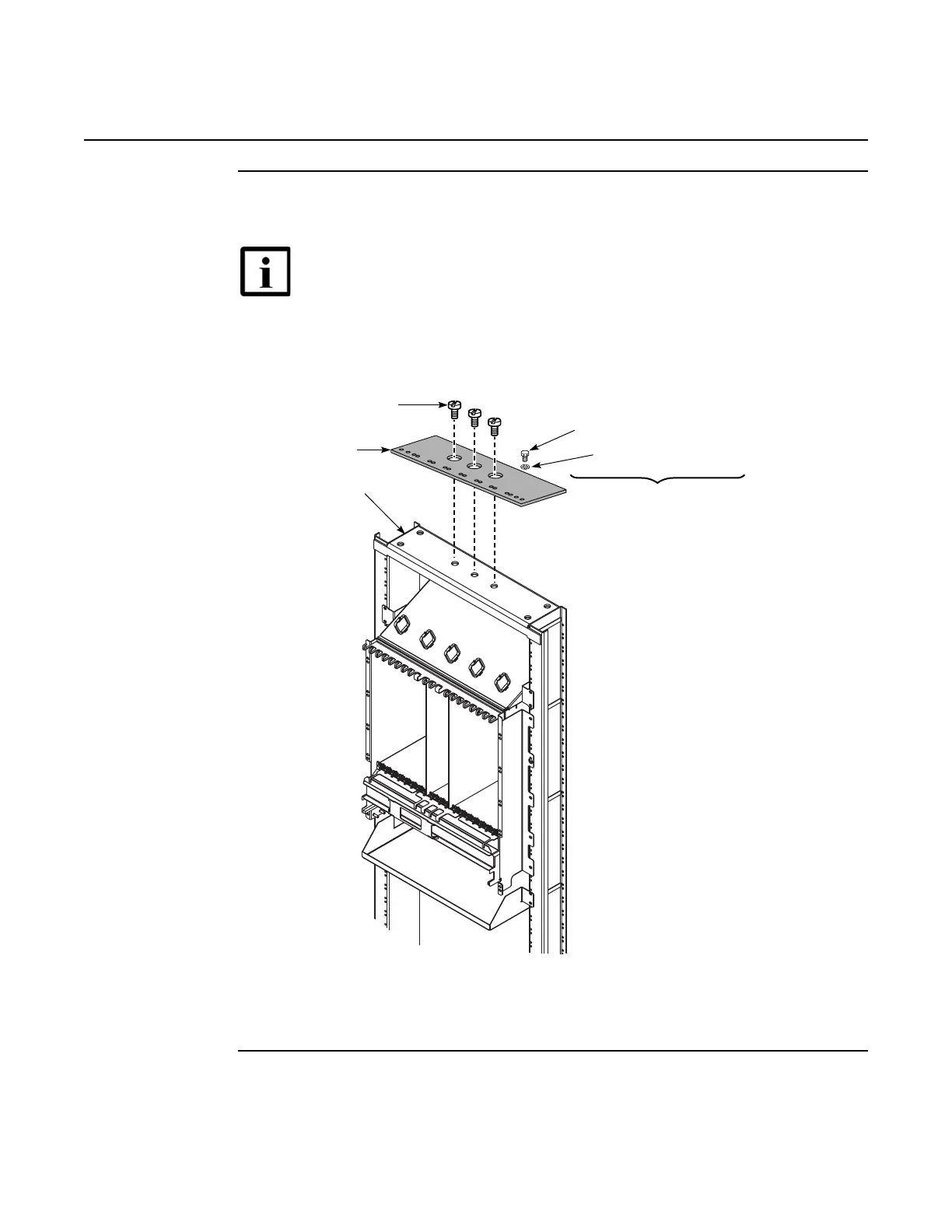

Figure 19 Rack connector plate for 7-ft rack
7 Brace the rack per recommended office practice. Figure 20 provides an example of attaching
the rack to overhead rails.
Note — The connector adapter kit provides rack tie-down facilities per
Telecordia specifications.
22368
Adapter plate assembly kit
Flathead screw
Connector plate
Rack top
Hexhead screw
Hardware used for mounting
braces from connector plate
to overhead rails/cable tray
Lockwasher
