7360 ISAM FX-8 shelf cabling
270
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
The 7360 ISAM FX-8 requires a 50-pin micro DSUB connector with an angled head
for the CO external alarm connection. A cable assembly is available from Nokia (sold
separately), that can be used with the 7360 ISAM FX-8, as shown in Figure 141. See
Figure 140 for the location of the CO external alarm connector.

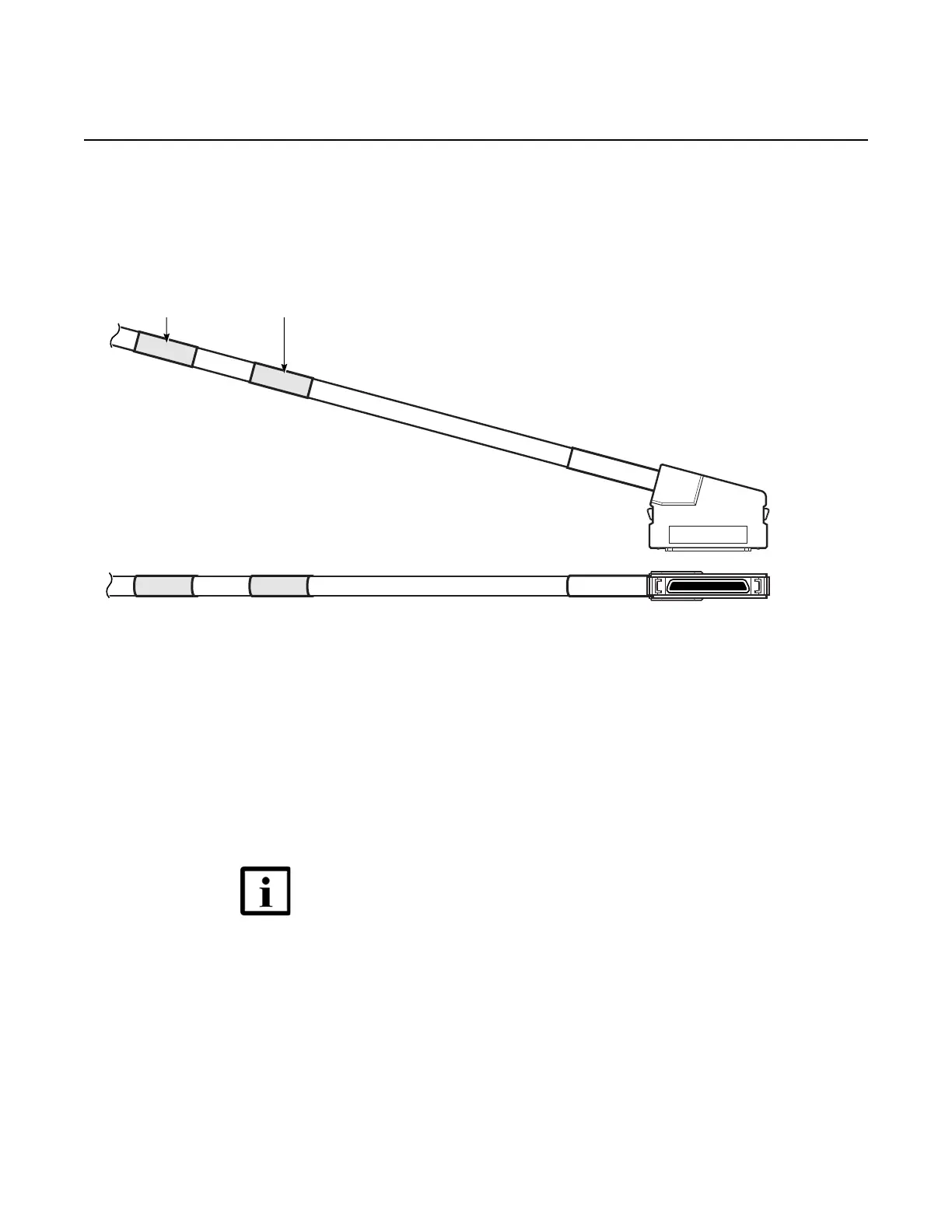

Figure 141 CO external alarm cable for 7360 ISAM FX-8
For a description of the CO external alarm connector pinning, see your Nokia
representative.
14.7 BITS interface connections
The 7360 ISAM FX-8 requires six wire-wrappable pins for the BITS clock timing
connection. BITS timing signals will be supplied using two twisted pair cables (22
AWG solid copper conductors with overall shield and drain wire, Belden 1175A or
equivalent). One cable will connect to the 3 wire-wrap pins for NT-A, and the other
will connect to the 3 wire-wrap pins for NT-B.
See Figure 140 for the connection location.
For a description of the BITS interface pinning, see Appendix 25.
AMP
Supplier
label
Company
label
22959
Note — Connect the drain wire (FG) at one end only, either at
the 7360 ISAM FX-8 or at the source.
