Nokia 7360 ISAM FX-16 - MDF Cable LINE Connection on 7360 ISAM FX-12

ANSI Hardware Installation Manual 7360 ISAM FX-12 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 185
DRAFT
Procedure 37 MDF cabling procedure for LT cards with integrated splitter
Proceed as follows to connect the MDF cables for LINE and POTS to the LT card with integrated
splitter:
1 Connect the MDF cable for the LINE to the right-hand CHAMP connector on the LT card with
integrated splitter, as shown in Figure 89.

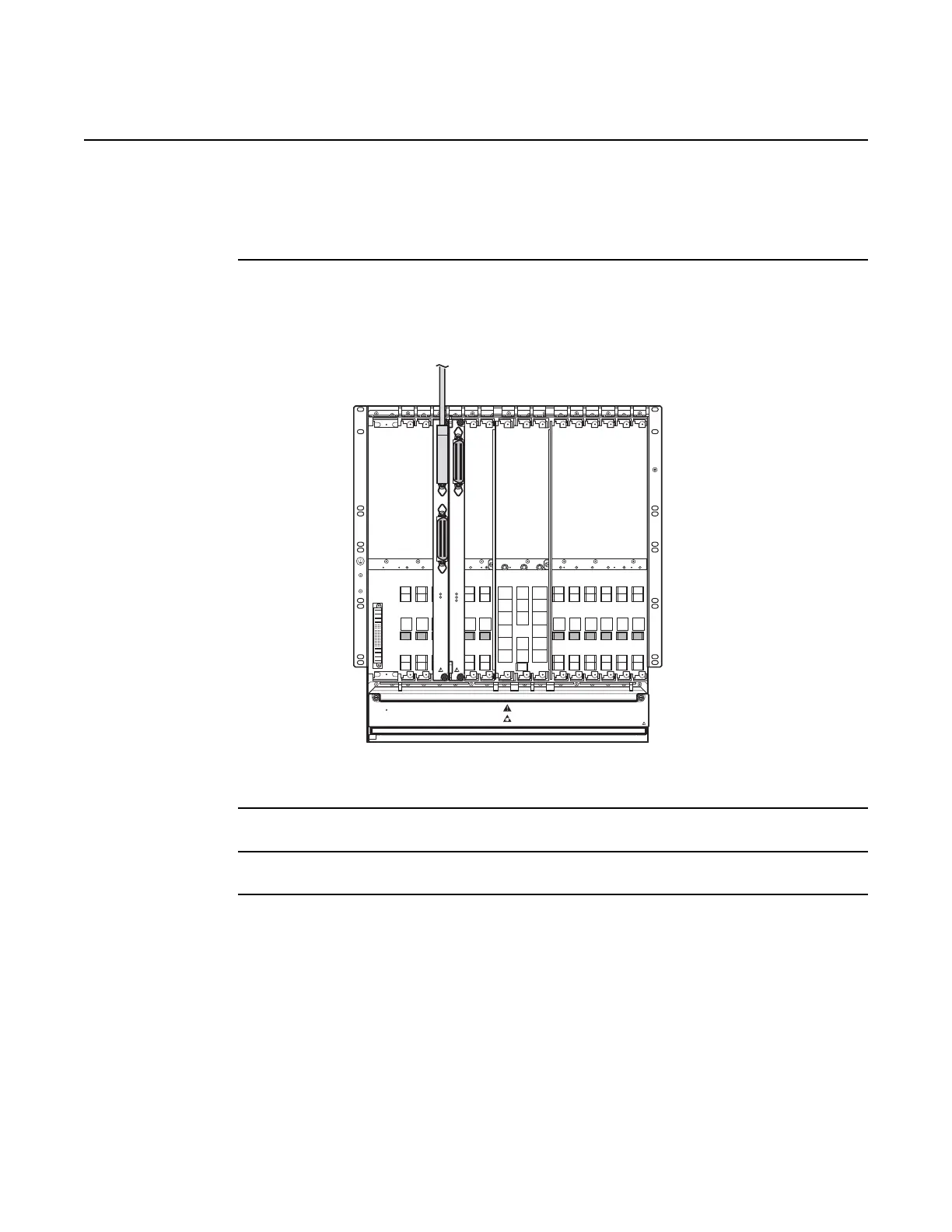

Figure 89 MDF cable LINE connection on 7360 ISAM FX-12
2 Secure the connector with baillocks.
3 Route and connect the other end of the MDF cable as per site practices.
4 Connect the MDF cable for the LINE to the left-hand CHAMP connector on the LT card with
integrated splitter, as shown in Figure 90.
24947
GF C LT1 LT2 LT 3 LT4 LT6 NTA NTB NTIO LT5 LT7 LT8 LT9 LT10 LT12LT11
Alarm
ENERGY HAZARD
ROATING FAN BLADES
KEEP FINGERS AWAY FROM
TOP AND BOTTOM OF FAN TRAY
xDSL
PWR
ALM
MAJ
POTS LINE
PWR
ALM
