Nokia 7360 ISAM FX-16 - Figure 190 Attaching the 7360 ISAM FX-4 Bottom Mounting Bracket in a 23 In. Rack

Installing a 7360 ISAM FX-4 shelf
338
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

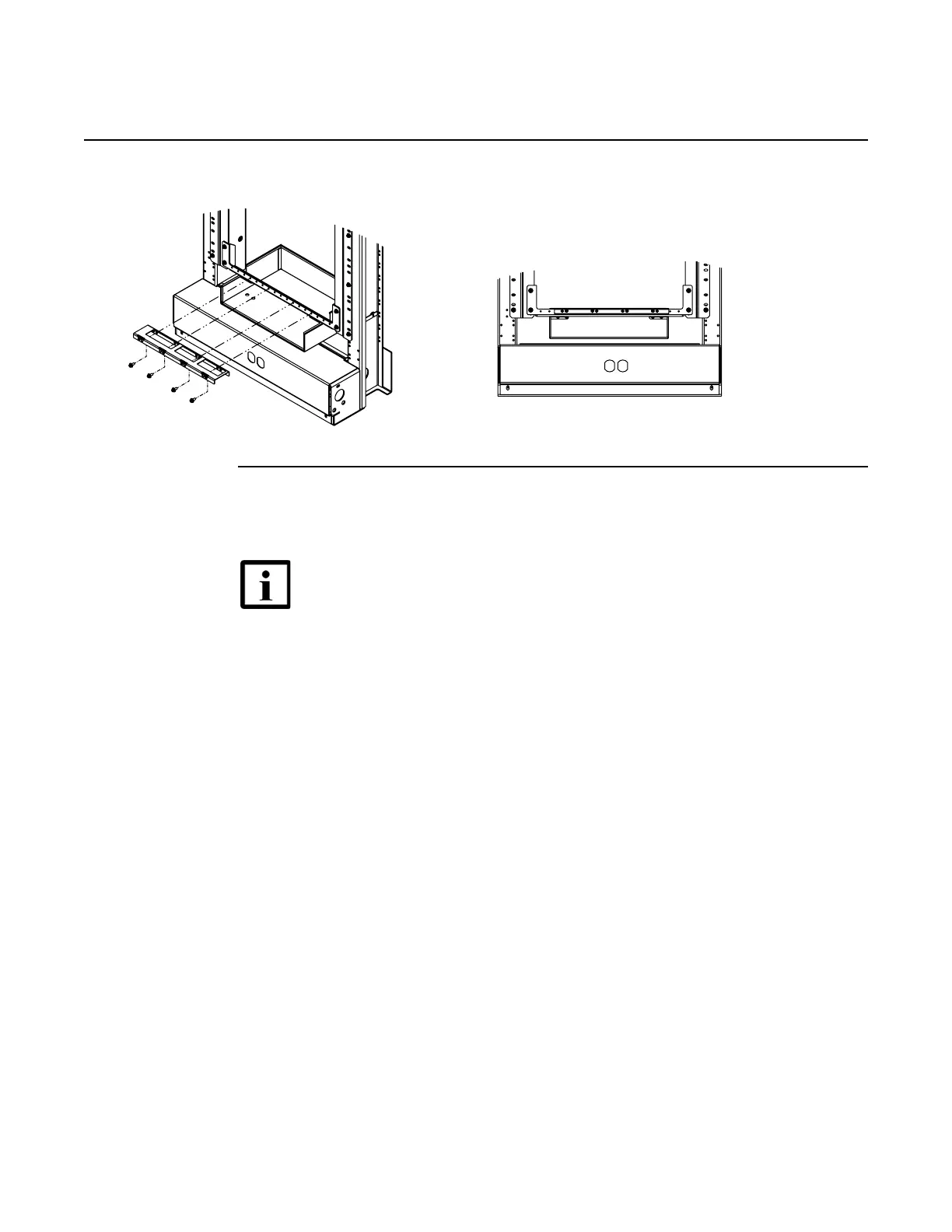

Figure 190 Attaching the 7360 ISAM FX-4 bottom mounting bracket in a 23 in. rack
9 Attach the shelf assembly above the air intake/drip tray assembly and onto the bottom
mounting bracket using the 12-24 × 1/2 in. (12.7 mm) screws and the screws and washers
that were removed in an earlier step, as shown Figure 191.
23577
Note 1 — Removing the bottom mounting bracket from the shelf in
previous steps allows the screws to be easily attached to the recessed
flange on the bottom of the shelf in this step.
Note 2 — Torque the mounting bracket screws to 28 in. to 30 in. per lbs
after attaching the shelf assembly to the rack.
