Installing a 7360 ISAM FX-8 shelf
224
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
13.2 Mounting the 7360 ISAM FX-8 shelf in a 19 in.
rack
The 7360 ISAM FX-8 shelf can be mounted:
• horizontally in a EIA standard 19 in. rack (17.75 in. opening)
• vertically in a EIA standard 19 in. rack (17.75 in. opening)
• vertically in a seismic 19 in. rack (17.5 in. opening)

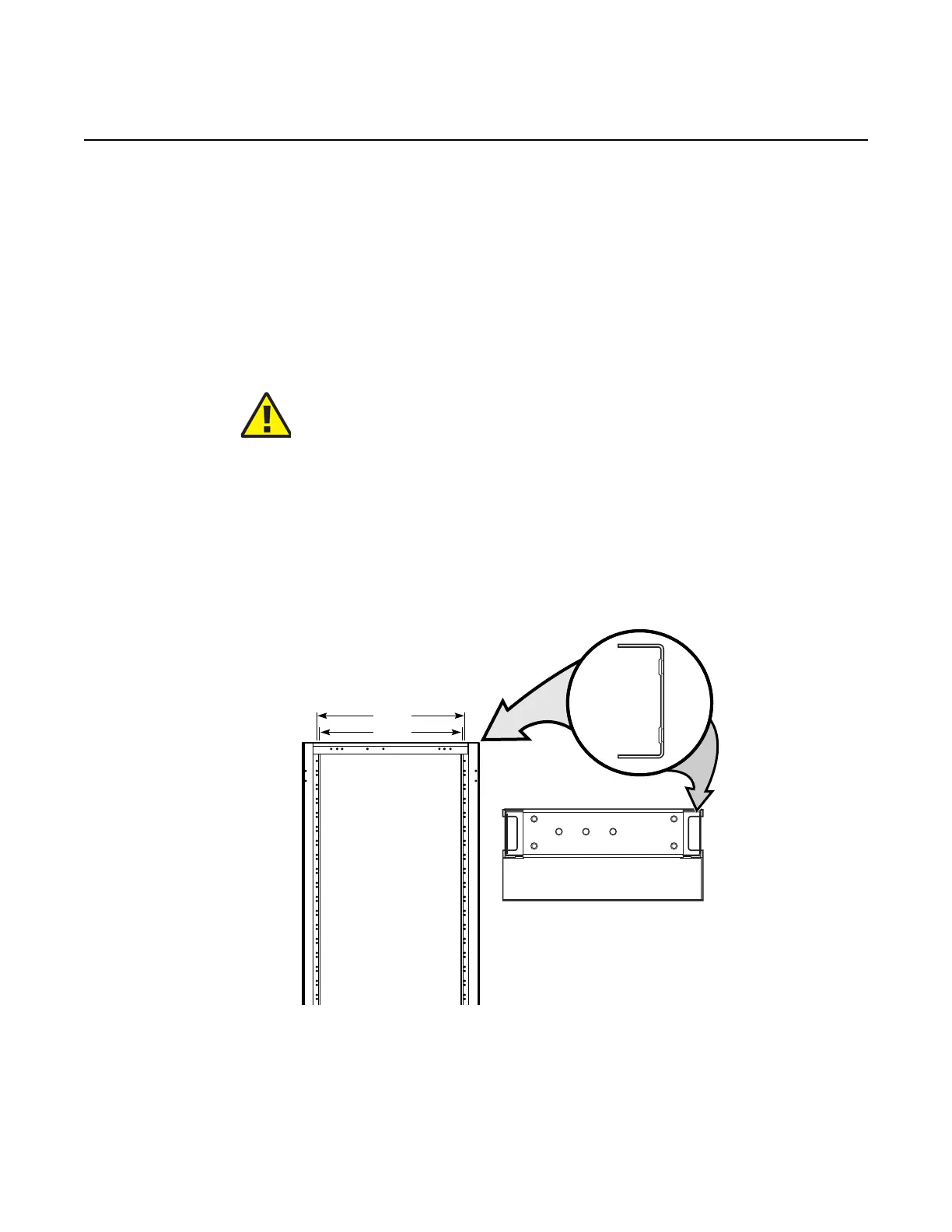

Figure 114 19 in. EIA standard rack upright channel direction for horizontal
mount for 7360 ISAM FX-8
Caution 1 — For horizontal mount of the 7360 ISAM FX-8 in an
EIA standard 19 in. rack, the open channel of uprights should
face toward the shelf wall as shown in Figure 114. The reverse
configuration of the closed wall facing the shelf will impair
thermal performance and is not supported.
Caution 2 — The 7360 ISAM FX-8 vertical shelf mount kit must
be used in a vertical mount installation to meet NEBS preferred
airflow specifications (air flows in the front, and out the rear of
the shelf).
