Fiber optic cable management in the
7360 ISAM FX-4 shelf
384
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

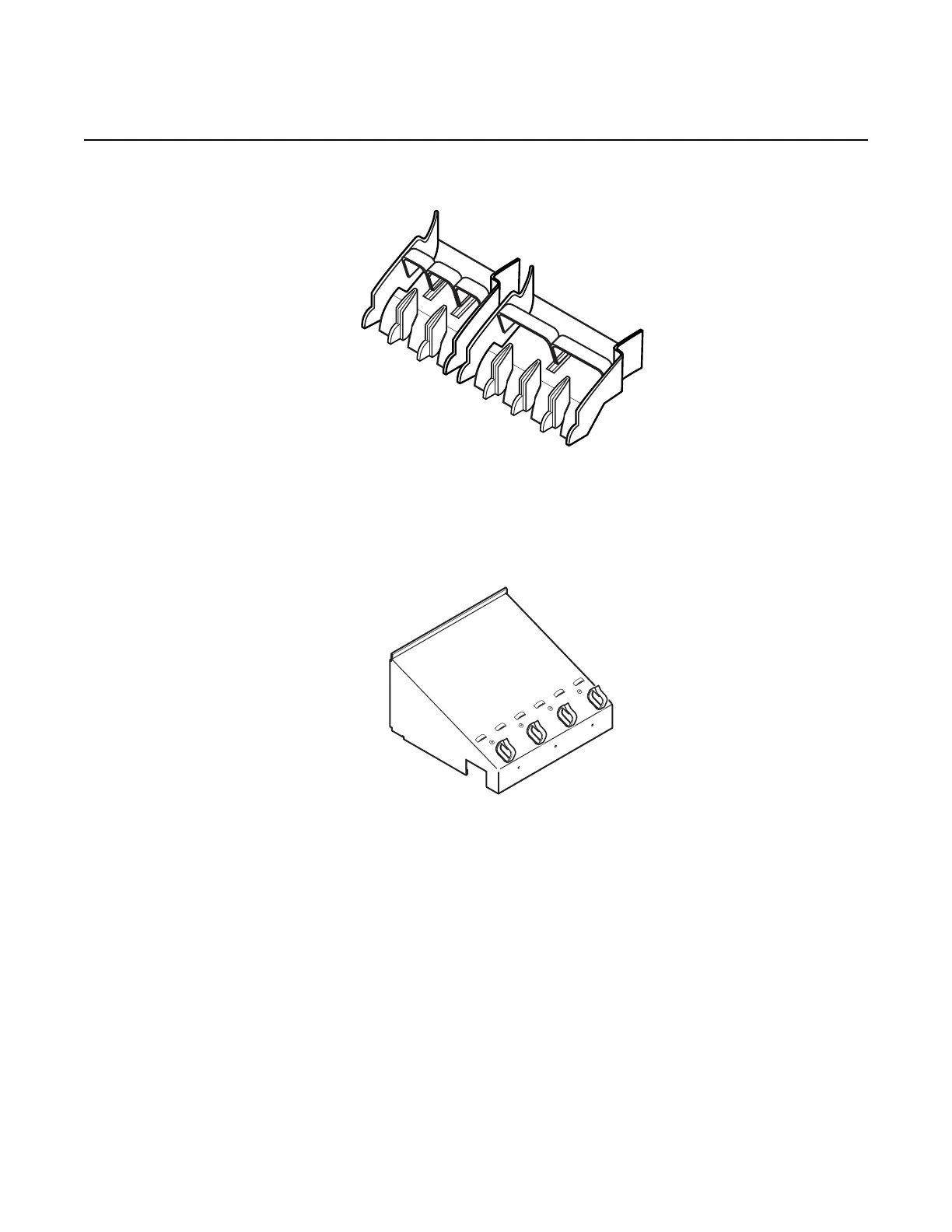

Figure 224 Fiber management kit for 7360 ISAM FX-4
Figure 225 shows a view of the 7360 ISAM FX-4 baffle for vertical mount options.
Figure 225 Baffle for 7360 ISAM FX-4 vertical rack mounting configurations
20.2 Managing fiber optic cables
This section describes how to fiber optic cables for NT cards and LT cards in the
7360 ISAM FX-4 shelf.
