9 Once the heat and fiber baffle kit is mounted and secured to the top of the shelf, attach the
fiber management bracket to the cable management bracket of the 7360 ISAM FX-16 shelf
using two washers and one screw in an upward-facing position for each of the six mounting
holes. See Figure 31 for an overall view of the fiber management bracket, and Figure 32 for
the installation of the fiber management bracket.

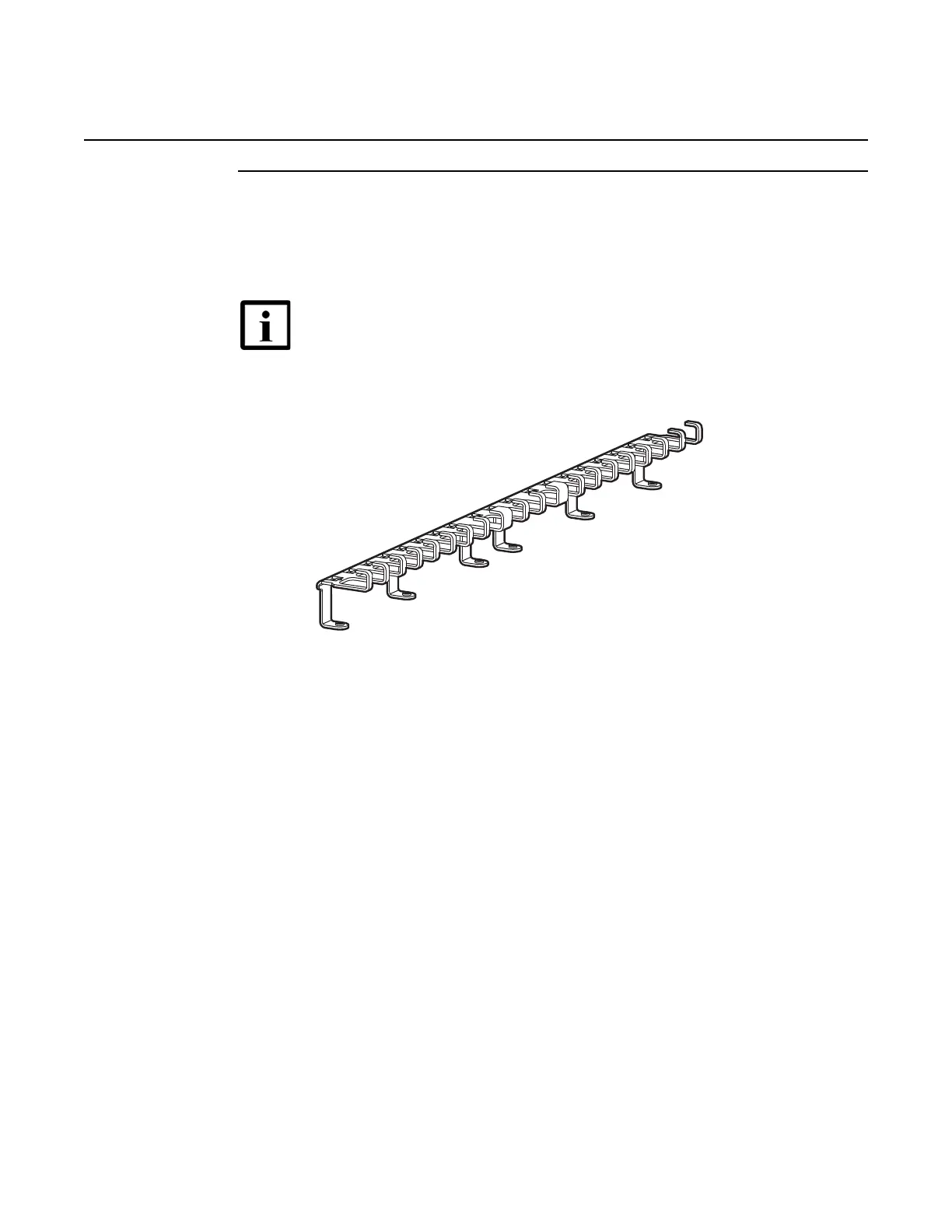

Figure 31 Fiber management bracket
Note — Once the fiber management bracket has been attached to the
cable management bracket, the fiber management guide can be
installed. See Chapter 8 “Fiber optic cable management in the
7360 ISAM FX-16 shelf”.
