ANSI Hardware Installation Manual Fiber optic handling and acceptance criteria
Issue: 09 3HH-12893-AAAA-TCZZA 461
DRAFT

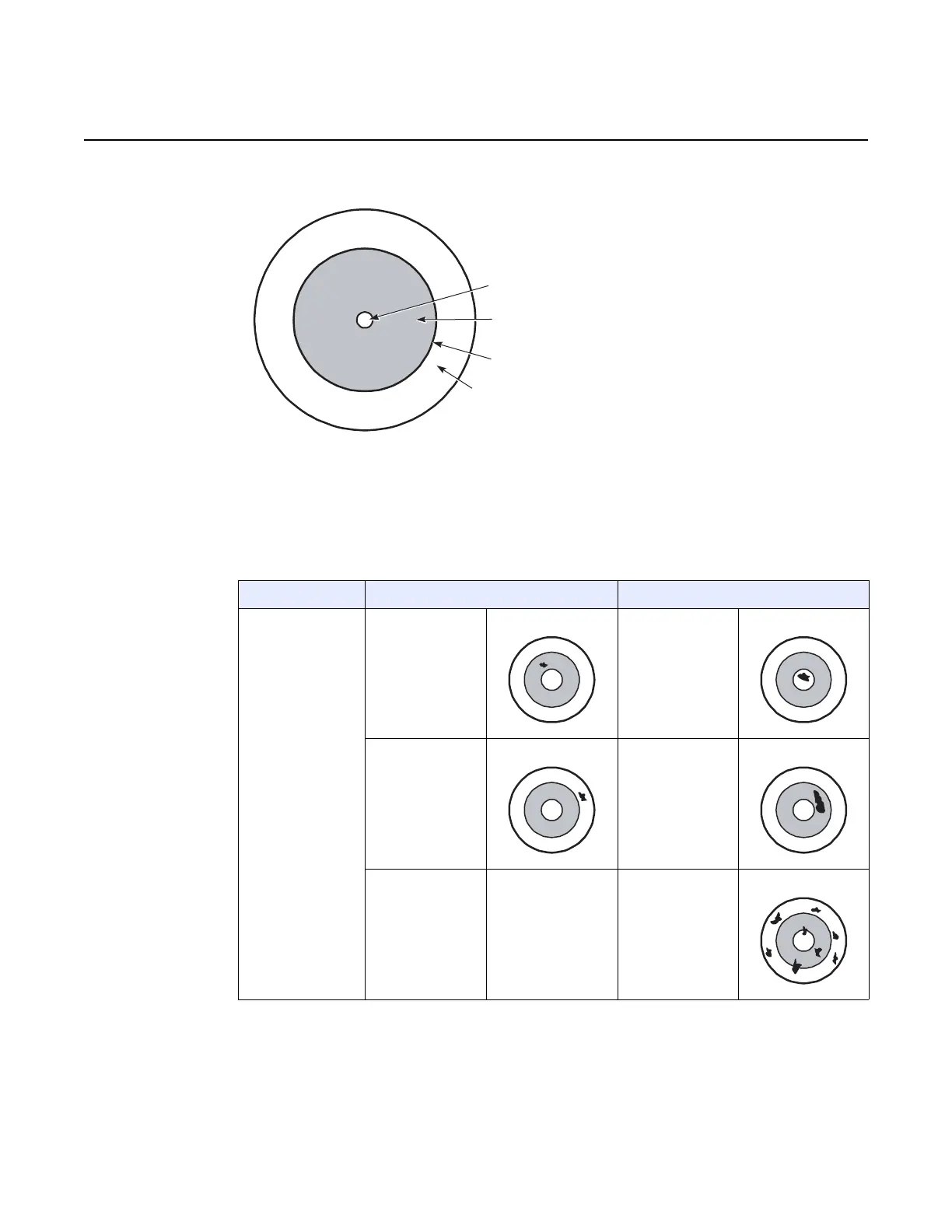

Figure 262 Preferred condition of fiber optic end-face
Table 32 describes acceptable and unacceptable conditions.
Table 32 Acceptable and unacceptable conditions for fiber optic end-fac-
es
Criteria Acceptable Unacceptable
Contamination,
particles, or pits in
single-mode fiber
Contamination
within cladding
zone, but outside
core zone
Diameter is
<5µm
Contamination in
core zone
Contamination in
contact zone
Diameter is
<10µm
Contamination
(large particle) in
cladding zone
Diameter is
>10µm
— — Removable
contamination (oil)
(1 of 2)
Core and core zone
Cladding zone
Epoxy zone
Contact zone
FGU184
