ANSI Hardware Installation Manual 7360 ISAM FX-4 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 353
DRAFT
9 Verify that the fans spin.
10 STOP. This procedure is complete.
Procedure 78 To disconnect the power cables
Use the following procedure when the power cables need to be disconnected on 7360 ISAM FX-4.
1 Before disconnecting the power cables, ensure that power to the cables have been
disconnected.
2 Disconnect the battery cables BAT A and BAT B
3 Disconnect the BATRET cables RET A and RET B
4 STOP. This procedure is complete.
18.6 CO external alarm connector

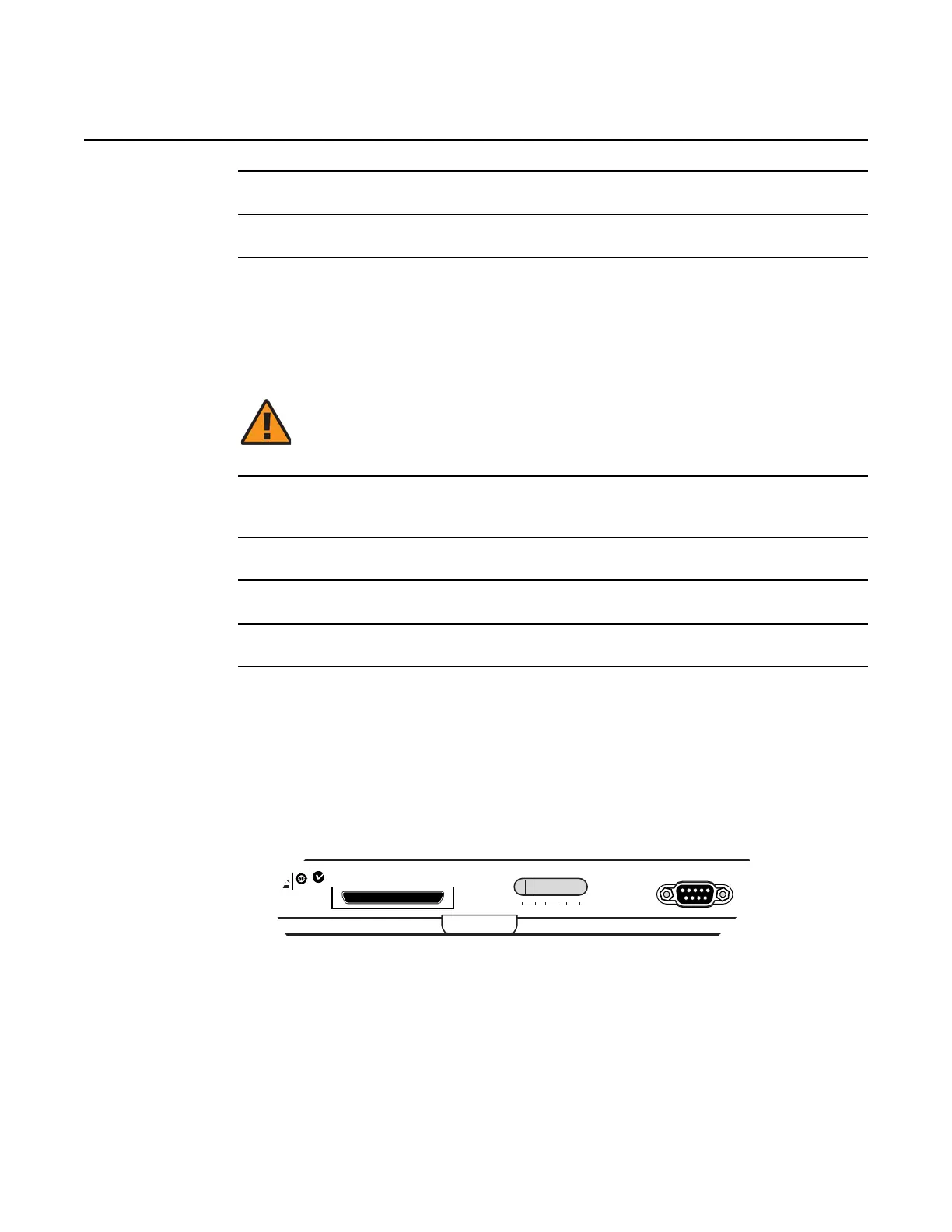

Figure 198 shows the external interfaces on the 7360 ISAM FX-4 shelf.
Figure 198 External interfaces on 7360 ISAM FX-4
The 7360 ISAM FX-4 requires a 50-pin micro DSUB connector with an angled head
for the CO external alarm connection. A cable assembly is available from Nokia (sold
separately), that can be used with the 7360 ISAM FX-4, as shown in Figure 199. See
Figure 198 for the location of the CO external alarm connector on the GFC card.
Warning — If the following sequence is not followed exactly, there can
be a possible fire hazard.
TOD/IHZ
BAT A
Remote CraftBITSExternal Alarms
NTA GND NTB
N594
21955
To Next Page
