ANSI Hardware Installation Manual Installing a 7360 ISAM FX-4 shelf

Issue: 09 3HH-12893-AAAA-TCZZA 321

DRAFT

5 Install the pre-assembled shelf horizontal mounting bracket and air intake baffle/drip tray

onto the bottom of the 19 in. rack as shown in Figure 176.

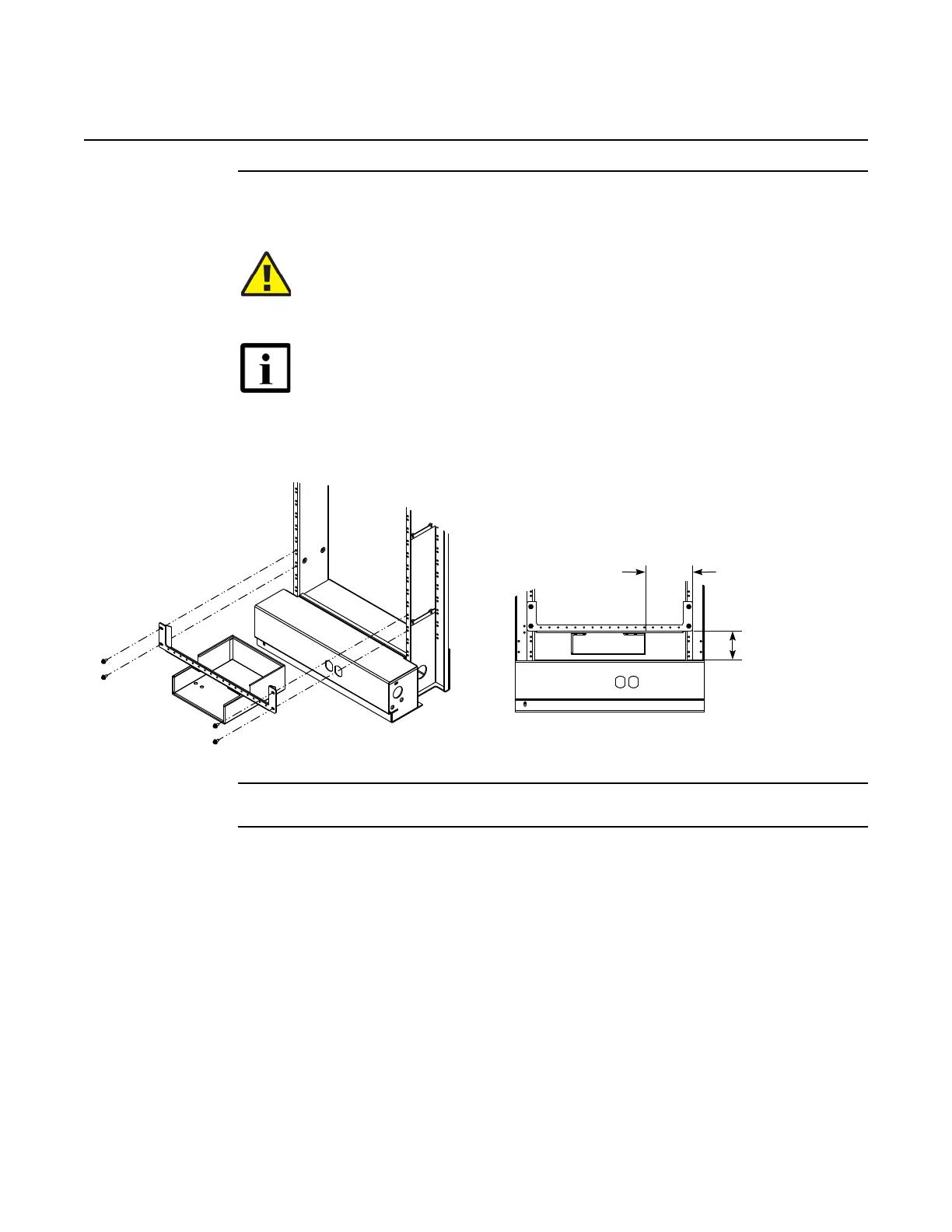

Figure 176 Mounting the 7360 ISAM FX-4 pre-assembled shelf mounting bracket and air intake

baffle/drip tray in a 19 in. rack

6 Remove and discard the top mounting bracket and screws that were shipped with the shelf.

7 Remove the bottom mounting bracket, screws, and washers and retain them to re-install

later, see Figure 177 for the locations.

Caution — The pre-assembled shelf mounting bracket and air intake

baffle/drip tray is required in the bottom position of each installed

7360 ISAM FX-4 shelf in a rack.

Note — Torque the mounting bracket screws to 28 in. to 30 in. per lbs

after attaching the air intake/drip tray assembly to the rack.

(138.19)

(85.3)

23571
