Nokia 7360 ISAM FX-16 - Figure 157 Laser Classification Label; Figure 158 NTIO Slot

To Next Page

To Previous Page

Installing cards in the 7360 ISAM FX-8 shelf

292

ANSI Hardware Installation Manual

3HH-12893-AAAA-TCZZA Issue: 09

DRAFT

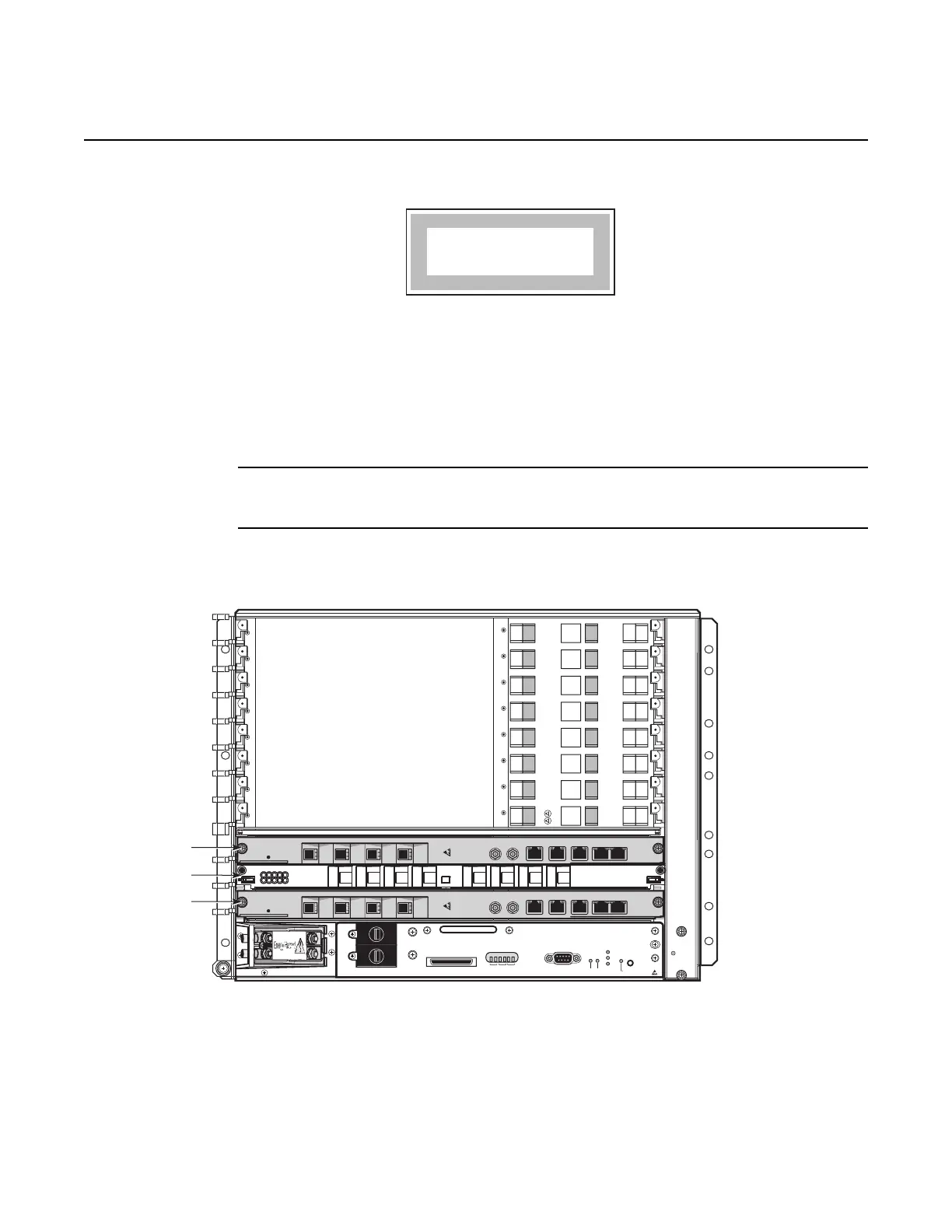

Figure 157 Laser classification label

Procedure 61 To install NTIO cards

Each shelf containing one or two redundant NT boards can have an NT I/O applique. The NT I/O

applique is a single board which is installed in the NT I/O slot between the two NT slots of the FX-

8 shelf.

1 Remove the NT I/O board from its ESD protective bag. Make sure to wear the antistatic wrist

strap.

2 Insert the NTIO board in the NTIO slot; see Figure 158.

Figure 158 NTIO slot

CLASS 1 LASER PRODUCT

18256

TOD/IHZ

24502

FAN

NTA

NTIO NTB 01 02 03 04 05 06 07 08

7360 ISAM FX-8

Energy Hazard

Critical

Alarms

ACO

BAT A

Remote Craft

BITS

External Alarms

Major

Minor

BAT B

7360 ISAM FX-8

B-40A

A-40A

NTA GND NTB

NT B

NT A

NTIO
