5.3 Installing a drip tray below a 7360 ISAM FX-16
shelf
In compliance with safety standards, a drip tray must be installed below each
7360 ISAM FX-16 shelf for protection from heat and falling particles that may cause
damage to the equipment.

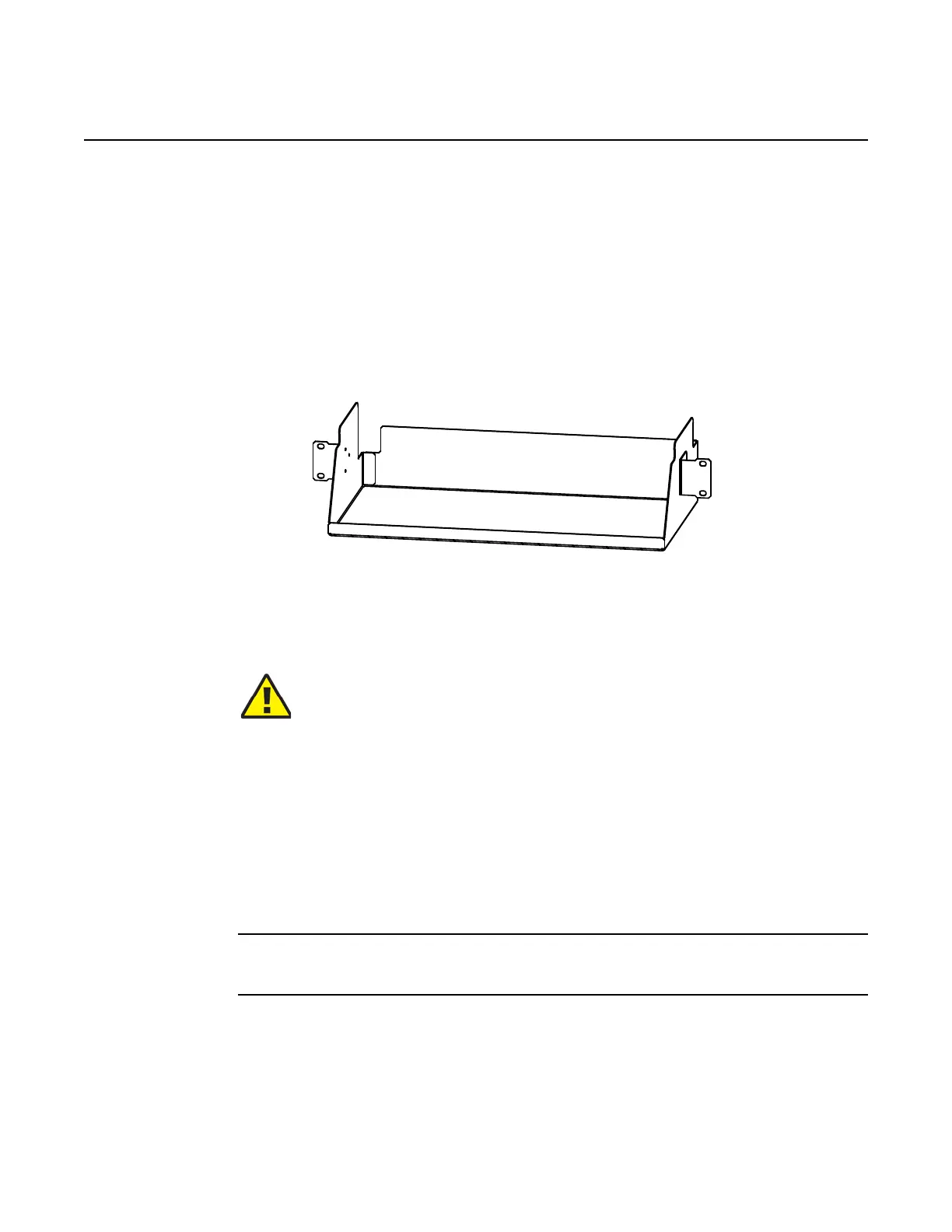

Figure 25 shows a view of the 7360 ISAM FX-16 drip tray.
Figure 25 View of drip tray for 7360 ISAM FX-16
The drip tray can be shipped factory installed in the rack, but can also be ordered as
a separate unit for installation or replacement on site.
Procedure 11 To install a drip tray below a 7360 ISAM FX-16 shelf
Use this procedure to install a drip tray or to replace a drip tray below an existing 7360 ISAM FX-
16 rack configuration.
1 Verify the drip tray type is correct for the rack configuration. See Figure 22 to verify the correct
installation position.
2 Remove the drip tray unit from its shipping packaging and inspect the part for damage. If
damaged, do not install the drip tray but notify the transportation carrier and Nokia
immediately.
Caution 1 — For safety reasons, it is critical that the spacing
between the shelf bracket and the drip tray bracket does not
exceed a distance of 2.36 in. (60 mm).
Caution 2 — Drip trays must be installed beneath each
7360 ISAM FX-16 shelf in a rack, including below the bottom
shelf of a rack when mounted on combustible flooring surfaces.
For example, carpet.
