ANSI Hardware Installation Manual Installing a 7360 ISAM FX-4 shelf

Issue: 09 3HH-12893-AAAA-TCZZA 325

DRAFT

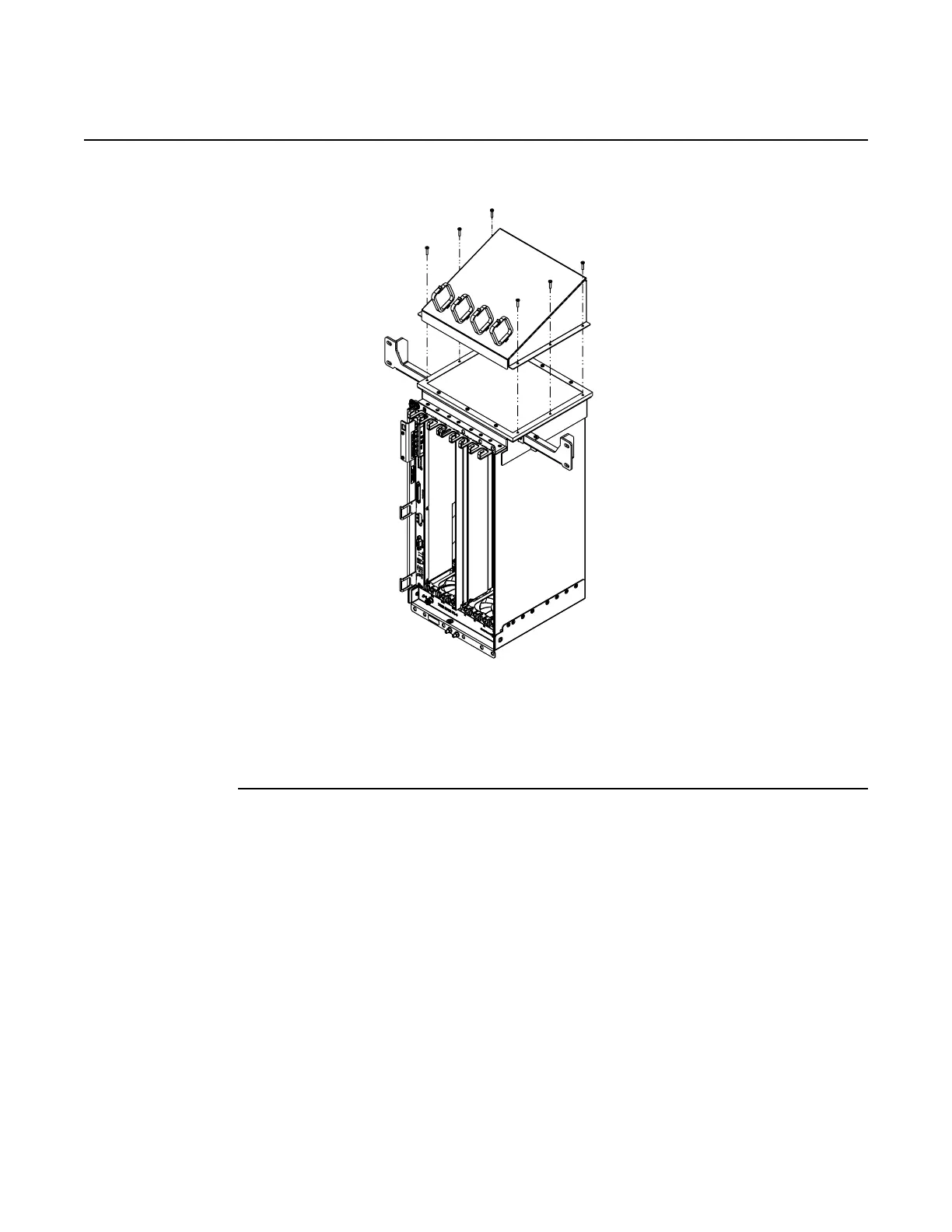

Figure 180 Mounting the 7360 ISAM FX-4 top baffle

Proceed to step 12 to complete the 23 in. rack installation.

Continue on to step 11 for the 19 in. rack installation.

11 Attach the bottom mounting bracket that was removed in an earlier step to the shelf horizontal

mounting bracket and the air intake baffle/drip tray assembly using the 12-24 × 1/2 in. (12.7

mm) screws. Ensure that the flange is facing down, and align the right side of the bracket to

the right side of the drip tray. See Figure 181.

23582
