ANSI Hardware Installation Manual Installing cards in the 7360 ISAM WM shelf
Issue: 09 3HH-12893-AAAA-TCZZA 425
DRAFT
23.6.2.2 Cards with optical fiber connectors
Observe the following.

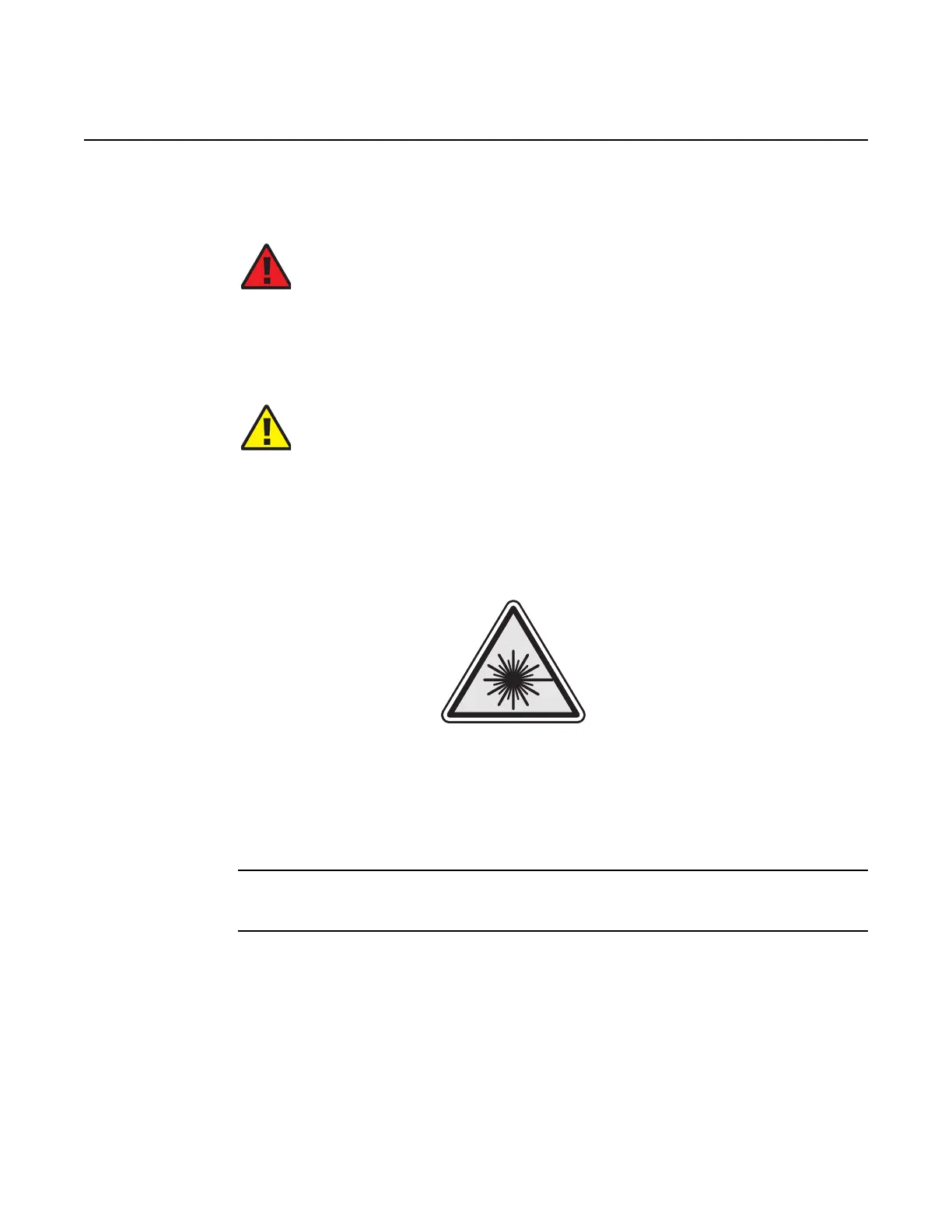

Figure 250 shows a laser caution label.
Figure 250 Laser caution label
Procedure 96 To install power cards
Each 7360 ISAM WM shelf can contain one power card, or up to a maximum of two power cards.
Proceed as follows to install a 7360 ISAM WM power card:
1 Remove the power card from its ESD protective bag. Make sure to wear the antistatic wrist
strap.
2 Insert the power card in the Power A slot of the of the 7360 ISAM WM, and if required, also
insert a second power card in the Power B slot of the 7360 ISAM WM; see Figure 251.
Danger — Risk of eye damage or skin burns by laser emission.
When installing optical cards or handling optical fibers, never
look inside connectors of cards or fibers when these are not
connected.
Put end caps on open connectors to protect against
unexpected emission.
Caution — Risk of damage by ESD when card is not
connected.
This card contains devices that are susceptible to damage
caused by ESD in unconnected circuit conditions.
Carefully follow ESD safety precautions.
