VCTCXO... command
Starts Voltage Controlled Temperature compensated oscillator tuning
Activation Status Bar Text
Alt, T, V Open Tuning VCTCXO dialog box
The next automatic selections are made when this tuning function is acti-
vated:
– Active Unit = RX
– Operation Mode = Continuous digital
– low band
– Channel 301
– Power level OFF
EEPROM DAC value is shown.
The measurement is started when ”meas” button is pressed and it is
executed in two steps:

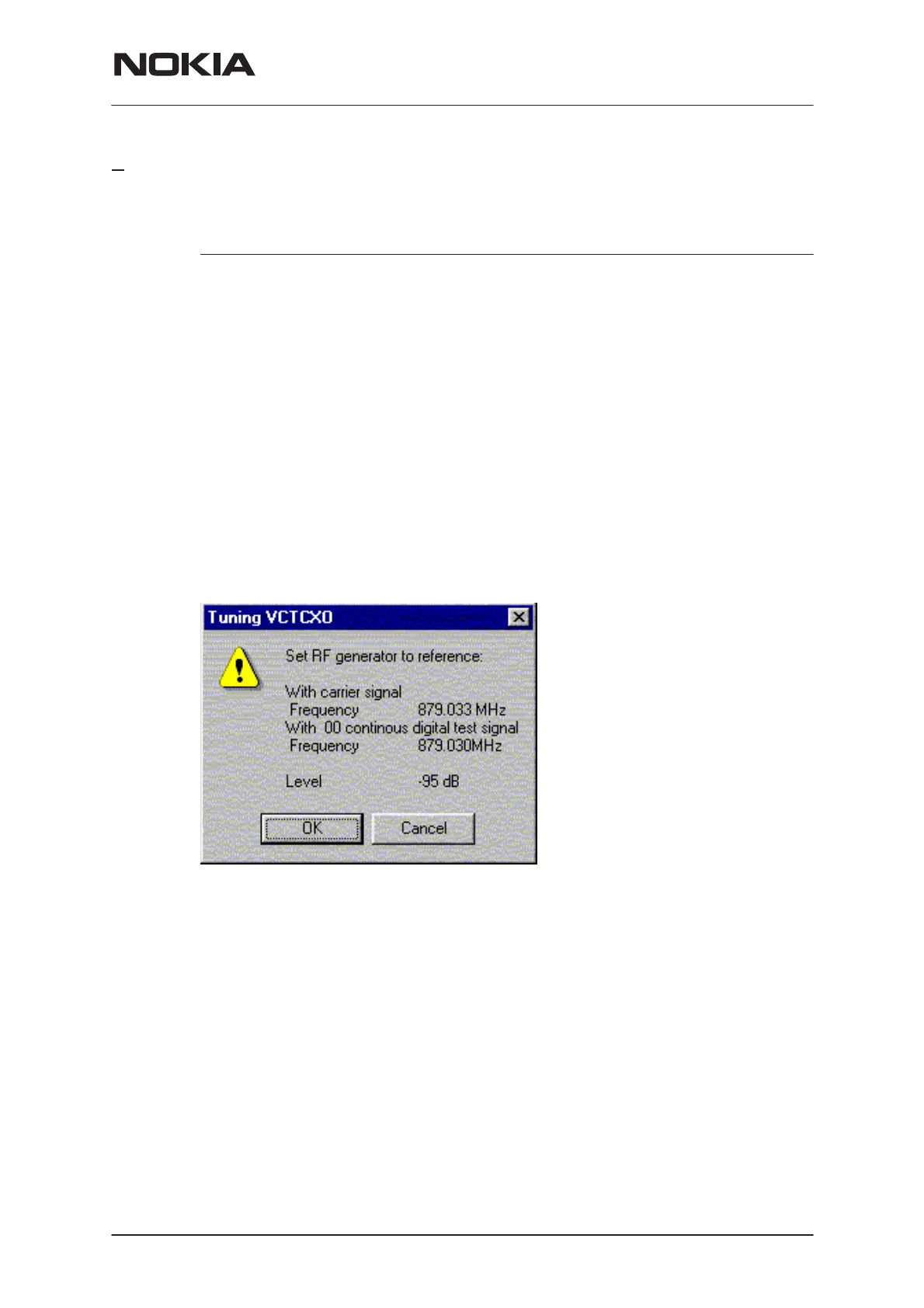

1. User is requested to put signal generator input level –95 dB and fre-
quency 879.030 Mhz
