Nokia NSW-5 Series

NSW-5
Disassembly and Troubleshooting Instructions
PAMS Technical Documentation
Page 9
Issue 1 10/00
 Nokia Mobile Phones Ltd.

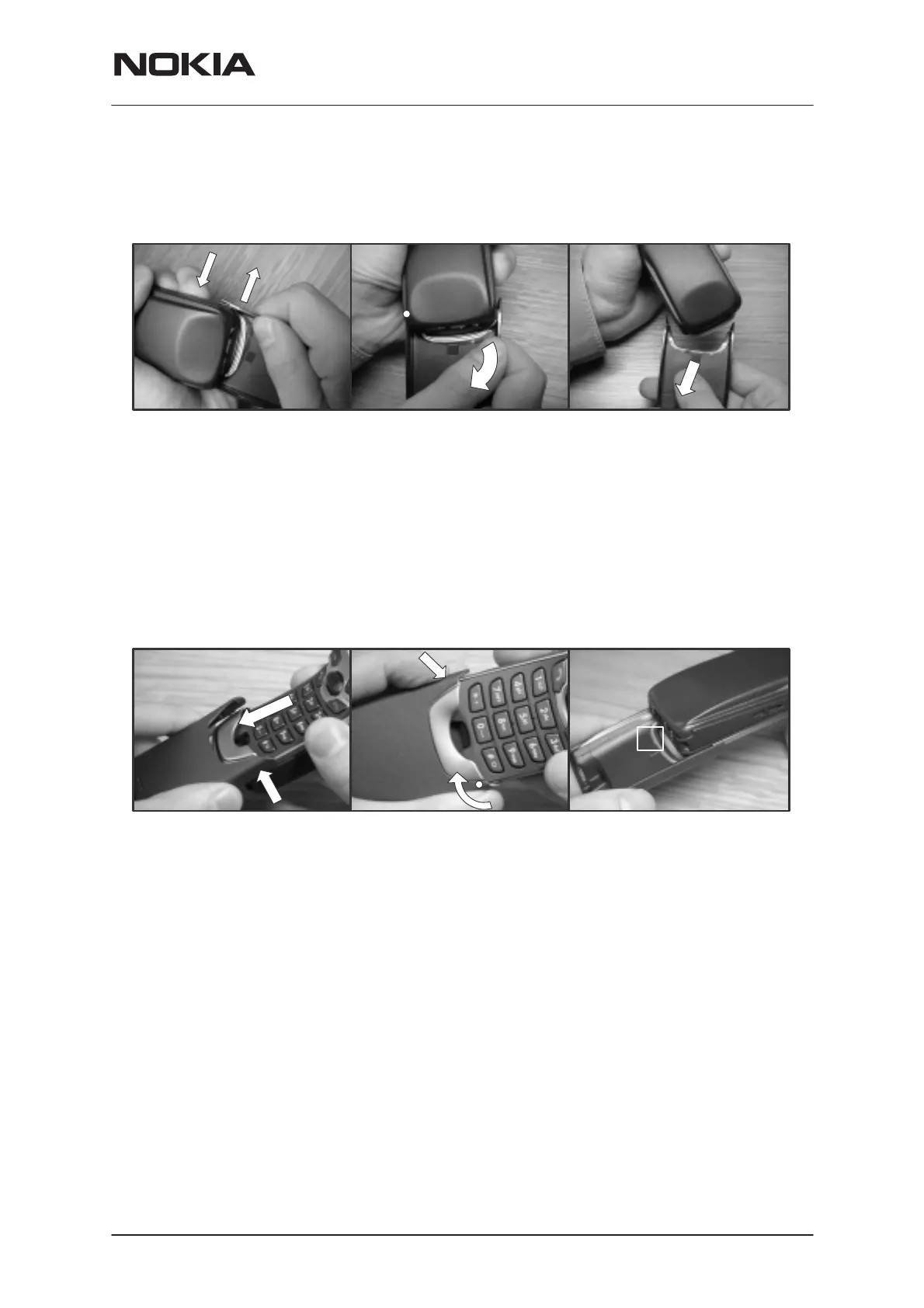

Removing Slide Cover Assembly
Fig.7.1
1. Hold the plunger of
the metal slide against
the phone
2. Bend open the Slide
Cover (plastic part
Fig. 7.2
Carefully twist the
slide cover off in the
direction indicated.
1
2
Fig. 7.3 Mind the middl
e
snap !
Mounting Slide Cover Assembly
Fig. 9.1
1.Make sure that the
metal slide is pulled
out up to the end stop
(a double click )
2. Place the Slide cov-
er on the metal slide
on the right hand side
(whre the mic connec-
tor is situated)
Fig. 9.2
1.Twist the Slide cov-
er on the metal slide.
Make sure that the
middle snap locates
properly (turn the
phone over to check)
2. Press the Slide
cover on the Metal
slide until it snaps
home.
Fig 9.3
Check that all three
snaps are in place.
1
3
2
1
2
1
2
