Slide disassembly

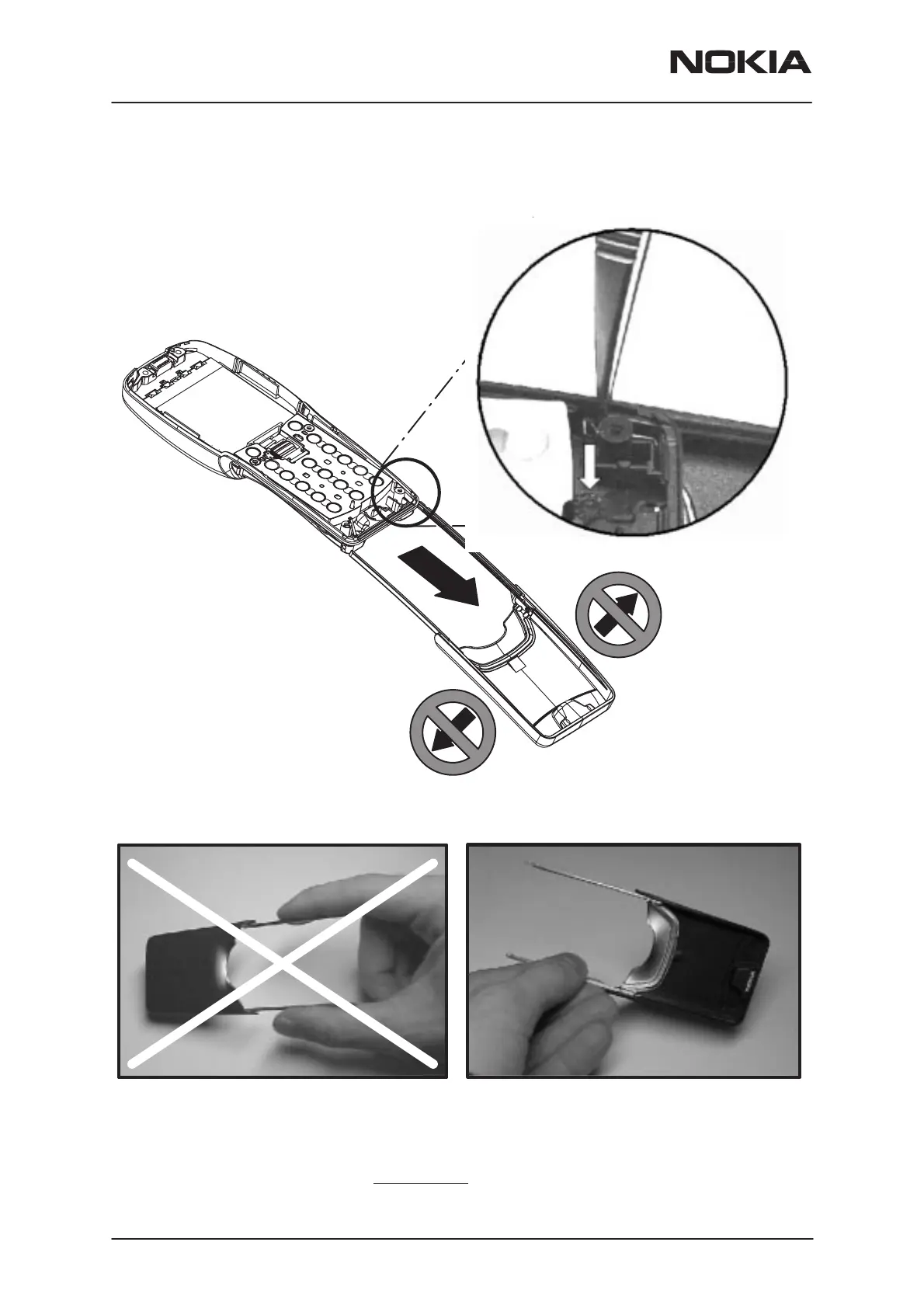

10. Use a pair of Tweezers to push
! DO NOT handle the Slide like this !ALWAYS handle the slide like this.
The Metal Slide is bent very easily when it is not protected by the phone.
Avoid bending of the Plungers at all times.
the Slide Stopper Spring in
the
direction indicated.
11. Simulateously with step
10:
Pull out the Slide past the
End Stop
! note: Pull out straight !
Handling the Slide Assembly:
To Next Page
