Nokia NSW-5 Series - Tuning With Covers Off

NSW-5
Tuning and Flashing Instructions
PAMS Technical Documentation
Page 7
Issue 1 10/00
 Nokia Mobile
Phones Ltd.
Tuning With Covers Off
1.
2.
3.
4.
5.
6.
7.
8.
9.

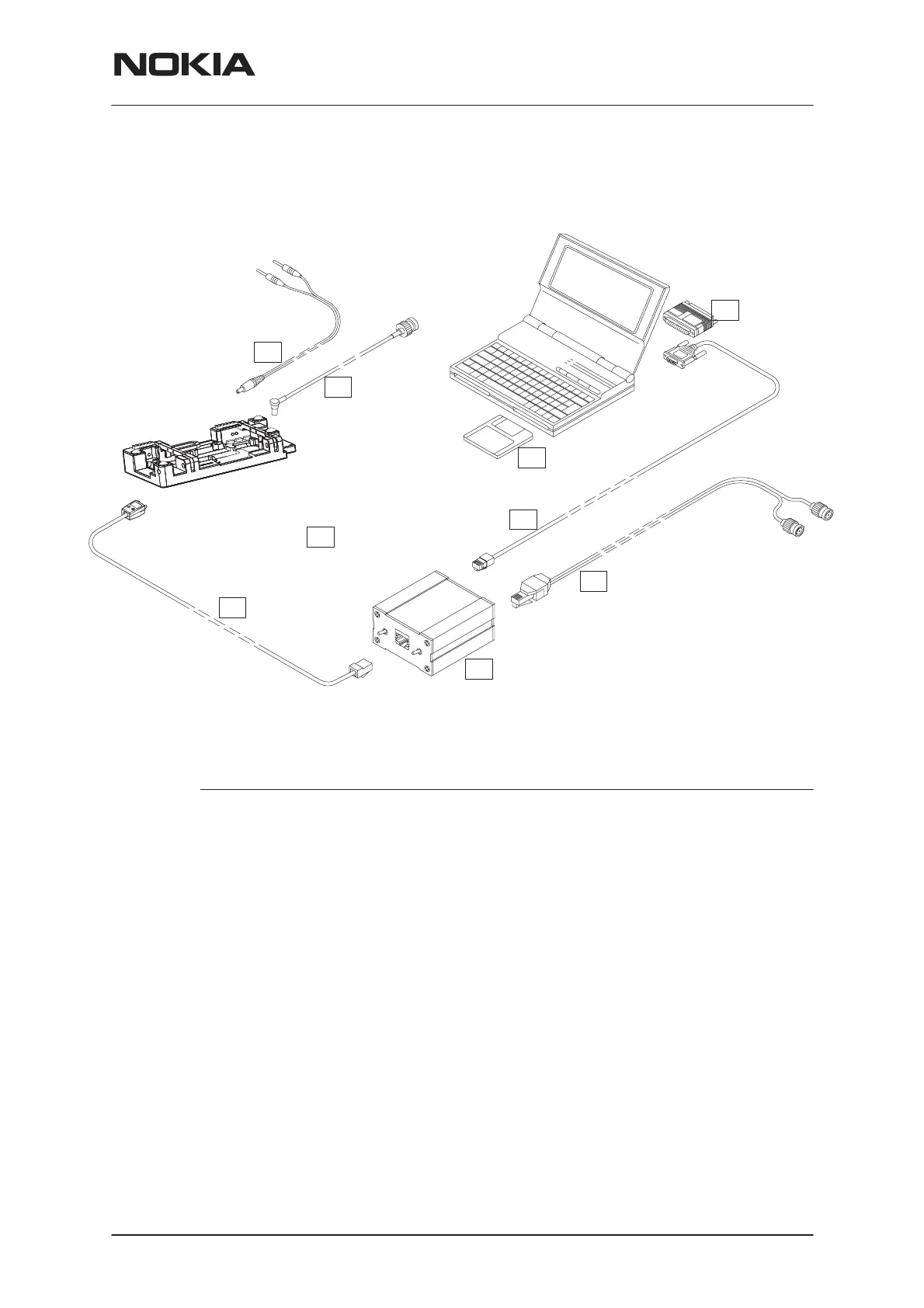

Item: Service accessory: Type Product
code:
1 Module Jig MJS-15* 0770180
2 Service Audio Box JBA-4 ** 0770094
3 DC Cable PCS-1 0730012
4 External Antenna Cable XRC-2 0730180
5 Service Cable SCH-5A 0730166
6 Service MBUS Cable DAU-9S ** 0730108
7 Audio Cable ADS-1 0730011
8 Software Protection Key PKD-1 0750018
9 Service SW diskette 3.5” 0775229
* The nominal operating voltage for MJS-15 is 3.6 V.
The supply voltage for MJS-15 must never exceed 5.0 V
** SCH-5A, JBA-4, and DAU-9S can be replaced with DAU-9M
