NSW-5
Service Software Instructions
PAMS Technical Documentation
Page 9
Issue 1 10/00
Nokia Mobile Phones Ltd.
Common Properties of the User Interface
This chapter describes how the User Interface CLF must appear to the
user.
The User Interface MUST be capable of being driven without the use of a
mouse, as the service engineer rarely has space on the bench to use a
mouse.

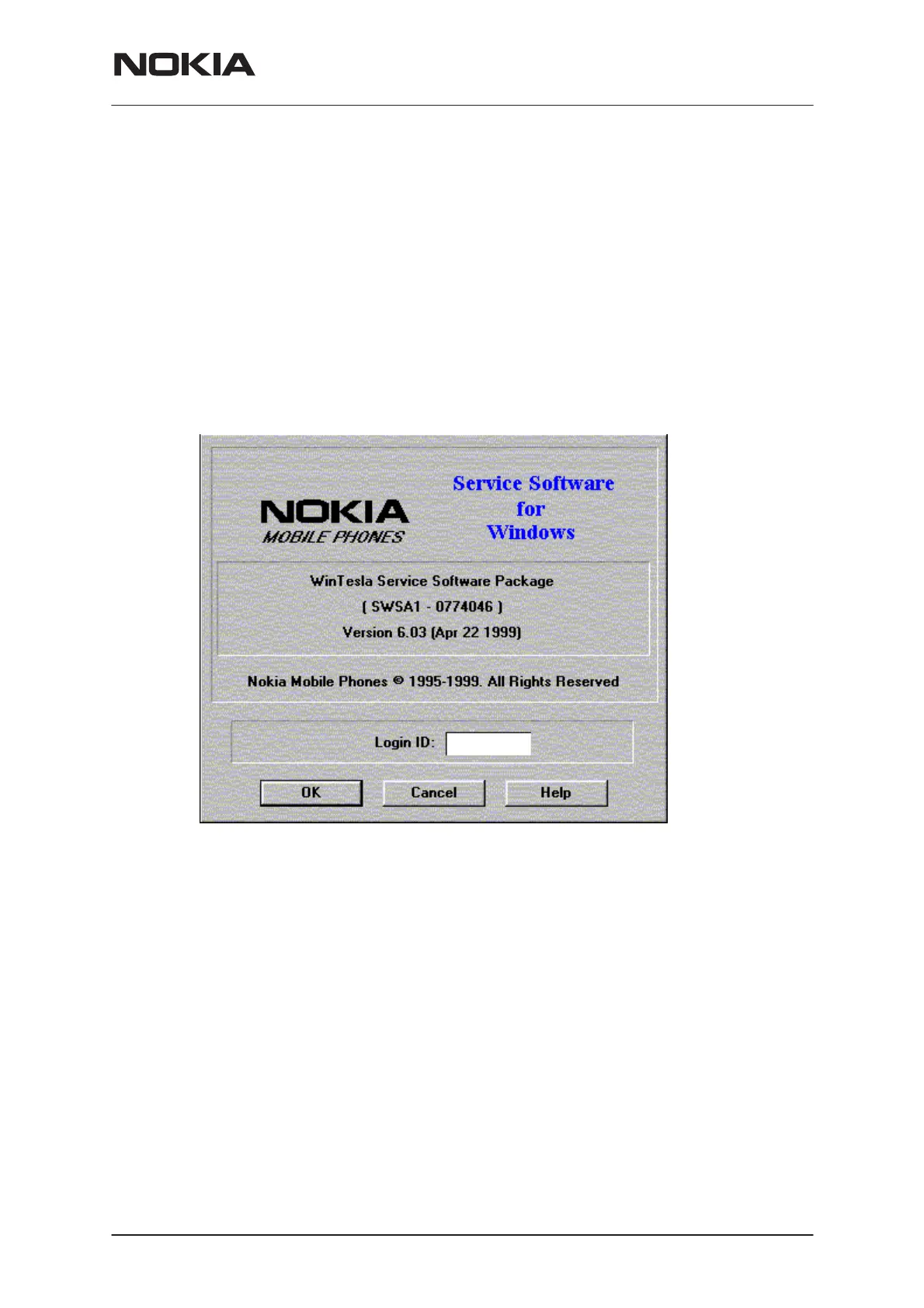

Login Dialog
When the Service Software application is invoked, by clicking on the Ser-
vice Software icon, the Login dialog box will be displayed on the screen.
Nokia logo and application name bitmap (–)
Displays Nokia logo and name of the application.
Application version static text (–)
Contains the name and version of the application.
Copyright notice static text (–)
Copyright is informed as: “Nokia Mobile Phones (c)
1995–1999. All Rights Reserved”.
Login Box edit box (–)
The user Login ID edit box, where the user enters his faultlog
user name. (See Faultlog User Guide)
OK button (default key)
The user name is stored in memory and the dialog box is
closed. When the dialog box is closed, the application starts.
