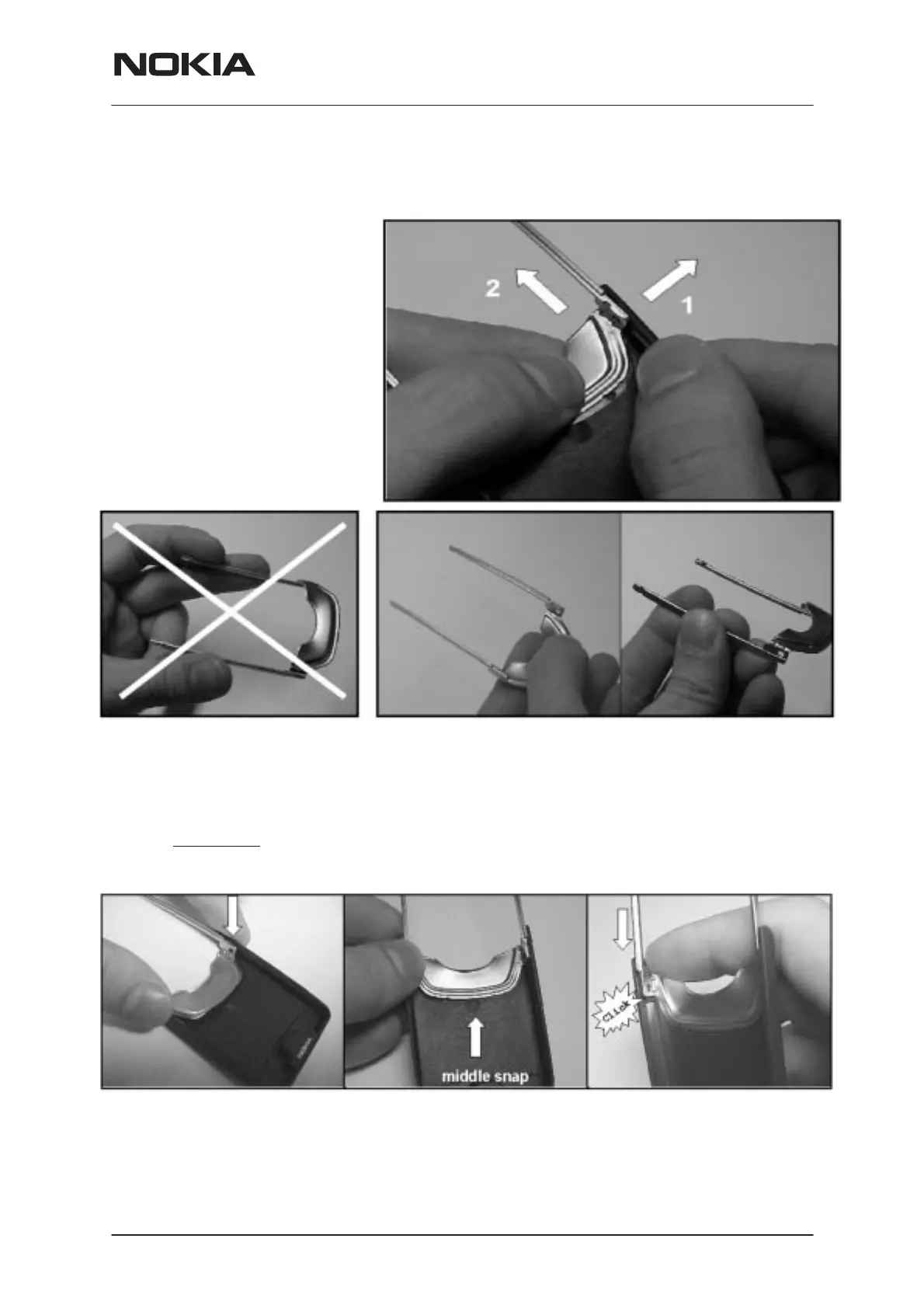

Metal Slide manipulation
! DO NOT !
Hold the Metal Slide like this.
The Metal Slide is bent very eas-
ily when it is not protected by the
phone. Avoid bending of the
Plungers at all times.
ALWAYS
Handle the Metal Slide like this.
The Metal Slide can be held by the Targa Bow or by one of
the Plungers.
Fitting a Metal Slide onto a Slide Cover:
12. Bend open one side of
the (plastic) Slide Cover
and take out the Metal
Slide
Push the Metal Slide onto
the snap on one side of
the Slide Cover.
Push down the other
side, but do not hit the
middle snap.
Push the Metal Slide onto
the snap on the opposite
side. A click should be
noticed.
