NSW-5
Non-Serviceable Accessories
PAMS Technical Documentation
Page 10
Issue 1 10/00
Nokia Mobile Phones Ltd.

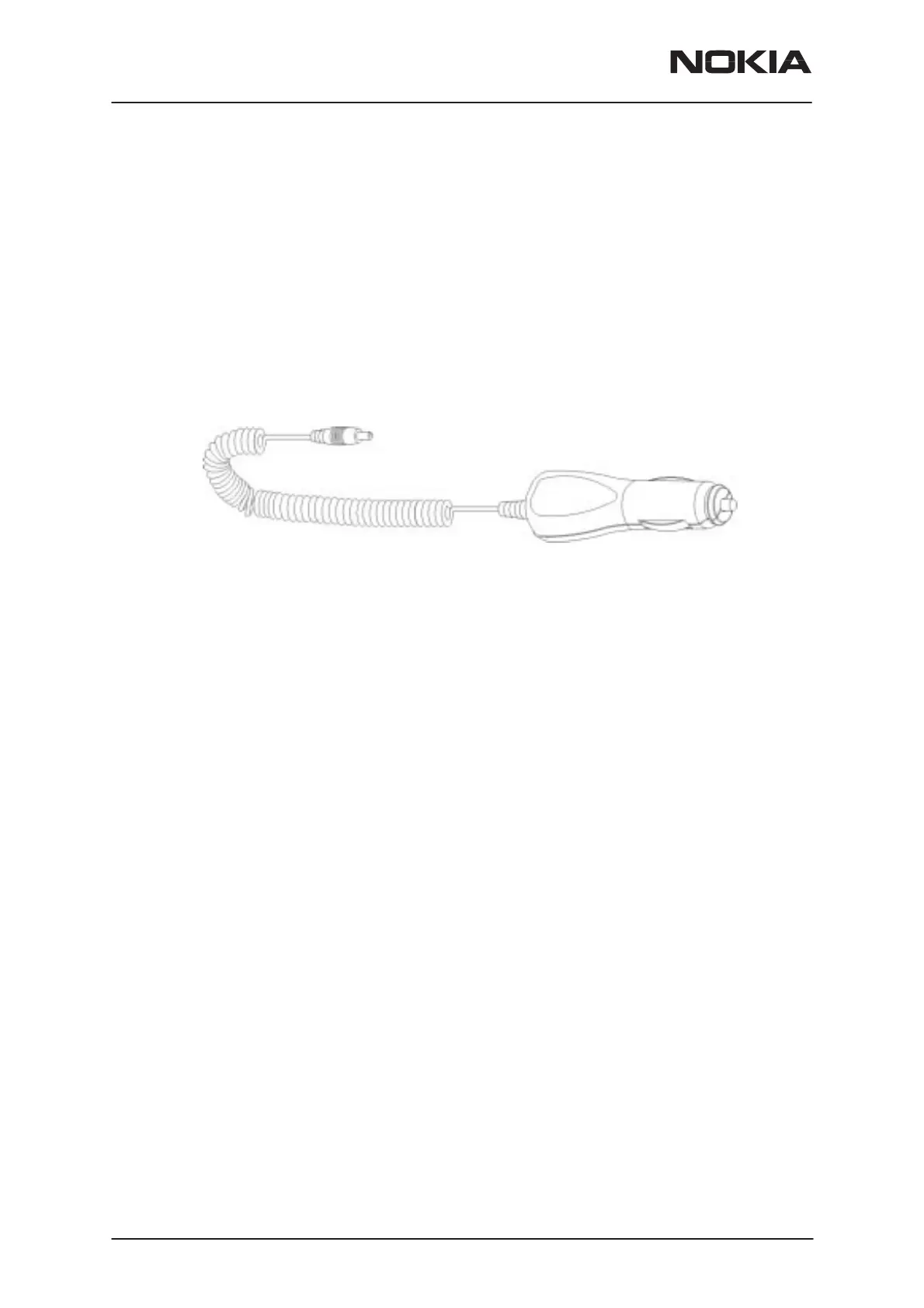

Cigarette Lighter Charger LCH–8
A green light indicates that the cigarette lighter charger is ready for charg-
ing. Check the charging status on the phone display. The main use is with
12V vehicle system. It is using 3–wire charging structure (controlled
constant voltage). It has internal output current limitation of 650mA.
The car battery connectors must perform reliable electrical connection to
the cigarette lighter socket.
Product Code
Cigarette lighter charger LCH–8:
0675231
Specification
Output connectors: 3.5 mm DC plug, 3 pin.
Protection:
input fused, output current limit 650 mA
Voltage
• input:
10.8...32 V
• output: The output voltage is controlled by the phone via a 3rd wire.
