NSW-5
Service Tools
PAMS Technical Documentation
Page 8
Issue 1 10/2000
Nokia Mobile Phones Ltd.
Module Jig MJS-15
The MJS-15 jig is designed for testing/repairing the engine separately, en-
gine mounted with light guide assembly or /and with keymat.
Product Code
Module Jig MJS-15: 0770180

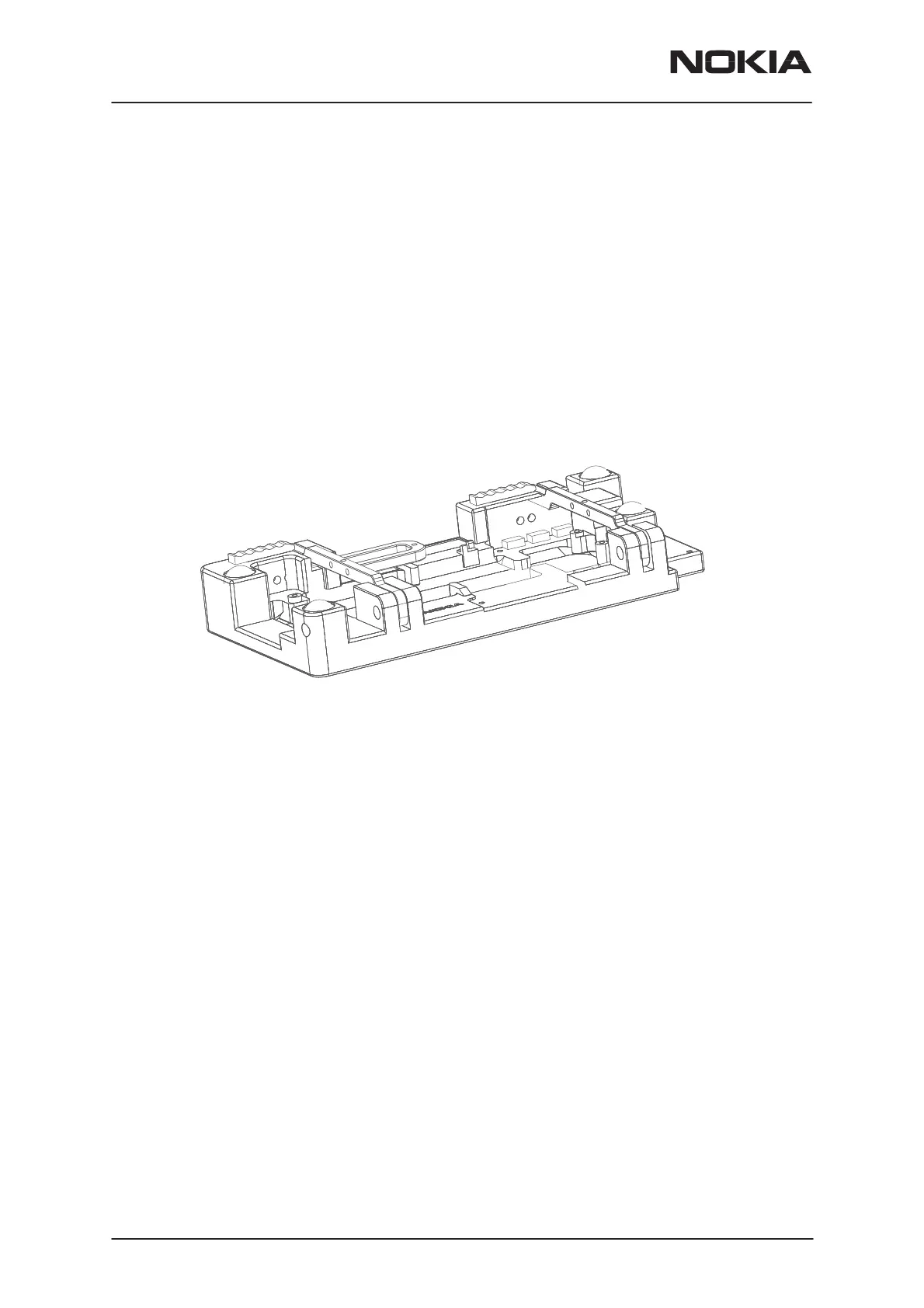

View of MJS-15
Connect the external antenna cable XRC-2, service Cable SCH-5A, and
the DC-Cable PCS-1 to the MJS-15 jig.
The service cable SCH-5A can be replaced by the DAU-9M cable.
Note: The nominal supply voltage for MJS-15 is +3.6V.
The supply voltage must not exceed +5.0V.
