Audio Cable ADS-1
Audio cable is an adapter routing AF signals (MIC/EAR) from 8 pin
modular connector to two BNC connectors. It is used to connect JBA-4,
SCH-5A and DAU-9S.
Product code
Audio Cable ADS-1: 0730011

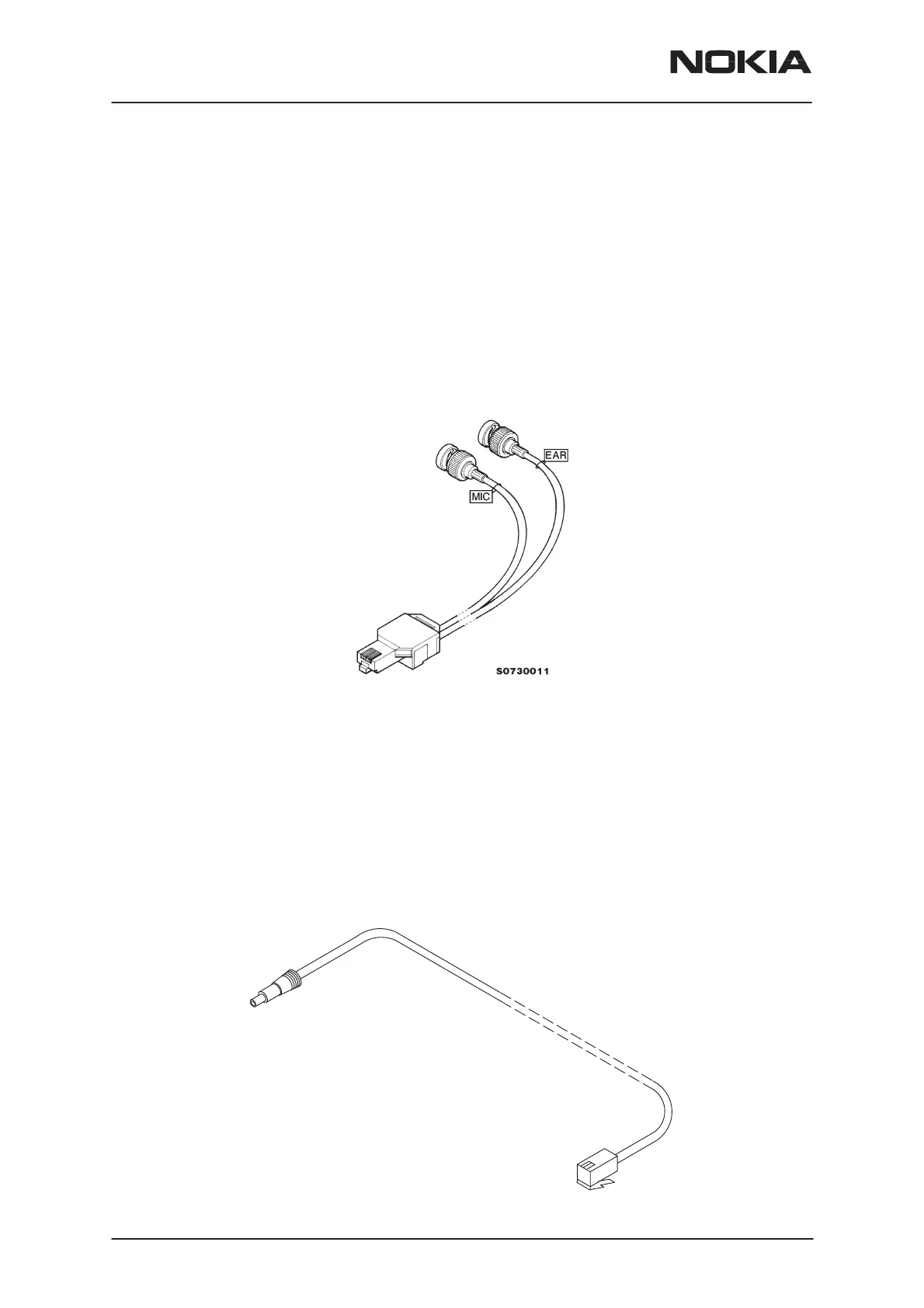

View of ADS-1
DC Cable PCC-1
The DC Cable PCC-1 is used to connect TDF-4 and FLA-5.
Product Code
DC Cable PCC-1: 0730053
View of PCC-1
