NSW-5
Service Software Instructions
P
AMS T
echnical Documentation
Page 37
Issue 1 10/00
Nokia Mobile Phones Ltd.

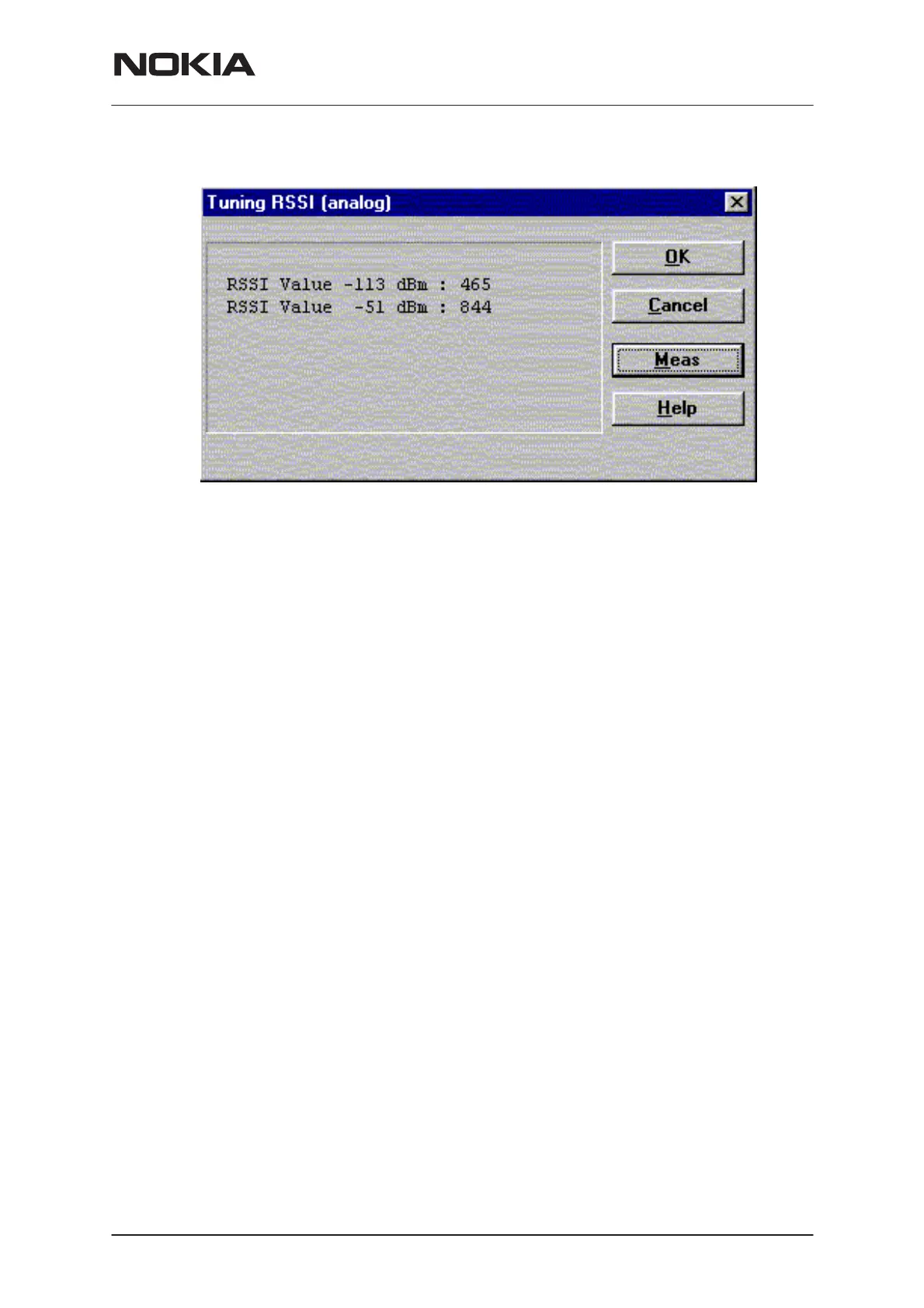

RSSI analog tuning
dialog has following items:
RSSI value list box
DAC values is shown
Meas button (AL
T+M):
The measurement can be started by pressing this button.
OK button (ENTER):
Dialog is closed and tuning
is saved
to phone.
Cancel button (ESC):
Dialog is closed and tuning
is not saved
to phone.
Help button (Alt+H):
Opens context sensitive help.
118
120
